PLC Splitter Cassette Type Features
- Low insertion loss and high return loss
- PDL automatic screening system(Ultra low PDL is available)
- High reliability and stability
- Connector can up to grade B
- 100% 3D tested by Daisi and Sumix
- High-low temperature cycle test
- 100% test before delivery
- FTTH Cabling solution could be design

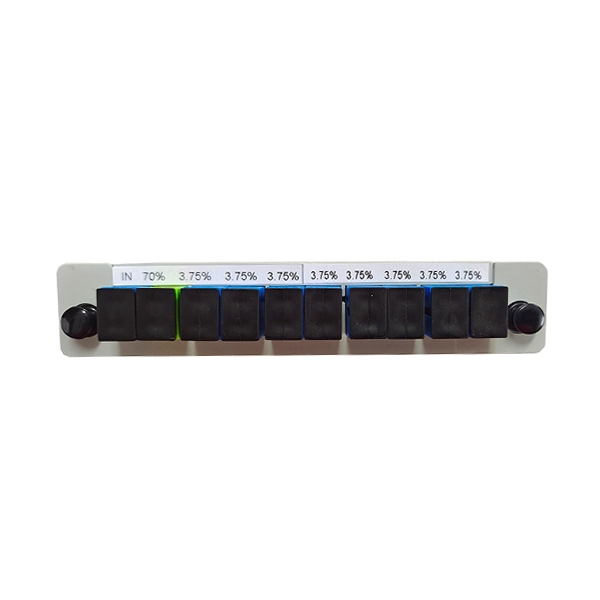

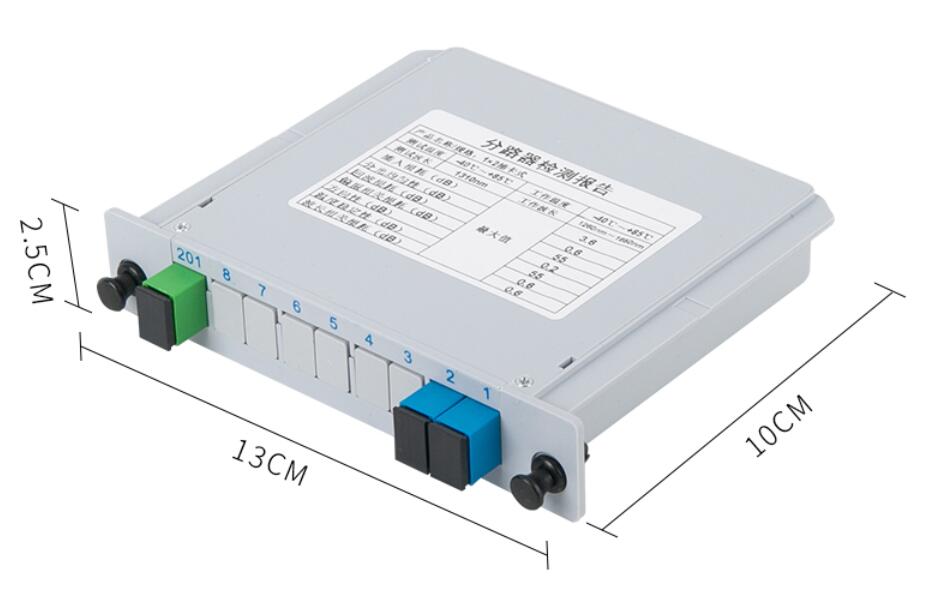

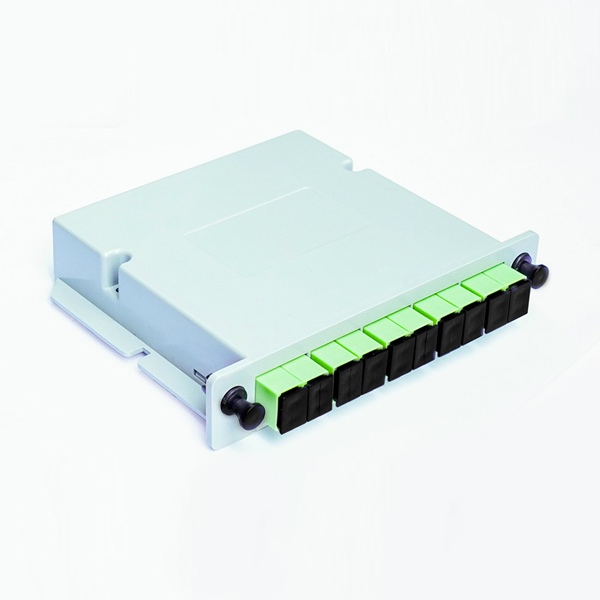

LGX Box module size: 130*100*25mm

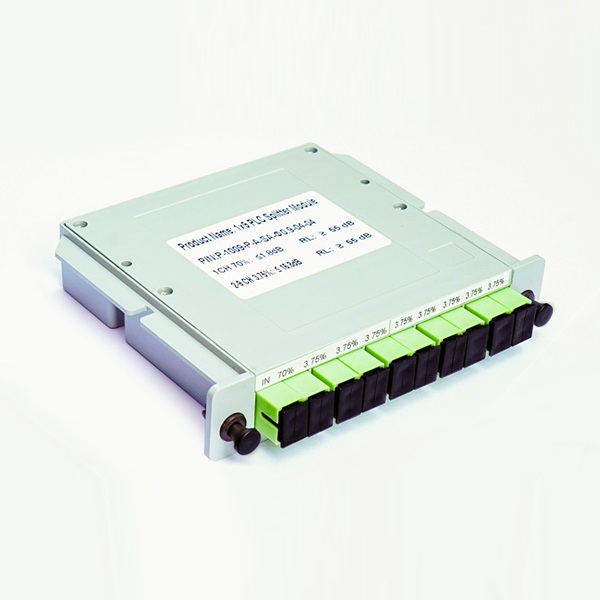

The splitter 1×2, 1×4, 1×8, 1×9 with SC or 2×2, 2X4, 2X8 series use the same size of LGX module, only change the front adapter ports interface and marks.There will be stickers with product details, optical performances for your record.
PLC Splitter Cassette Type Specification
| Split ratio (%) | 75/25 | 67/33 | 50/50 | 5/95 | 85/15 | 80/20 | 60/40 | 40/60 | ||
| Operating wavelength (nm) | 1260-1650 | |||||||||
| Fiber type | G657A or customized | |||||||||
| IL max(dB) | channel 1 | 1.9 | 2.5 | 3.9 | 16.3 | 1.7 | 1.8 | 2.8 | 4.6 | |
| channel 2-5 | 14.8 | 13.1 | 10.5 | 7.5 | 16.5 | 15.1 | 12.0 | 9.8 | ||
| IL uni(dB) | Channel 2-5 | 0.9 | 0.9 | 0.9 | 0.9 | 1.8 | 1.8 | 1.8 | 1.8 | |
| Return loss (dB) | ≥55 | |||||||||
| Directivity (dB) | ≥55 | |||||||||
| PDL (max.) | 0.2 | 0.3 | ||||||||
| Uniformity (max.) | 0.8 | |||||||||
| Wavelength dependent loss (dB) | ≤0.3 | |||||||||
| TDL (max.) | 0.5 | |||||||||
| Operating temperature | -40 ~+85 | |||||||||
| Storage temperature | -40 ~+85 | |||||||||
| Dimension (mm) / LXWXH | Bare fiber steel tube | 60x7x4 | ||||||||
| 900um steel tube | 60x7x4 | |||||||||
| ABS box module | 120x80x18 | |||||||||
