Description
PLC Splitter 1X4 Features
- Low Insertion loss
- Low PDL
- Compact Design
- Good channel-to-channel uniformity
- High Reliability and Stability
- Conforms to Telcordia GR-1209&GR-1221, ROHS
PLC Splitter 1X4 Specifications
1×N, 2XN PLC Splitter
| Split ratio | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | 1×128 | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 | ||||
| Operating Wavelength (nm) | 1260-1650nm | ||||||||||||||||
| Fiber Type | G657A1 or customer specified | ||||||||||||||||
| Insertion Loss (dB)S Grade | 4.2 | 7.6 | 10.7 | 14 | 17.2 | 20.8 | 24 | 4.4 | 8 | 11 | 14.6 | 17.8 | 21 | ||||
| Insertion Loss (dB) P Grade | 4 | 7.4 | 10.5 | 13.8 | 17 | 20.4 | 23.7 | 4.2 | 7.7 | 10.8 | 14.1 | 17.4 | 20.7 | ||||
| Loss Uniformity(dB) | 0.6 | 0.8 | 0.8 | 1.0 | 2.0 | 2.0 | 2.0 | 0.8 | 1.0 | 1.2 | 1.5 | 1.8 | 2.0 | ||||
| PDL(dB) | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 | 0.5 | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 | ||||
| Return Loss (dB) | 55 | ||||||||||||||||
| Directivity (dB) | 55 | ||||||||||||||||
| Wavelength Dependent Loss(dB) | 0.6 | 0.8 | 0.8 | 1.0 | 1.5 | 2.0 | 0.2 | 0.8 | 1.0 | 1.2 | 1.5 | 1.8 | 2.0 | ||||
PLC Splitter 1×4 Details

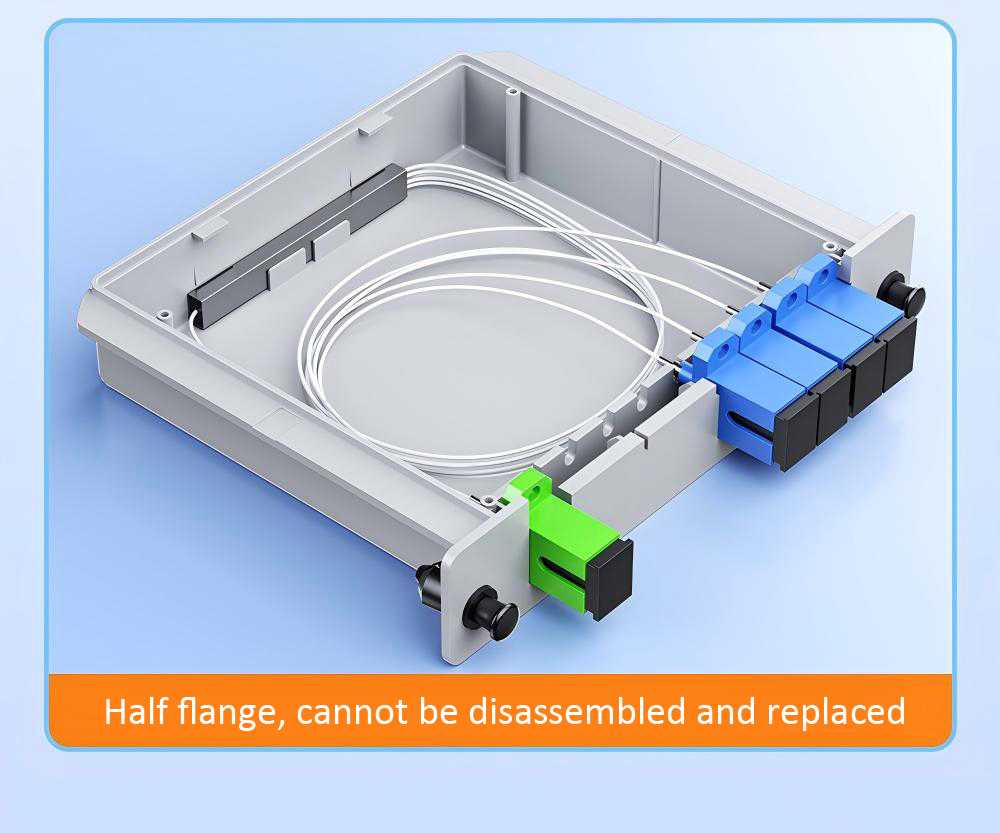

For cost effective, we can use half coupler instead of sc adapter for 1×4 fiber optic splitter module, which wil save a little matrial costs, see below:

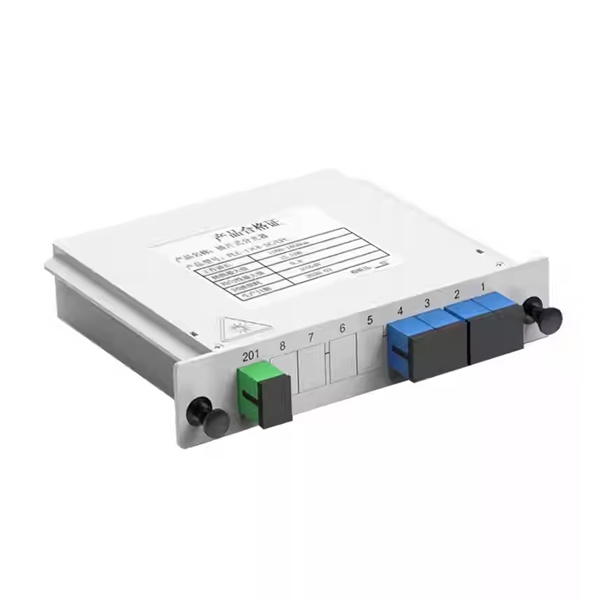

Yingda can adopt SC FC LC ST connectors, UPC APC polishing method, all ports that are not in use will be blocked with plugs to prevent dust from entering.

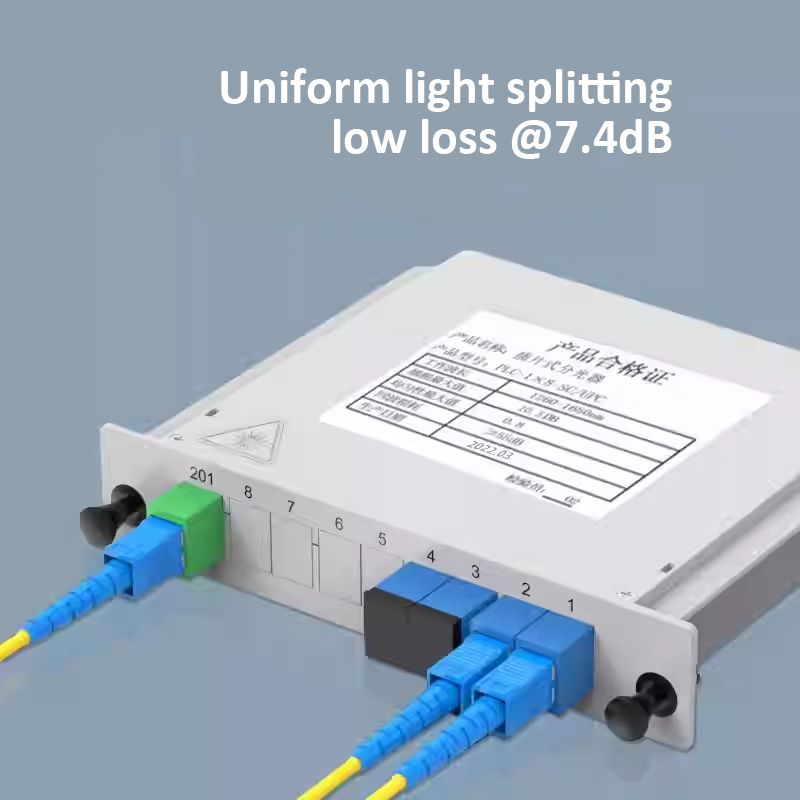

1×2 fiber optic splitter adopt high precise sc adapters for input and outputs, high return loss, durable performance use, low loss at 7.4dB loss each splitter.

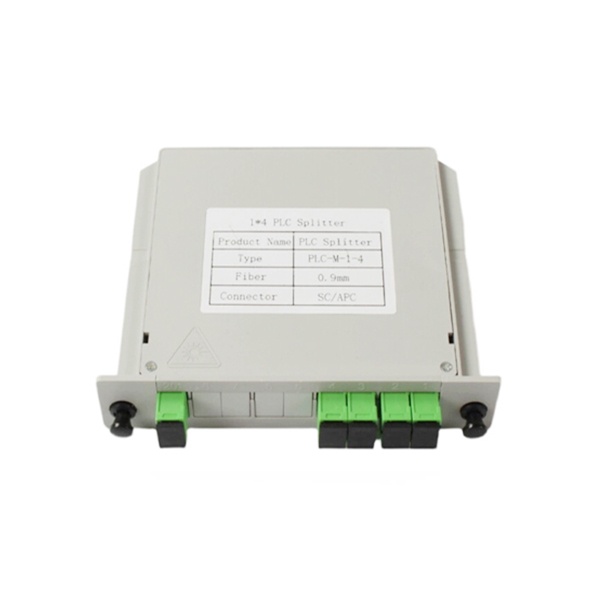

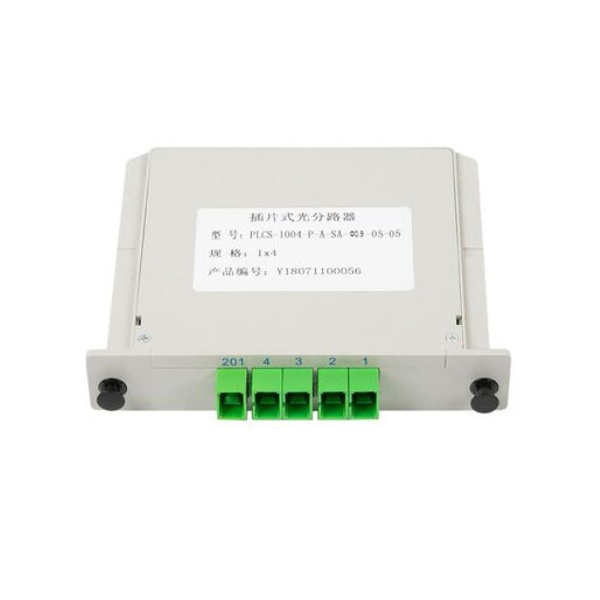

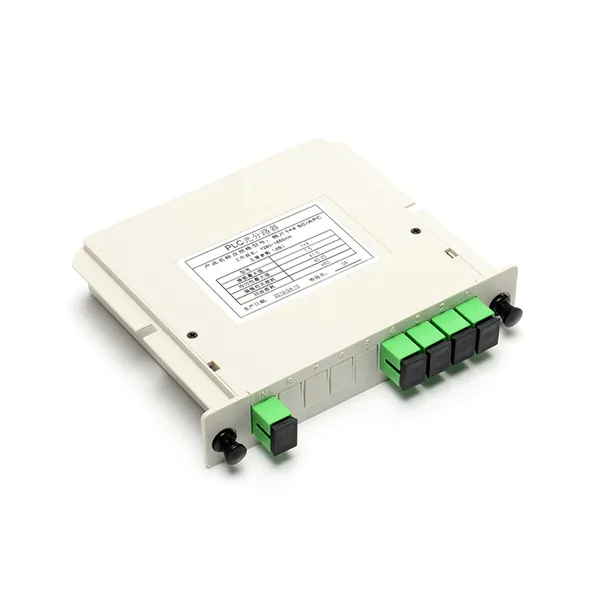

The 1 to 4 optical splitter module are made of high impact ABS housing materials, gray color, module sizse:130*100*25mm, with mounting rivets on both sides of the box for installation on fiber splitter box, distribution boxes. There is number mark for input and outputs, fast and easy installation.
