Description

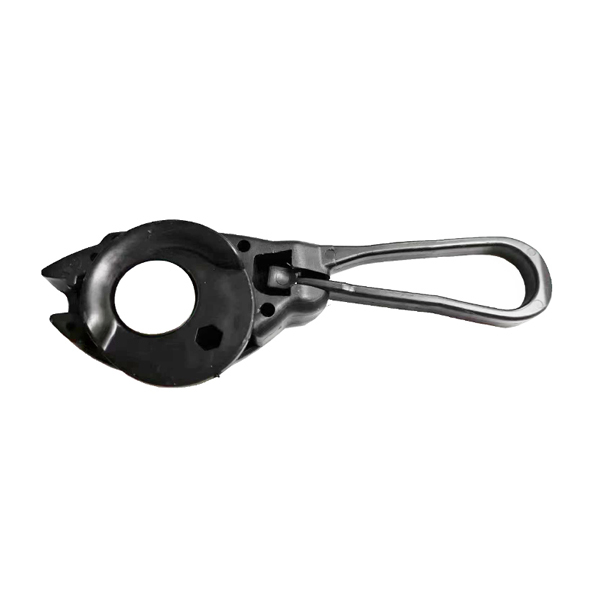

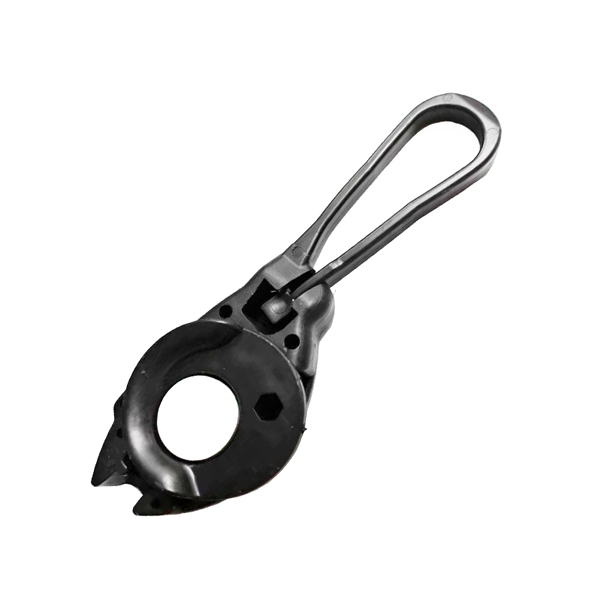

The round drop wire clamp is composed of a mandrel shaped body and an opened bail that can be locked into the clamp body. It is made out of UV resistant nylon PA66 material which ensure long life span like 25 years.
The device is installed on both poles and buildings for connecting subscribers, if use two clamps, suspension is carried out on the intermediate supports. This special design allows the anchoring of the cable on the end without any radial pressure on the cable and provide additional protection for the FTTH cable.
Features
- Dead-ending of round drop cable on poles and buildings.
- Suspension of drop cable at intermediate poles by using 2 drop clamps
- Cable diameter 2-6mm ftth round or flat cable deploying
Specification
Model | FTTH-C380 |

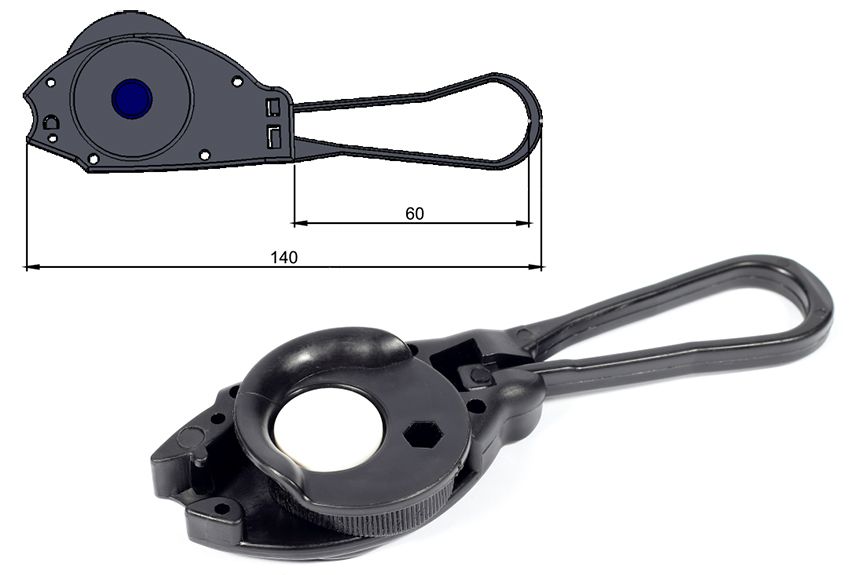

Dimension | 140*102*34mm |
Channel size(Width*depth) | 6*20mm |
Material | Nylon PA66, anti UV |
Color | Black |
Breaking load | 1.5KN |
Operating temperature | -40 – +60℃ |
Net weight | 60g |
