Description
Features Of Drop Wire P Clamp
- Simple, quick and reliable installation without the use of special tools and accessories.
- It is capable of anchoring 5 to 6.8 mm optical cable without inducing optical losses. It does not cause permanent damage or crushing to the cable sheath.
- Maximum variation of 0.5 dB of optical power (with 500 N of cable tension at 20℃).
- Maximum load at the cable retention point: 850N (at 20℃).
- Working temperature from -30 to 70℃.
- Cable bending radius of 53 mm.
- The product is designed for a minimum service life of 20 years.
- All materials are RoHS compliant.
Plastic Drop Wire Clamp Application
- It can be reused in case of replacement of the power cable.
- Facilitates the installation of the cable for aerial or facade networks at an intermediate point in the path.
- Used for the retention of telecommunications cable (fibers, pairs, coaxial) and the distribution of power in circular sections.
- Mechanical supports aerial or facade outdoor installations.
Anchoring Loop Specification
| Dimension | Retainer | Height | Width | Depth |
| 54.5mm | 72,5 mm | 15 mm | ||
| Hook | 800mm | 360.2 mm | 40 mm | |
| Material | Body and Wedge | Black polyamide | ||
| Hook | Authentic stainless steel | |||
FTTH-C400 Drop Cable Tension Clamp Details

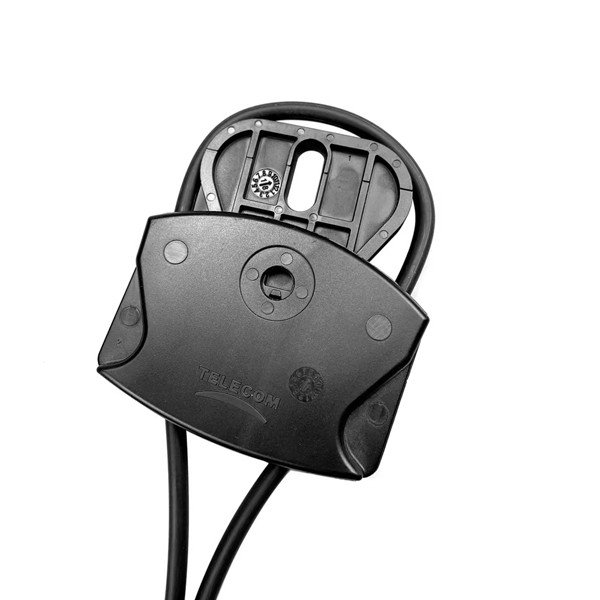

It consists of two separate pieces of weather-resistant thermoplastic material that work together to house and anchor the cable by bending the inner piece over the outer part, with the tension of the cable itself.
The loop has a passage hole for direct fixing to the wall with a 6×60 mm screw, or to poles, overhead installed suspended from a metal fixing hook included in the set.
How to use the drop wire p clamp?
Step 1: Remove the plastic plug, insert the fiber optic cable into the main body from the bottom, forming a curved shape.
Step 2: Pull the fiber optic cable downwards along the groove at the top of the plug until it is fully inserted into the main body.
Step 3: Align the center hole of the plug with the hole in the main body, then it can be secured with a screw or a hook, thus installing it in the desired position.
