Pigtail LC SM Specification
| Item | Value |
| Connector | LC |
| Operating wavelength | 1260-1650nm |
| Fiber type | G657A2 |
| Cable jacket | LSZH, PVC, PE, TPU, etc. |
| Cable type | Simplex Φ0.9mm, |
| Polish manner | UPC |
| Cable color | Yellow |
| Fiber radius of curvature | ≥ 40 mm (G.652D and G.655C); ≥ 20 mm (only G.657A2) |
| Insertion Loss | ≤ 0.1dB (Master) ≤ 0.3dB (Standard) Tested by JDS RM 3750 |
| Return Loss | UPC ≥ 55dB,APC ≥ 60dB (typ.65dB)–Single mode UPC≥ 35dB (typ.38dB)-Multi mode Tested by JDS RM3750 |
| Repeat ability | ±0.1dB |
| Operating temperature | -40 ° C to 85 ° C |
| Geometry Requirement (For Single mode) | Ferrule End face Radius: 7mm ≤ R ≤ 12mm (APC) 10mm ≤ R ≤ 25mm (Standard) Apex Offset ≤ 30 μm (Master) Apex Offset ≤ 50 μm (Standard) Undercut -50nm ≤ U ≤ 50nm Tested by DORC ZX-1 |
Pigtail LC SM Details

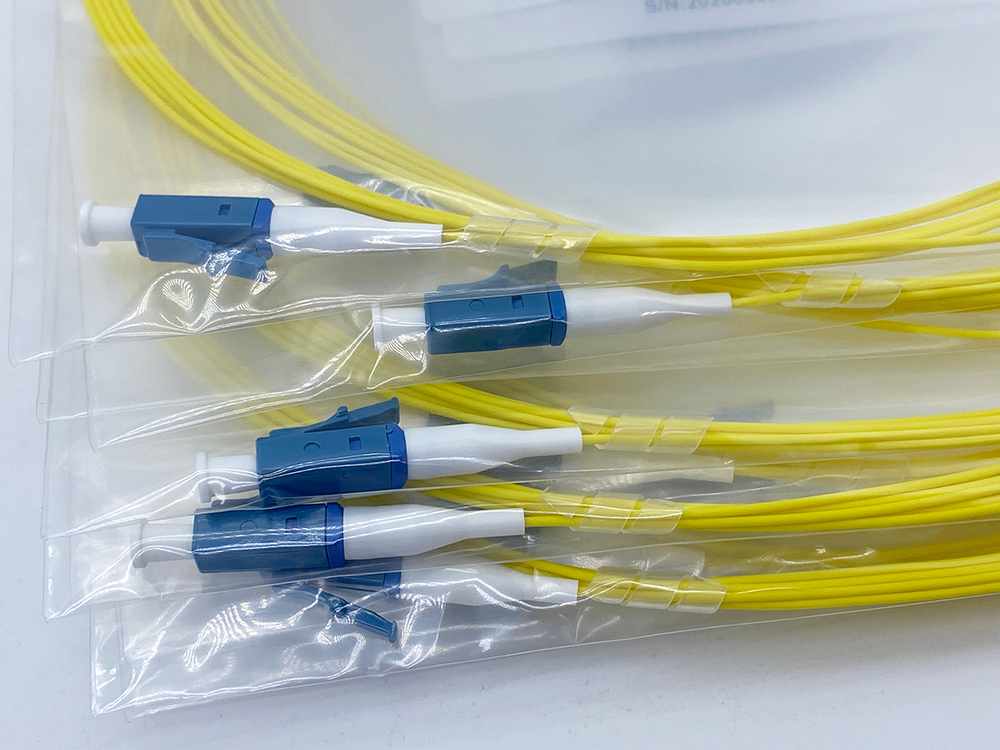

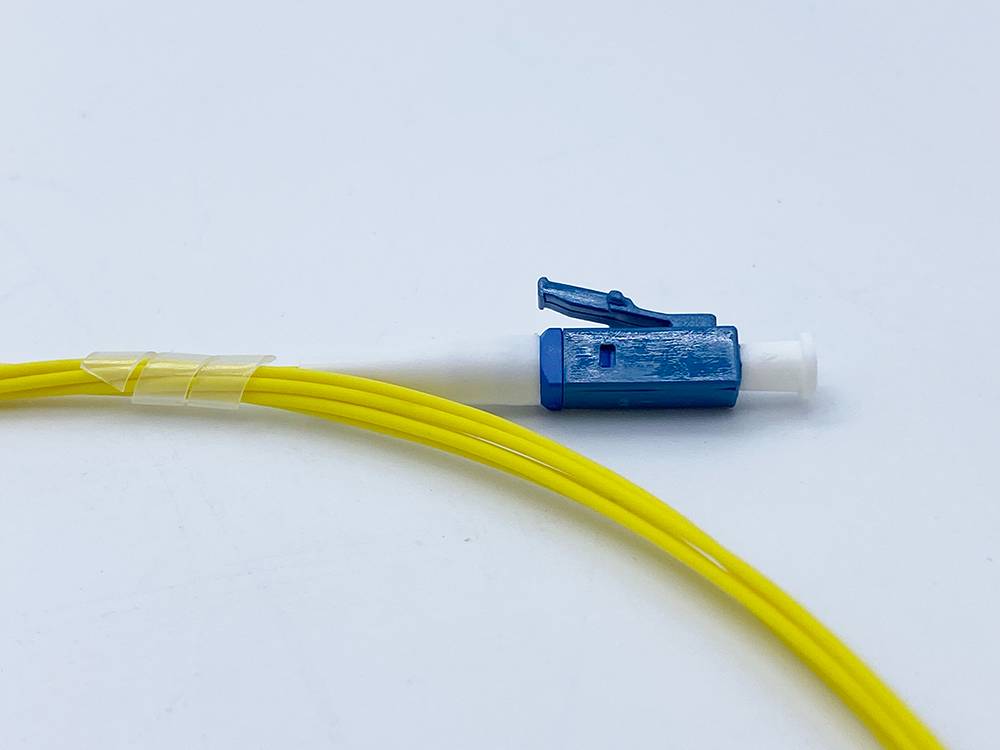

LC UPC single mode fiber optic connector is blue housing, white dust cap and boot. Customization is available, and sample are free.
Yingda standard pack type is Individual plastic PP bag for fiber pigtails, support 10pcs/bag, 20pcs/bag, 100pcs/bag to save volumen and weight, so as to meet your budget plan.
Yingda LC UPC pigtails are telecom standard with g.652D fiber, LSZH jacket, custome length from 15cm, 25cm, 50cm to 1meter, 1.5meter or 2meter.
All fo pigtails will be qualified test, then can deliver to customers.
Pigtail LC SM Features
- High repeatability and high return loss
- High stability and good interchangeability
- Low insertion loss and high reliability
- Three types of fiber end faces: PC, UPC, APC
- The entire series of optical fibers can be used: multi-mode (50/125, 62.5/125, OM3, OM4, OM5), single-mode (G.652, G.655, G.657, etc.)
Pigtail LC SM Application
- Fiber Optic Telecommunications
- LAN (Local Area Network
- FTTH (Fiber To The Home)
- CATV&CCTV
- High speed transmission systems
- Fiber optic sense
