Description

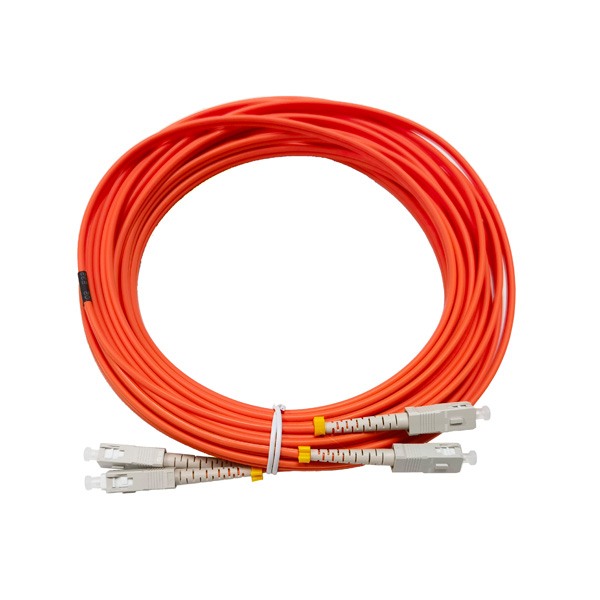

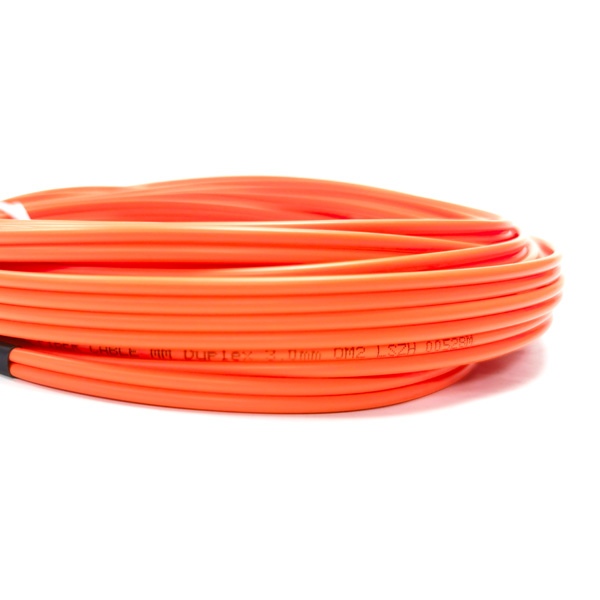

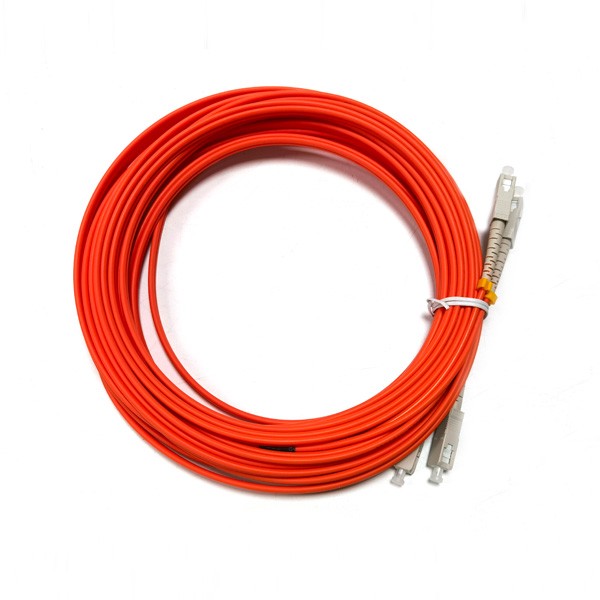

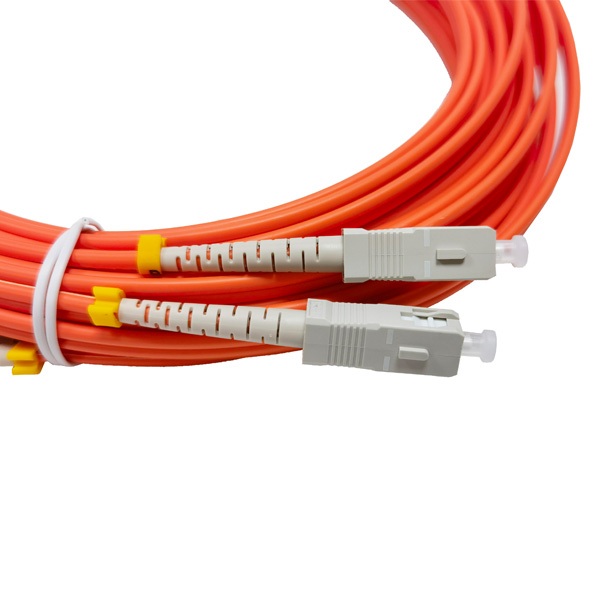

SC SC multimode fiber patch cord is easy to insert and remove, with low interference loss fluctuations, high compressive strength, high installation density, and low insertion loss fluctuations. It is a type of fiber optic connector that can be installed as duplex, triplet, or quadruple, and is widely used in fiber optic communication networks.
SC to SC Multimode Fiber Patch Cable Features
- High repeatability and high return loss
- High stability and good interchangeability
- Low insertion loss and high reliability
- Three types of fiber end faces: PC, UPC, APC
- The entire series of optical fibers can be used: multi-mode (50/125, 62.5/125, OM3, OM4, OM5), single-mode (G.652, G.655, G.657, etc.);
Patch Cable Application
- FTTX deployment
- Fiber optic data transmission
- Local network, wide area network, cable TV
- Fiber optic data transmission testing equipment and active device terminals
SC to SC Multimode Fiber Patch Cable Specification
| Item | Value |
| Connector | SC LC FC ST E2000 DIN D4 SMA FDDI MTRJ MU MPO MTP LX.5 VF45, etc. |
| Operating wavelength | 1260-1650nm |
| Fiber type | G652D, G657A2, G657A1, G655, G657B3, OM1 OM2 OM3 OM4,OM5, etc. |
| Cable jacket | LSZH, PVC, PE, TPU, etc. |
| Cable type | Simplex, duplex (zip cord), Φ3mm,Φ2.6mm, Φ2.4mm, Φ2mm,Φ1.6mm, Φ0.9mm, etc. |
| Polish manner | UPC, APC（8°）, PC |
| Cable color | Yellow, white, blue, orange, gray, green, etc. |
| Fiber radius of curvature | ≥ 40 mm (G.652D and G.655C); ≥ 20 mm (only G.657A2) |
| Insertion Loss | ≤ 0.1dB (Master) ≤ 0.3dB (Standard) Tested by JDS RM 3750 |
