Description

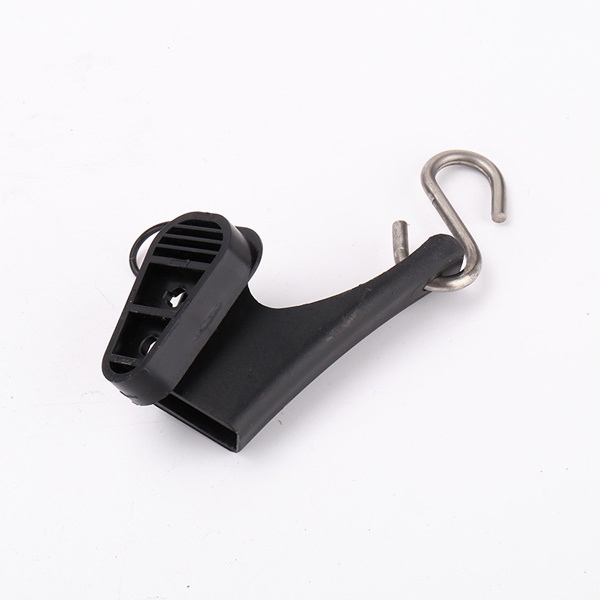

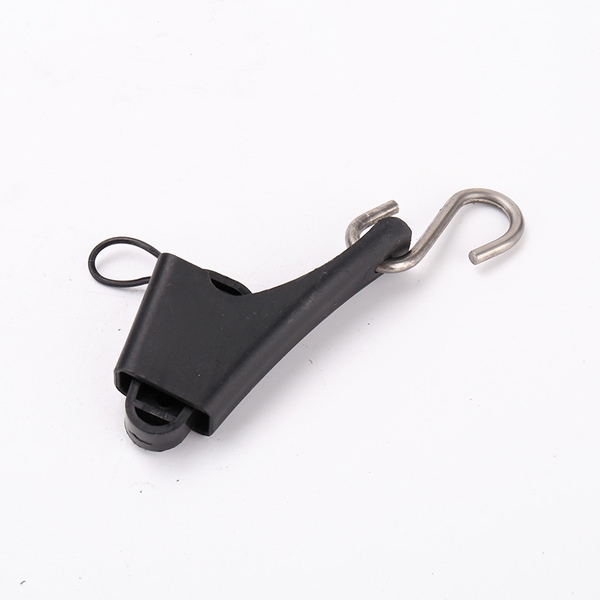

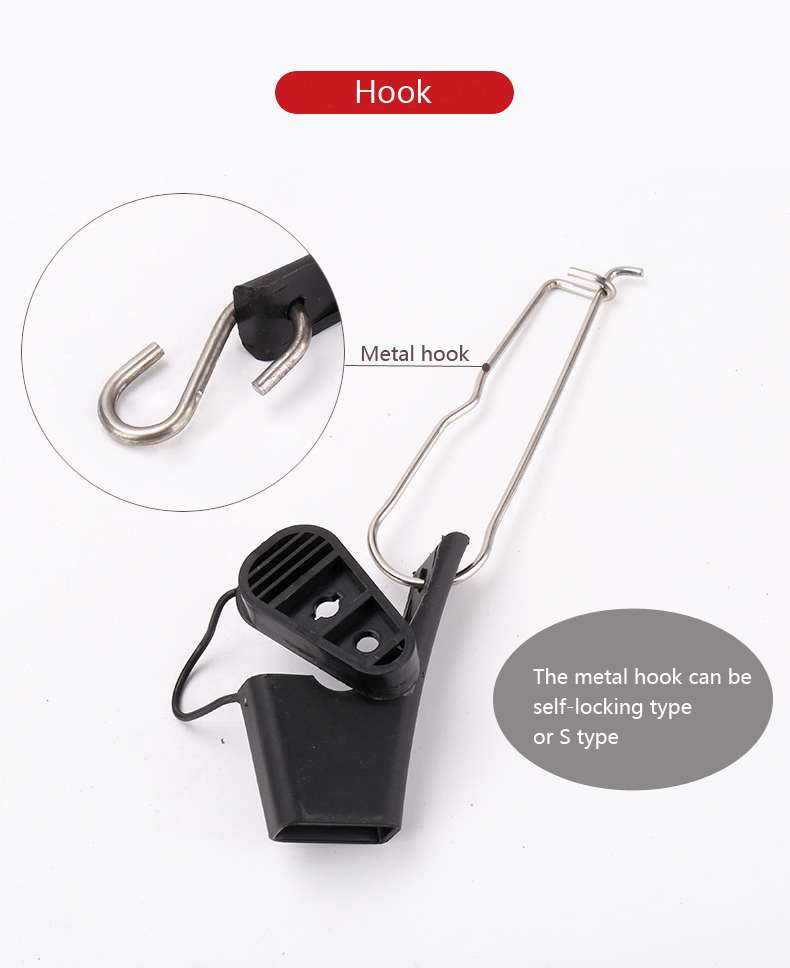

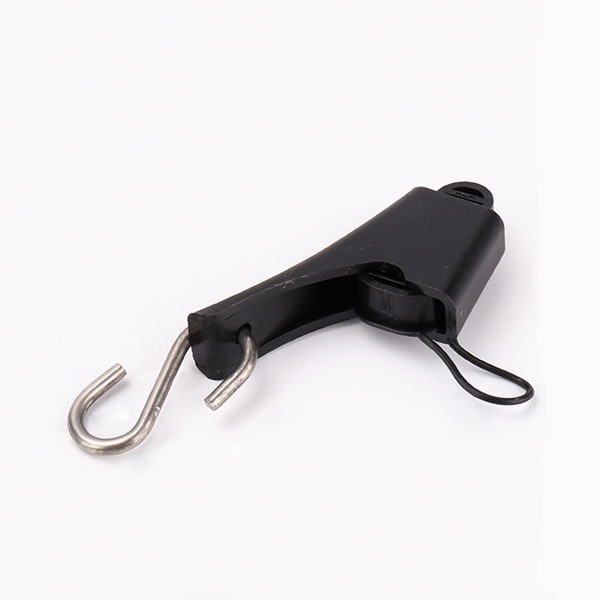

This drop wire tension clamp is composed of a fish shaped body and an closed bail that can be locked into the clamp body. The main body is made of UV resistant nylon PA66 material which ensure long life span like 25 years, and the metal hook is stainless steel 201 or 304.
The device is installed on both poles and buildings for connecting subscribers, if use two clamps, suspension is carried out on the intermediate supports. This special design allows the anchoring of the cable on the end without any radial pressure on the cable and provide additional protection for the FTTH cable.
Features
- Dead-ending of round drop cable on poles and buildings.
- Suspension of drop cable at intermediate poles by using 2 drop clamps
- Cable diameter 2-6mm ftth round or flat cable deploying
Specification
Model | FTTH-C370 |
Dimension | mm |
Cable diameter | 3.0mm, 2*3.1mm, 3.3*2mm, 5*2mm |
Material | Nylon PA66 + stainless steel, anti UV |
Color | Black |
Breaking load | 0.9-1 KN |
Operating temperature | -40 – +60℃ |
Net weight | 23g |
