Description

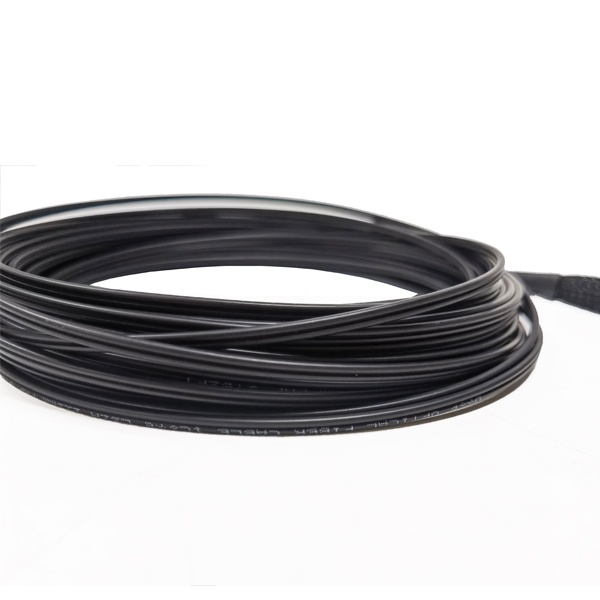

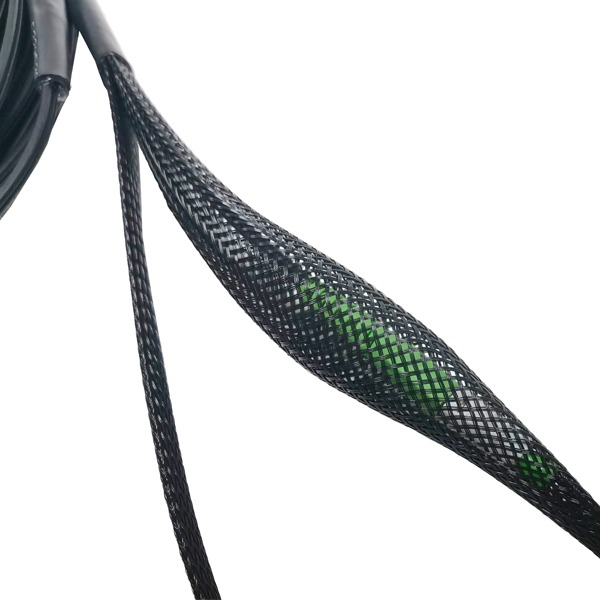

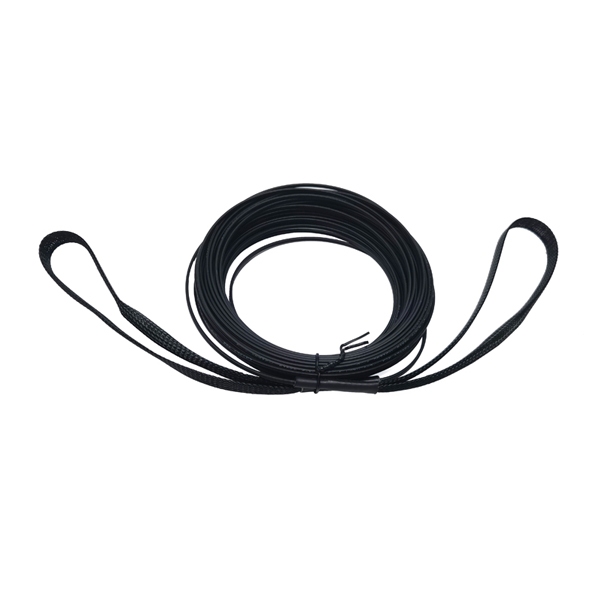

Outdoor fiber optic patch cord are used as jumper wires from equipment to fiber optic cabling links. It has a thick protective layer and is generally used for the connection between optical terminals and terminal boxes. It is applied in some fields such as fiber optic communication systems, fiber optic access networks, fiber optic data transmission, and local area networks. Outdoor patch cord is with outdoor fiber optic cable which can be used in outdoor harsh environment due to the tougher cable structure and sheath.
Outdoor Patch Cord Features
- FTTH Drop Cablewill be directly connected till end user home, the bandwidth, wavelength and transmission technology are not restricted.
- There is one messenger wire with polyester yarn, steel or steel strands for supporting in aerial mounting.
Outdoor Patch Cord Application
- House wiring
- Lead-in cable
- FTTH FTTX network
- Conforms to IEC 60794-1-21 standards

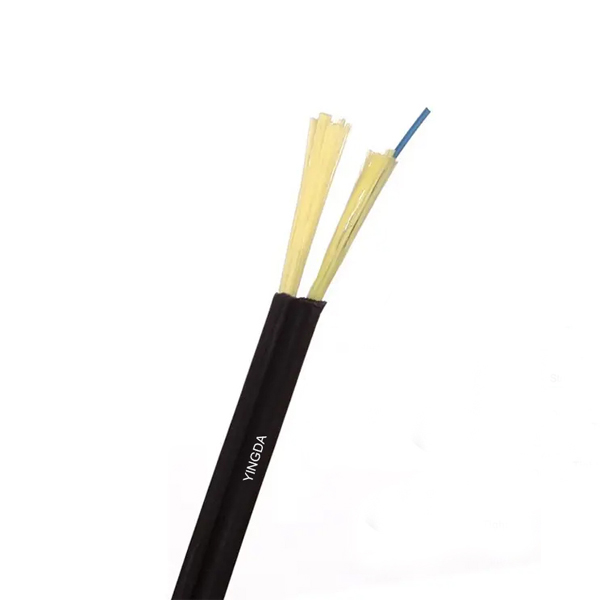

GJYFJC8H Cable Structure
GJYFJC8H Cable Technical Specification
| Cable Type | GJYFJC8H | |
| Optical Fiber Unit | Fiber count | 1core |
| Fiber color code | G657A2, natural | |
| Tight buffer color | white | |
| Diameter | 0.85mm | |
| Material | LSZH | |
| Strength member | Material | Polyester yarn |
| Color | Black | |
| Diameter | 3.0±0.1mm | |
| Brace | Height/width | 0.7mm /0.6mm |
| Supporting wire | Material | Polyester yarn |
| Diameter | 2.0±0.1mm | |
| Cable sheath material | LSZH | |
| Cable color | Black | |
| Cable height | 5.7±0.1mm | |
| Cable weight | 14kg/km | |
| Attenuation | 1310nm≤0.4dB/km; 1550nm≤0.3dB/km; | |
| Cable tray length | 1KM | |
| Cable marking | Indication in meters
Quantity and type of fibers Factory name Date of manufacturing(year) Other requirements |
|
Cable Test Results
| Crush | Short term:500N/100mm | No fiber break and no sheath damage |
| Impact | Height:1m
Number:3times Weight:1N |
No fiber break and no sheath damage |
| Repeated | Bending radius (≥60mm): 40xD
No. Of cycle:30 Load:20N |
No fiber break and no sheath damage |
| Torsion | Cycle:20
Length under test:250m Turns:±180° Load：20N |
No fiber break and no sheath damage |
| Temperature cycling | Temperature：-20°C~+60°C
Time of each step:8h Number of cycle:2 |
Loss change≤0.5dB@1550nm
No fiber break and no sheath damage |
Fiber Optic Connector Specification
| Connector | SC LC FC ST E2000 DIN D4 SMA FDDI MTRJ MU MPO MTP LX.5 VF45, etc |
| Operating wavelength | 1260-1650nm |
| Fiber type | G652D, G657A2, G657A1, G655, G657B3, OM1 OM2 OM3 OM4,OM5, etc |
| Cable jacket | LSZH, PVC, PE, TPU, etc |
| Polish manner | UPC, APC（8°）, PC |
| Fiber radius of curvature | ≥ 40 mm (G.652D and G.655C); ≥ 20 mm (only G.657A2) |
| Insertion Loss | ≤ 0.1dB (Master)
≤ 0.3dB (Standard) Tested by JDS RM 3750 |
| Return Loss | UPC ≥ 55dB,APC ≥ 60dB (typ.65dB)–Single mode
UPC≥ 35dB (typ.38dB)-Multimode Tested by JDS RM3750 |
| Repeat ability | ±0.1dB |
| Operating temperature | -40 ° C to 85 ° C |
| Geometry Requirement
(For Single mode) |
Ferrule End face Radius:
7mm ≤ R ≤ 12mm (APC) 10mm ≤ R ≤ 25mm (Standard) Apex Offset ≤ 30 μm (Master) Apex Offset ≤ 50 μm (Standard) Undercut -50nm ≤ U ≤ 50nm Tested by DORC ZX-1 |
