Description

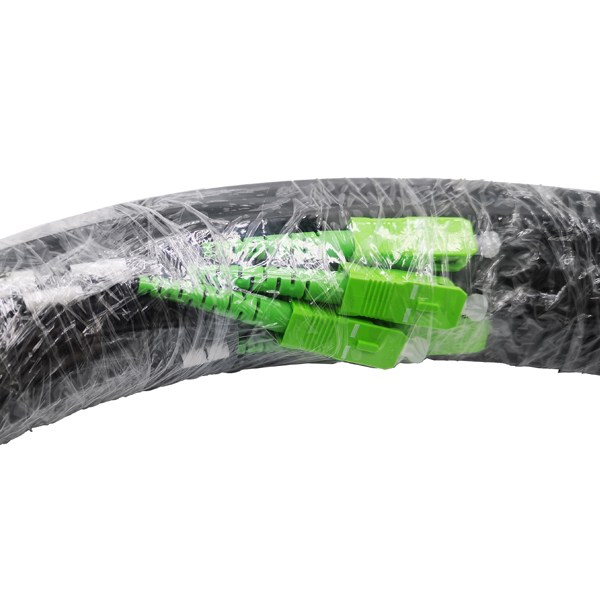

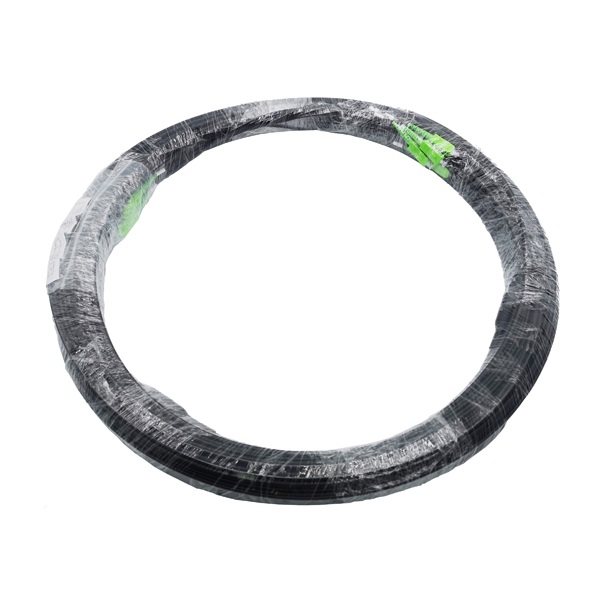

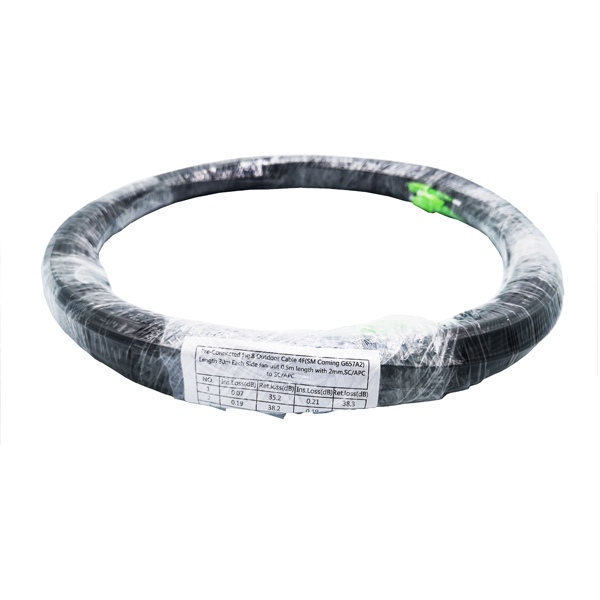

Pre-Connected Fig.8 Outdoor Cable 4 Fibers SM Corning G657A2 Length 30m Each Side fan-out 0.5m length with 2mm, SC/APC to SC/APC
Fiber optic patch cord are used as jumper wires from equipment to fiber optic cabling links. It has a thick protective layer and is generally used for the connection between optical terminals and terminal boxes. It is applied in some fields such as fiber optic communication systems, fiber optic access networks, fiber optic data transmission, and local area networks. Outdoor patch cord is with outdoor fiber optic cable which can be used in outdoor harsh environment due to the tougher cable structure and sheath.
Self-supporting Aerial Cable (GYFXTC8Y) Structure
GYFXTC8Y Figure 8 Cable Technical Parameter
| No. of cable | 2-12 | ||
| Fiber Model | G.657A2 (Corning) | ||
| Loose Tube | Material | PBT | |
| Diameter（±0.06）mm | 2.5 | ||
| Thickness（±0.03）mm | 0.35 | ||
| The Max.Core NO./Tube | 12 | ||
| Outer Sheath① | Material | MDPE | |
| Thickness（±0.1）mm | 0.6 | ||
| Diameter（±0.2）mm | 2.5 | ||
| Web | Material | PE | |
| Size（±0.1）mm | 0.7*1.2 | ||
| Messenger Wire | Material | steel strand | |
| Size（±0.05）mm | 1.2（0.4*7） | ||
| Outer Sheath② | Material | PE | |
| Thickness（±0.1）mm | 1.0 | ||
| Diameter（±0.2）mm | 5.0 | ||
| Cable Diameter（±0.2）mm(W×H) | 5.0×8.0 | ||
| Cable Weight（±5）kg/km | 46 | ||
| Attenuation | 1310 nm | £0.36 | |
| 1550 nm | £0.22 | ||
| Min. bending radius | Without Tension | 10×Cable-φ | |
| Under Maximum Tension | 20×Cable-φ | ||
| Temperature range
（℃） |
Installation | -20~+60 | |
| Transport&Storage | -40~+70 | ||
| Operation | -40~+70 | ||
| Tensile strength | Short term | 660N | |
| Long term | 200N | ||
| Crush resistance | Short term | 1000(1/100mm) | |
| Long term | 300(1/100mm) | ||
Fiber Optic Connector Specification
| Connector | SC LC FC ST E2000 DIN D4 SMA FDDI MTRJ MU MPO MTP LX.5 VF45, etc |
| Operating wavelength | 1260-1650nm |
| Fiber type | G652D, G657A2, G657A1, G655, G657B3, OM1 OM2 OM3 OM4,OM5, etc |
| Cable jacket | LSZH, PVC, PE, TPU, etc |
| Polish manner | UPC, APC（8°）, PC |
| Fiber radius of curvature | ≥ 40 mm (G.652D and G.655C); ≥ 20 mm (only G.657A2) |
| Insertion Loss | ≤ 0.1dB (Master)
≤ 0.3dB (Standard) Tested by JDS RM 3750 |
| Return Loss | UPC ≥ 55dB,APC ≥ 60dB (typ.65dB)–Single mode
UPC≥ 35dB (typ.38dB)-Multimode Tested by JDS RM3750 |
| Repeat ability | ±0.1dB |
| Operating temperature | -40 ° C to 85 ° C |
| Geometry Requirement
(For Single mode) |
Ferrule End face Radius:
7mm ≤ R ≤ 12mm (APC) 10mm ≤ R ≤ 25mm (Standard) Apex Offset ≤ 30 μm (Master) Apex Offset ≤ 50 μm (Standard) Undercut -50nm ≤ U ≤ 50nm Tested by DORC ZX-1 |
