4 Port Fiber Optic Box Wall Mounted, Gray, Ip65, Ul Flame Retartant, 1:8 Splitter Cassette Module Slots, Waterproof, Key Lock

Description

Fiber Optic Box Wall Features

• Total enclosed with key and buckle, square shape, light weight, compact size;
• High strength engineer plastic, wet-proof/water-proof/dust-proof,anti-aging, resistance to chemical and U.V attack;
• Clampfor feeder cable and drop cable, mix fiber splicing/ fixation/storage/distribution in one;
• Cable, pigtails are running through own path withoutdisturbing each other;

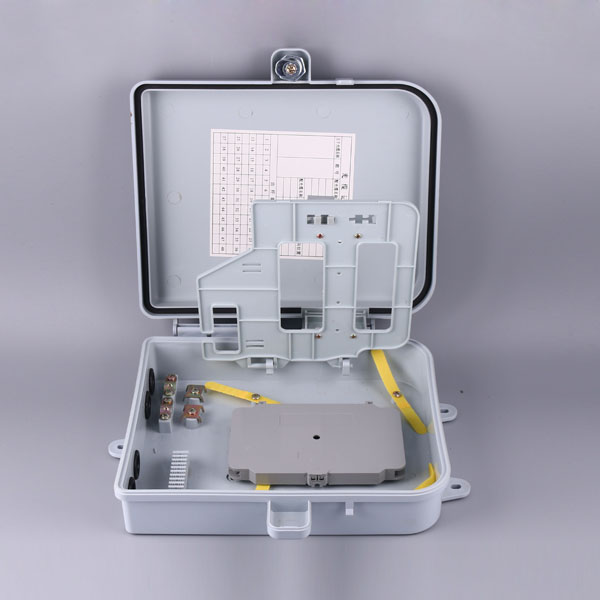

• Rotate platecan be flipped up, front for 1:8 splitter box, bottom with 1pc 24 core splice tray;
• Feeder cable can be placed by expression port,easy for maintenance and installation;
• Outdoor Wall mount or pole mount, IP65 protection class;
• Laser mark and logo print reserved on the lid.

Fiber Optic Box Wall Specification

Fiber Optic Box Wall Standard Accessory

Heat shrink protection sleeve, metl key, round cable port seal, wall mounting screws, cable clamps, nylon tie, buffer tube, label mark, etc

Fiber Optic Box Wall Product Details

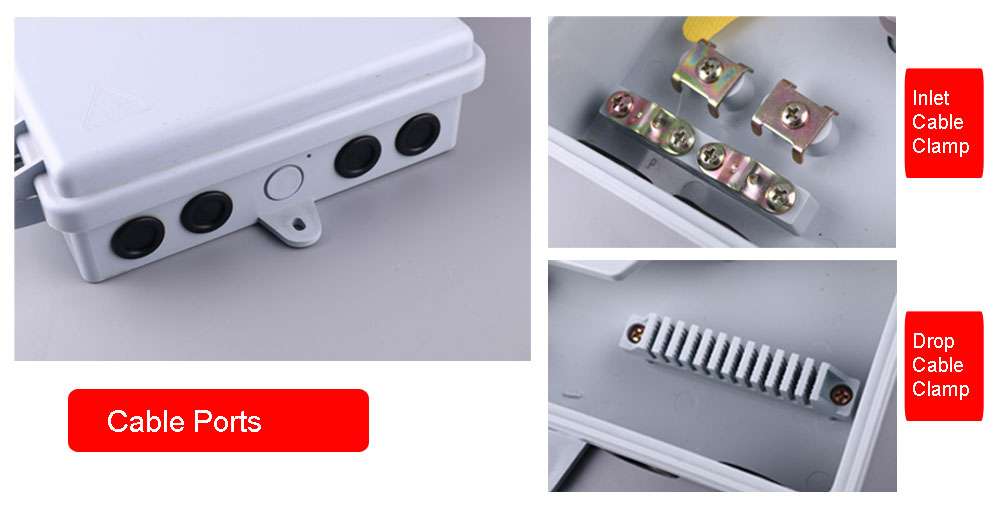

There are total 4 pcs round cable ports for feerder cable go in and out of the fiber nap box with rubber seals, one more is for future use in middle. Construction worker can fix the cable strength members like aramid yarn, aluminum tape, waterblocking layer, etc on the internal cable fixture sheets, with cable clamps or nylon ties. On right of the metal sheet, there is plastic drop cable fixtures for FTTH figure 8 drop wires.

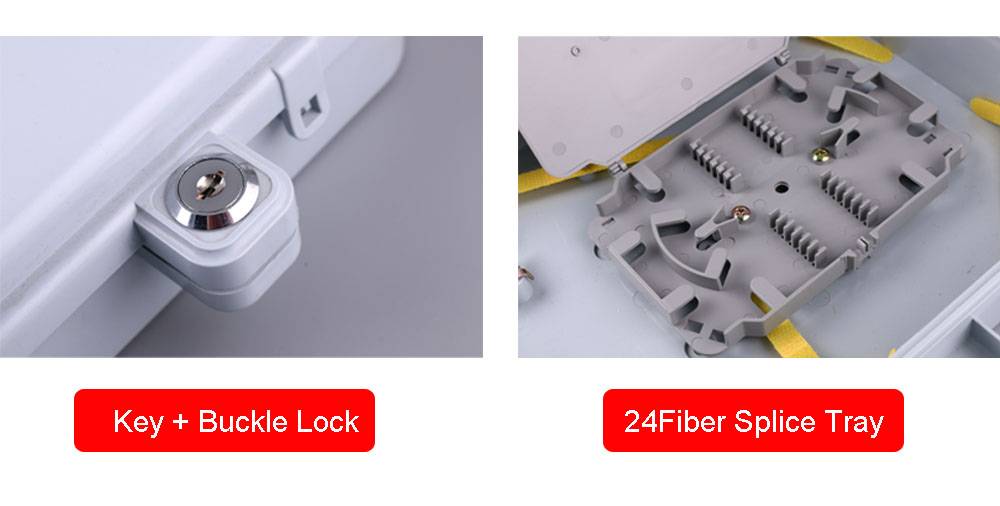

The fiber FAT box configure with 1piece splice tray with cover to hold the heat shrinkable protector tubing in the cassette, there are 12 slots in a tray, each hold one fiber, if double layer can do 24 fibers for single fiber. If more splice trays are stacked and prevent the splice trays falling and damage the optical fiber, you can fix the screws to the bottom of the box through the center hole of the splice tray.

And we adopt key lock for easy and fast open and close of the box, safe and convenient, and anti-theft.

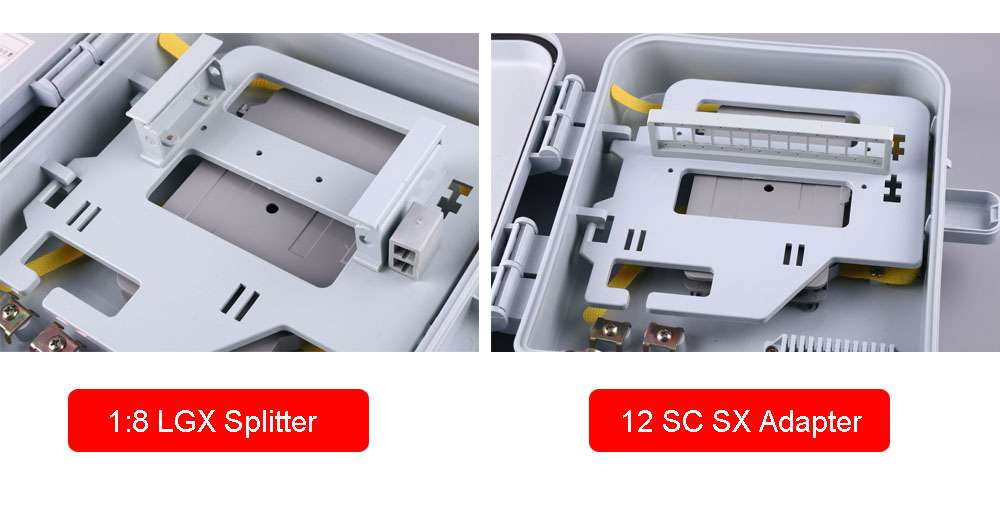

The 8 Cores fiber wall box are designed with two different structure for different functions:

• LGX splitter distribution box: as left picture, we can install 1x 1*8 cassette splitter, and back of the plate, there is 1 splice tray for fiber splicing. The feeder cable go inside of the box from the bottom layer.
• 12 SC Adapter Holder (adapter bracket):  as right picture, we can install 12SC SX adapters in the holders, and connect the fiber optic pigtails with FTTH drop cable patch cords, then splicing and protect the pigtails in the splice tray. Or blockless splitter outputs pigtails with FTTH patch cord as well.
