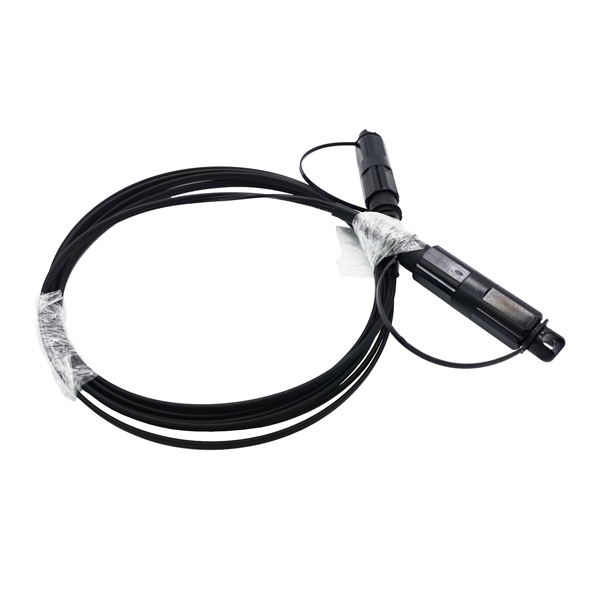

Description
Fiber Cable Management Features
- Cost effective solution for in house termination.
- Low insertion loss and added loss.
- Height of attenuation.
- IP67 water, dust proof and corrosion resistant.
- The material in the jumper cable are all-weather and UV-resistant.
- Mechanical performance: IEC 61754-4 standard.
- RoHS and REACH materials compliant.
Fiber Cable Application
- Multi-purpose Outdoor.
- For connection between distribution box and RRH.
- Deployment in Remote Radio Head cell tower application.

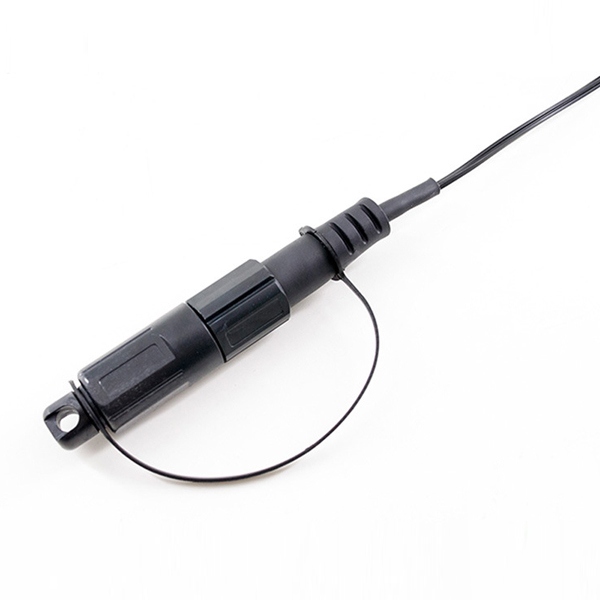

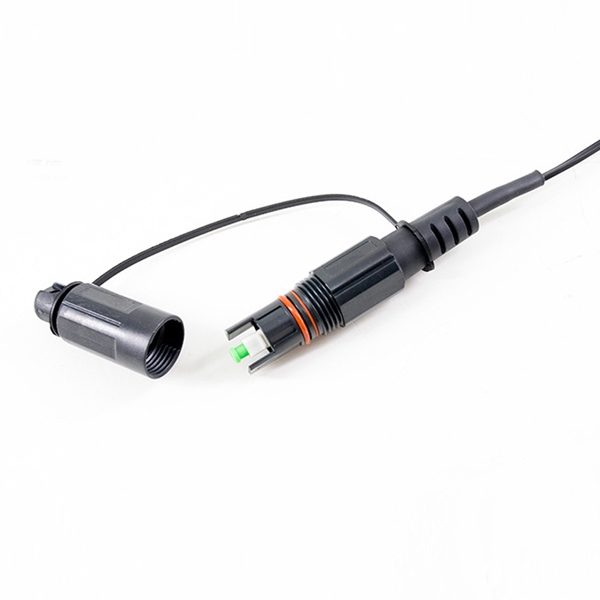

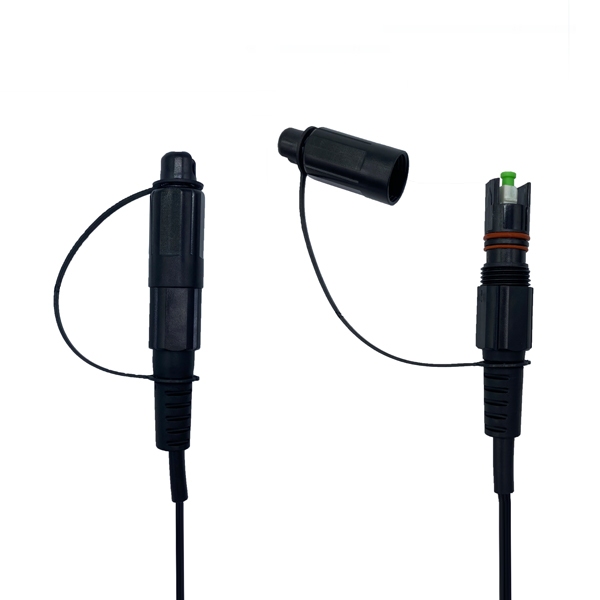

SC Connector Type
| Type | Reference | Note | Polish mode |
| SC | IEC61754-4 | Single mode | APC:green connector UPC: blue connector |
| Multi-mode | UPC: gray connector |
2X3MM FTTH Drop Cable Structure
| Model | GJXFH | |
| Fiber count | 1 core | |
| Fiber type | G.652D, G.657A1, G.657A2, G.657B3 | |
| Strength member | FRP or steel wire | |
| Cable diameter | 2.0*3.0mm (±0.1) | |
| Cable weight | Approx. 7kg/10km | |
| Tensile Strength | Steel wire strength member | short term 200N |
| long term:100N | ||
| FRP wire strength member | short term 80N | |
| long term:40N | ||
| Crush Resistance | Short term: 1000N | |
| Long term:500N | ||
| Operating temperature | -40°C ~+70°C | |
| Cable color | White, gray, black | |
Fiber Cable Mechanical Characteristics
| Test | Conditions | Reference |
| Endurance | 500 mating | IEC 61300-2-2 |
| Vibration | Frequency: 10 to 55Hz, Amplitude: 0.75mm | IEC 61300-2-1 |
| Cable retention | 100N (main cable); 50N (connector part) | IEC 61300-2-4 |
| Strength of coupling mechanism | 80N for 2 to 3mm cable | IEC 61300-2-6 |
| Cable torsion | 15N for 2 to 3mm cable | IEC 61300-2-5 |
| Fall | 10 drops, 1m drop height | IEC 61300-2-12 |
| Static lateral load | 1N for 1h (main cable); 0.2N for 5min (ranch part) | IEC 61300-2-42 |
| Cold | -25°C, 96h duration | IEC 61300-2-17 |
| Dry heat | +70°C, 96h duration | IEC 61300-2-18 |
| Change of temperature | -25°C to +70°C, 12 cycles | IEC 61300-2-22 |
| Humidity | +40°C at 93%, 96h duration | IEC 61300-2-19 |
