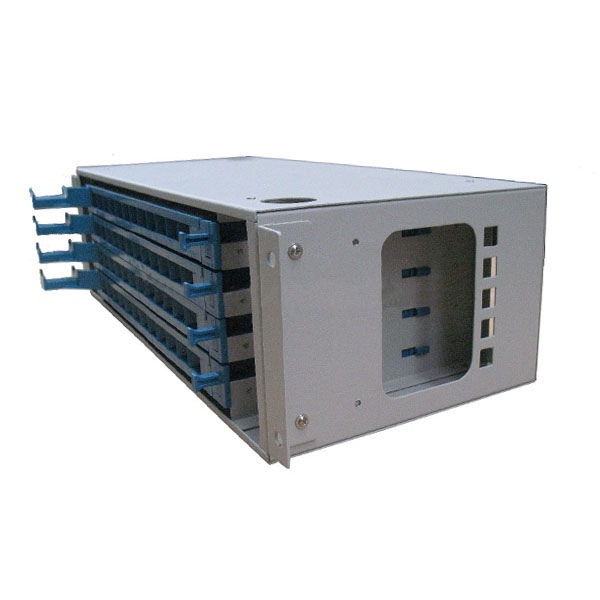

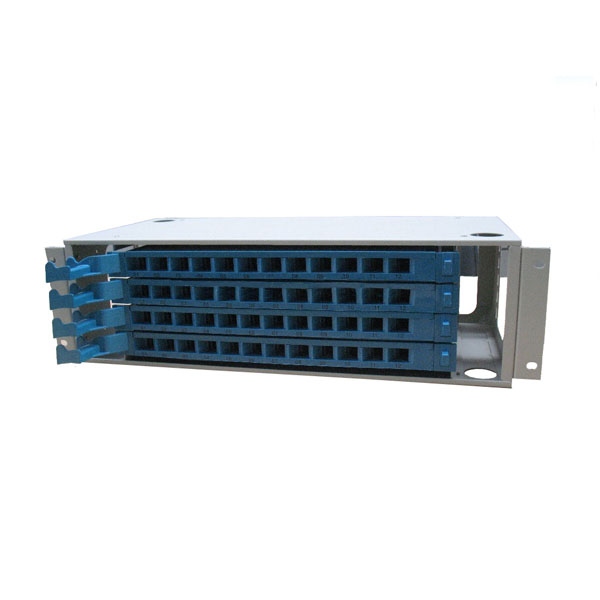

48 Port Optical Distribution Frame GB-A-48 19″ Standard, High-Density Cable Management

The series equipped with ABS welding tray, Integrity with perfect appearance, easy for installation of inlay, convenient to expand capacity; obliquity of adapter is 30°which ensure the bend radius of patch cord and avoid laser burning eyes; several different kinds of splicing and distribution mark, easy to make record of fusion and distribution.

Description

Compliance

  • ISO/IEC11801:2008
  • ANSI/TIA/EIA 568-C.3



Features

  • 19 “standard installation, suitable for a variety of rack, cabinet installation
  • Pull-out design, set field welding, welding wiring module integration
  • Each tray can be tabbed to install 12/24pcs of FC, LC duplex, SC, and ST adapters
  • Wide working space, Individual distribution panel for efficient work
  • OEM, customer logo can be print or with stickers
  • Fully load with adapter and pigtails is available at factory



Specification

Box Material Cold rolled steel with electrostatic spraying
Distribution Board Material ABS
Item Dimension (mm)

(length*width*height)

32C 430*210*3U
64C 430*210*4U
128C 430*210*8U
256C 430*210*14U
512C 430*210*16U
Maximum bending space (mm) ≥30
Max Fibre Count 576
Adapter SC
Insertion loss <0.3dB
Return loss ≥35dB(PC); ≥50dB(UPC); ≥65dB(APC);
