Description

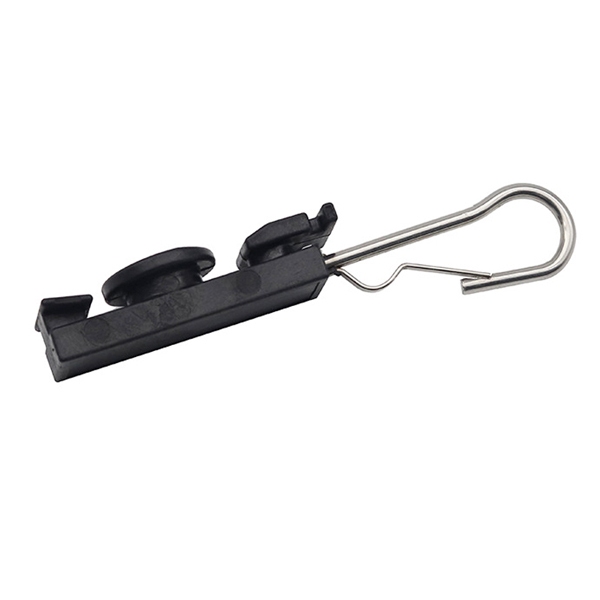

FTTH anchor clamp is designed to tension steel wire diameter up to 3 mm of FRP messenger of drop cable in outdoor FTTX. This Open hook self-locking S-type fitting is easy in installation, and requires preparation of optical cable before attaching and helps to secure it as tightly as possible.
Stainless steel wire ball allows installations of FTTH clamp drop wire on a pole brackets,SS hooks.
Yingda FTTH Drop cable tension clamp pass the tensile tests,operation experience with temperatures ranging from -60℃ to 60℃ test, temperature cycling test,aging test,corrosion resistant test.
S Tension Clamp Features:
- Self-locking structure perform easiest installation on fiber optic pole, fast and easy to operate;
- This clamp can used for ftth drop cable with diameter 3.0mm FRP or steel wire messenger;
- Drop cable anchor clamp is used on dead-end fiber optic cables;
- Made of high strength and wear resistance ABS material, durable, anti-aging and good anti-corrosion, mechanical performances;
- Good package protection with 3 layers pack: plastic bag, cartons, and pallets.
- Available in various shapes and colors
- Stainless steel wire ball allows installation of FTTH clamp drop wire on a pole brackets, SS hooks.
- Clamp pass the tensile test, operation experience with temperature range from -60 ~+60 test, temperature cycle test, aging test, corrosion resistant test, etc.
S Tension Clamp Specification
Model | S002W |
Cable diameter | 2*5mm |
Breaking load | 1.3KN |
Net weight | 28g |
Color | Black, white, grey |
Dimension | 135*27.5*17mm |
Material | ABS plastic+ SS201 /304 |
S Tension Clamp Pack Information
Quantity/carton box | Carton size | Gross weight/carton box |
500pcs | 400*300*250mm | 13.5kg |
Will load with non fumigation export pallet, if no specify. |
S Tension Clamp Application:
Cable ring is used on vertical wiring of self-supporting figure 8 cable into optical fibers on the pole, fixed by stainless steel fastening straps.
Yingda can offer all types of tension clamps, with closed hook or open hook, and large size or small types, welcome ODM OR OEM.
