Description

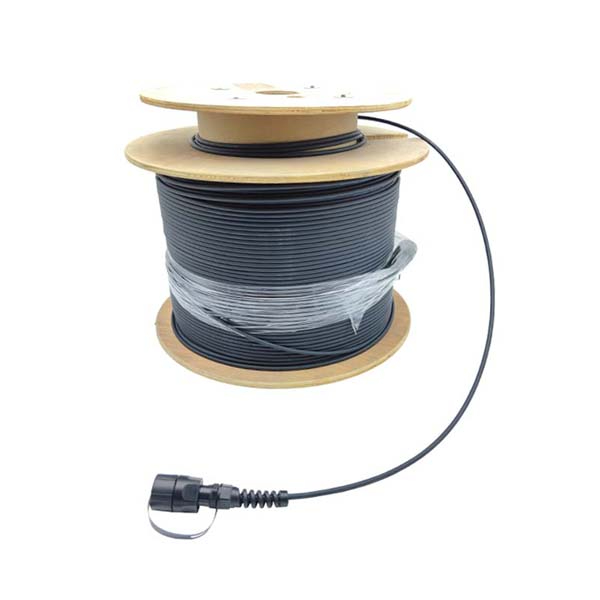

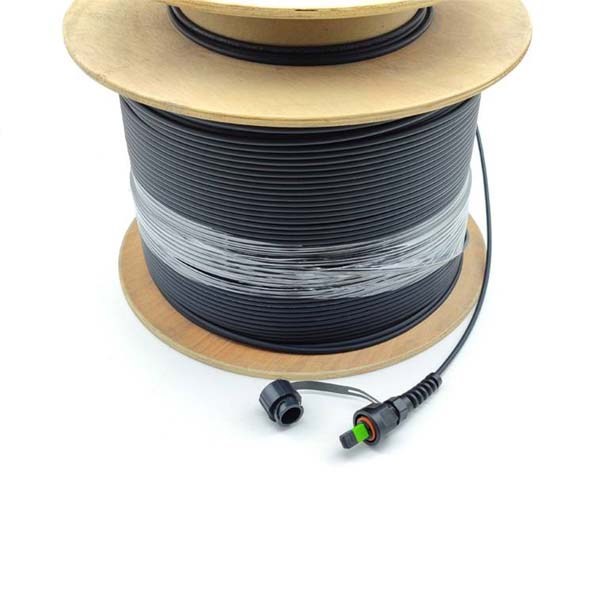

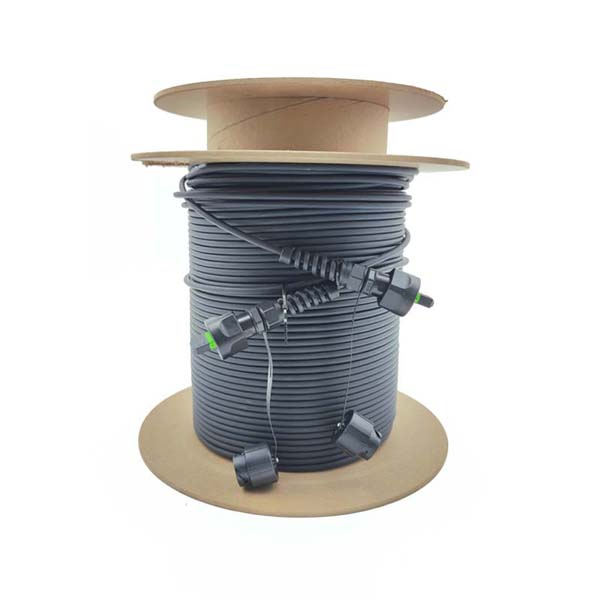

ODVA MPO Patch cord Features
- Provides moisture and dust protection for use in harsh industrial environments.
- IP67 protection, salt-mist proof, humidity proof, dust proof.
- Sealed panel feed-through design for easy installation into enclosures.
- 100% optically tested to ensure quality performance assemblies.
- Available in single mode and multi-mode styles to work with any common fiber type
- Push-pull insertion with bayonet-style mechanical latch provides easy installation and removal
- Broad temperature range (-40 to+85°C) is ideal for indoor or outdoor applications
- Cost effective cable assemblies custom tailored for field use in harsh environments.
- Light-weight cable reels organize and protect connectors and cable for easy installation and storage.
ODVA MPO Patch cord Application
- Distributed antenna systems
- Small sell systems
- Industrial/Oil/Gas
- Broadcast and Entertainment
- Other harsh environment applications
- Security/CCTV
MPO&MTP Optical Characteristics
|
Item |
Parameter |
Reference |
|||
| Single mode | Multimode | ||||
| Standard | Elite | Standard | Elite | ||
|
Insertion loss |
Typical≤0.30dB Max≤0.75dB | Typical≤0.15dB Max≤0.35dB | Typical≤0.50dB Max≤0.25dB | Typical≤0.10dB Max≤0.35dB |
IEC 61300-3-34 |
| Return loss | ≥ 50dB (PC)
≥ 60dB (APC) |
≥ 55dB (PC)
≥ 65dB (APC) |
≥30dB(PC) | ≥30dB(PC) | IEC 61300-3-6 |
