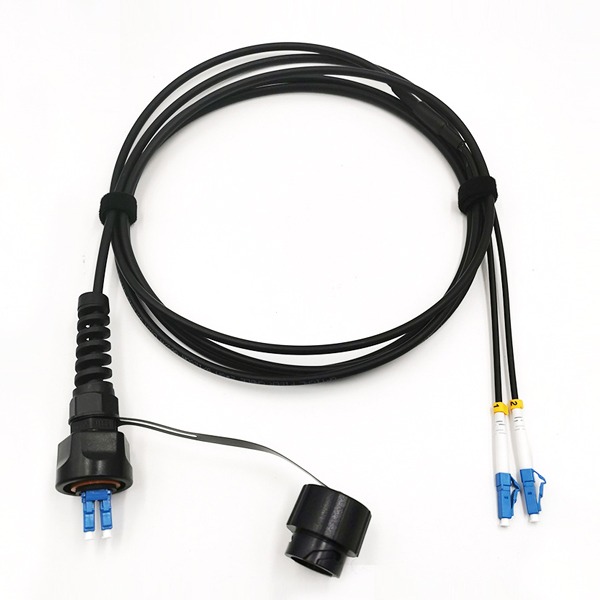

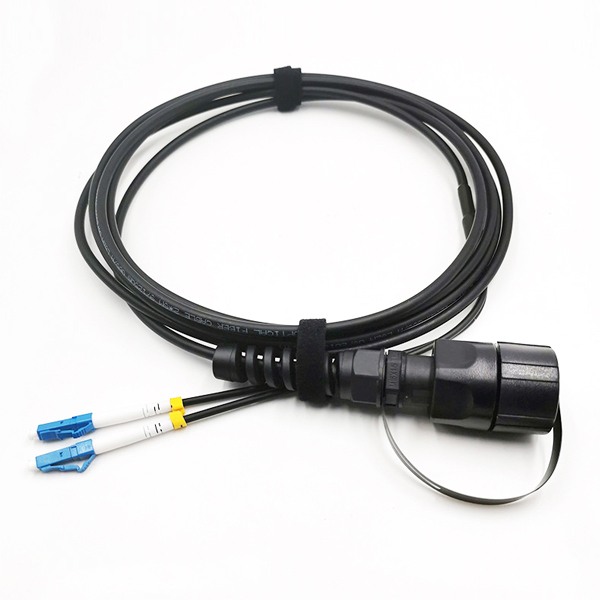

Description

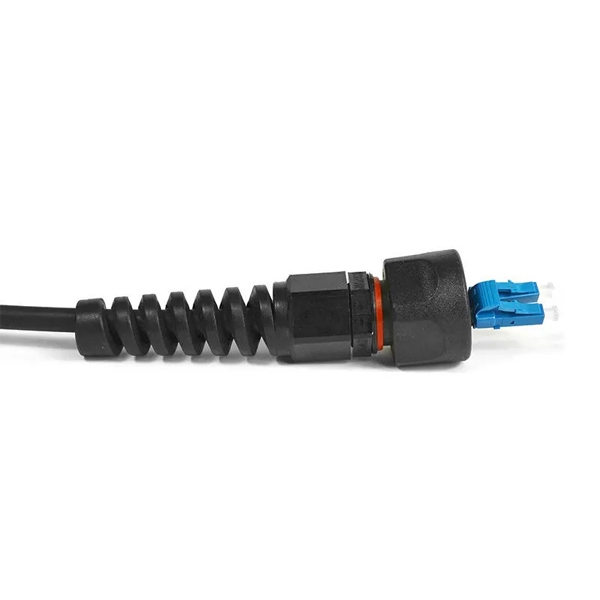

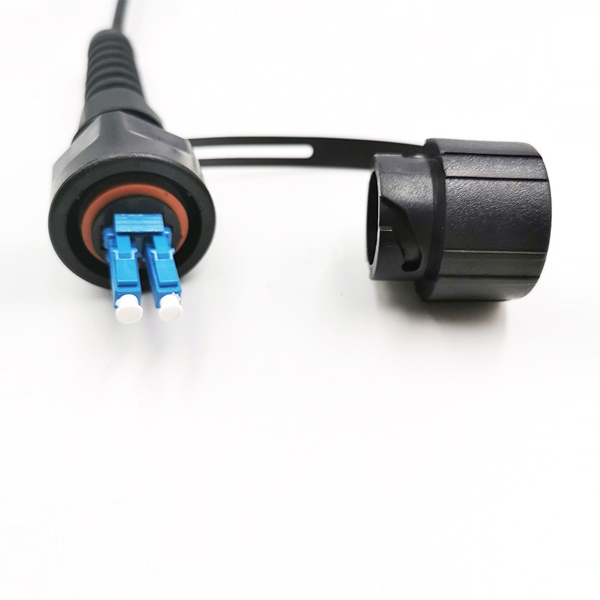

ODVA LC Fiber Cable Features
- Provides moisture and dust protection for use in harsh industrial environments.
- IP67 protection, salt-mist proof, humidity proof, dust proof.
- Sealed panel feed-through design for easy installation into enclosures.
- 100% optically tested to ensure quality performance assemblies.
- Available in single mode and multi-mode styles to work with any common fiber type
- Push-pull insertion with bayonet-style mechanical latch provides easy installation and removal
- Broad temperature range (-40 to+85°C) is ideal for indoor or outdoor applications
- Cost effective cable assemblies custom tailored for field use in harsh environments.
- Light-weight cable reels organize and protect connectors and cable for easy installation and storage.
ODVA LC Fiber Cable Assembly Application
- Distributed antenna systems
- Small sell systems
- Industrial, Oil, Gas station
- Broadcast and Entertainment
- Security, CCTV network
- Other harsh environment applications
LC SC FC ST Optical Connector Characteristics
| Item | Parameter | Reference | |
| Single mode | Multimode | ||
| Insertion loss | Typical value≤0.15dB; Maximum≤0.30 | Typical value≤0.15dB; Maximum≤0.30 | IEC 61300-3-34 |
| Return loss | ≥ 60dB (APC); ≥ 50dB (UPC) | ≥30dB (UPC) | IEC 61300-3-6 |
LC SC FC ST End-Face Geometry
| Item | UPC (Ref: IEC 61755-3-1) | APC (Ref: IEC 61755-3-2) |
| Radius of curvature (mm) | 10 to 25 | 5 to 12 |
| Fiber height (nm) | -100 to 100 | -100 to 100 |
| Apex offset (μm) | 0 to 50 | 0 to 50 |
| APC angle (°) | / | 8° ±0.2° |
| Key error (°) | / | 0.2° max |

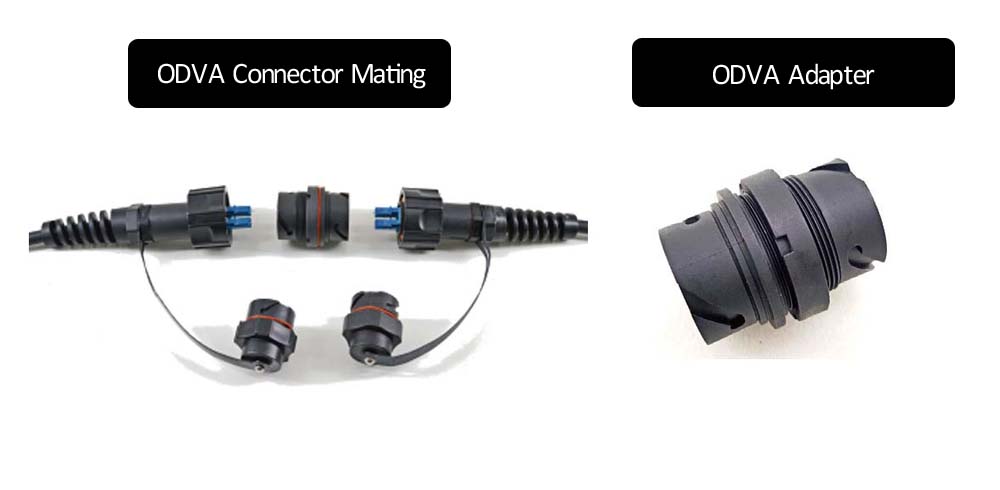

ODVA is an international organization, and its DeviceNet protocol has become an international standard (IEC 62026-3) and a Chinese national standard (GB/T 18858.3-2002). Therefore, ODVA connectors can be used with any device that conforms to this protocol standard, not just a specific brand. Both two ODVA connectors can be connected with a ODVA adapter like above.
Field Cable Structure

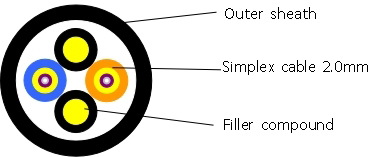

This outdoor waterproof patch cord use 2 cores field tactical cable 7mm outer sheath LSZH, with 2 x 2mm sub-unit optical fibers and 2 x filler compounds.

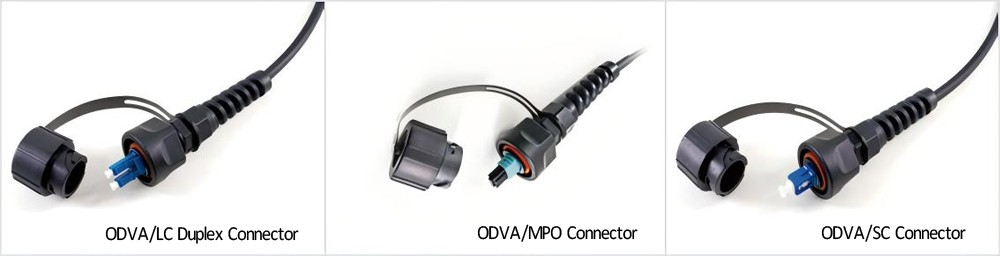

Below ODVA fiber optic connectors are ODVA-LC Duplex, ODVA-MPO, ODVA-SC, which employ a push-pull mating and bayonet mechanical latching structure, achieving an IP67 protection rating. They are suitable for industrial or outdoor environments such as base station communication, outdoor monitoring, control systems, and medical equipment. These connectors require interfacing with devices that support the same protocols and interface standards.
