Description
ODC fiber optic cable assemblies can be customized to different cable lengths and connector combinations to meet specific needs. All standard fiber optic connectors (such as LC, SC, etc.) are compatible.
ODC LC Single Mode Fiber Cable Features
- Eliminating fiber optic splicing allows for plug-and-play operation, shortening construction time and saving costs.
- It enables convenient and quick interconnection between two sockets.
- The copper alloy or stainless steel housing is suitable for use in various harsh environments.
- The threaded locking mechanism ensures a long-term reliable connection.
- The guide mechanism allows for one-handed blind insertion, simple and quick.
- The sealed design provides waterproof, dustproof, and corrosion-resistant properties.
- It is compact, easy to operate, and durable. The through-wall sealing design allows it to be used in various server racks.

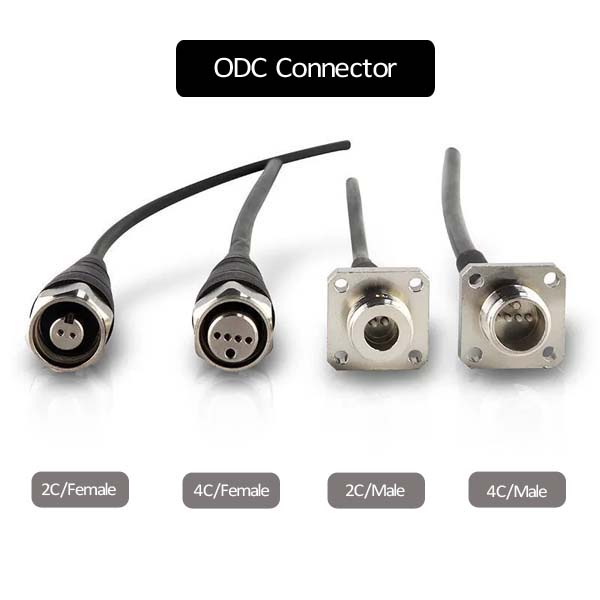

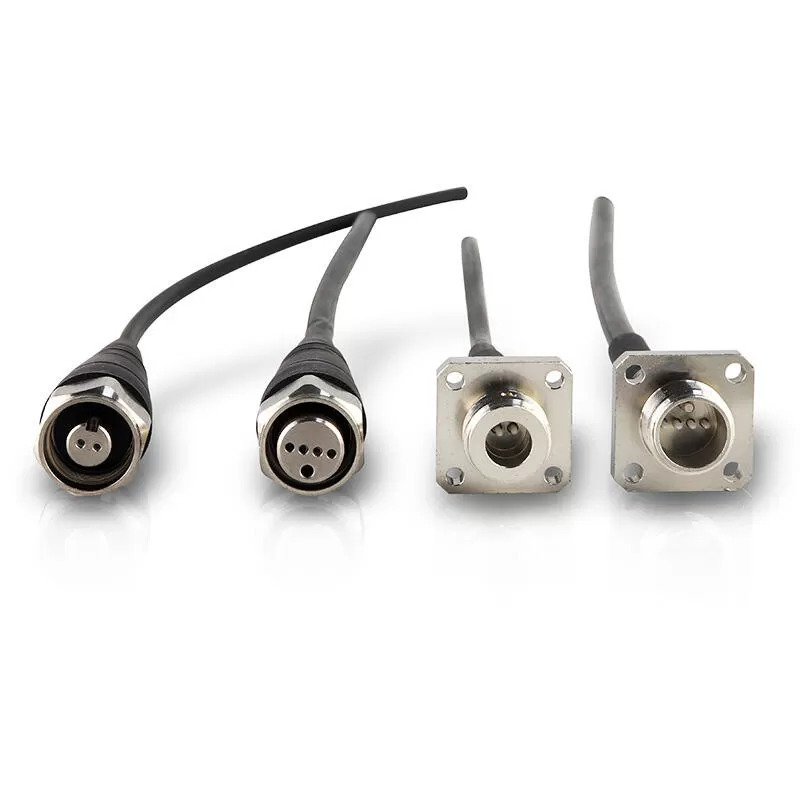

- This connector can be made in 2-core and 4-core configurations with the same external dimensions.
ODC To LC Single Mode Fiber Cable Application
- Fiber optic communication applications in harsh outdoor environments
- Rapid connection between emergency communication equipment
- Military communication equipment connection
- Oil field and mine communication connection
- Remote wireless base station
- Video surveillance system
- Railway signal control application
- Broadcasting and television, fiber optic channels
- EFP fiber optic transmission
- Intelligent substation internal communication
ODC To LC Single Mode Fiber Cable Technical Parameter
| Insertion loss | Single-mode | ≤0.7dB |
| Multi-mode | ≤0.5dB | |
| Return loss | Single-mode | ≥50dB |
| Mechanical properties Operating temperature | ODC Plug | ≤500N (Main Cable) |
| ODC Socket | ≤30N (Branch Optical Cable) | |
| Protection class | -40℃～85℃ | |
| Mechanical properties | IP67 | |
ODC To LC Single Mode Fiber Cable Details

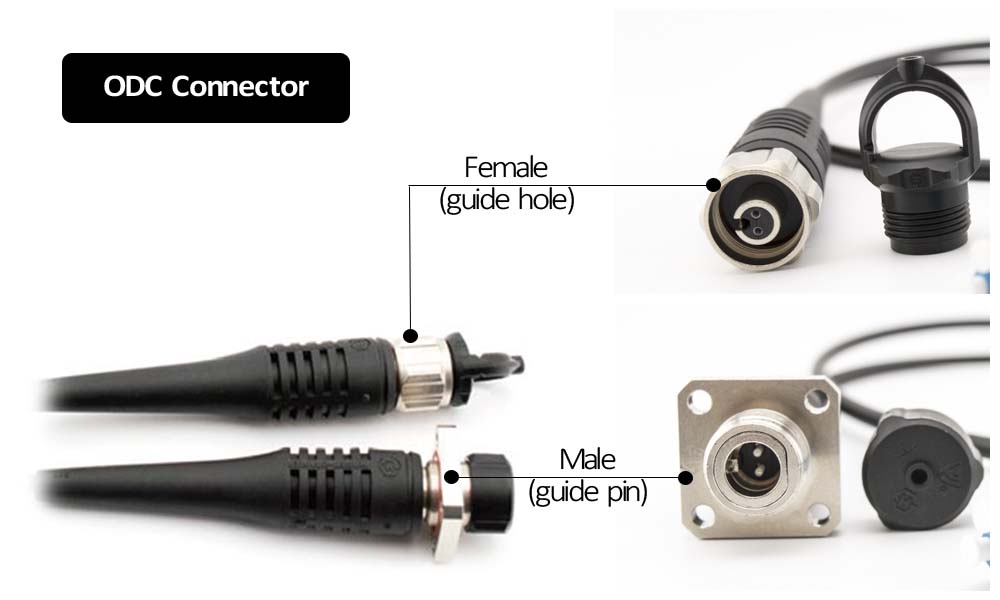

Yingda can offer single mode fiber and multimode fiber optic cables, 2 cores ODC connector with 2 fibers in a line, female connector is 2 guide holes, male connector is 2 guide pins. In actual installation, no ODC adapter is needed; simply connect the female and male connectors directly.
