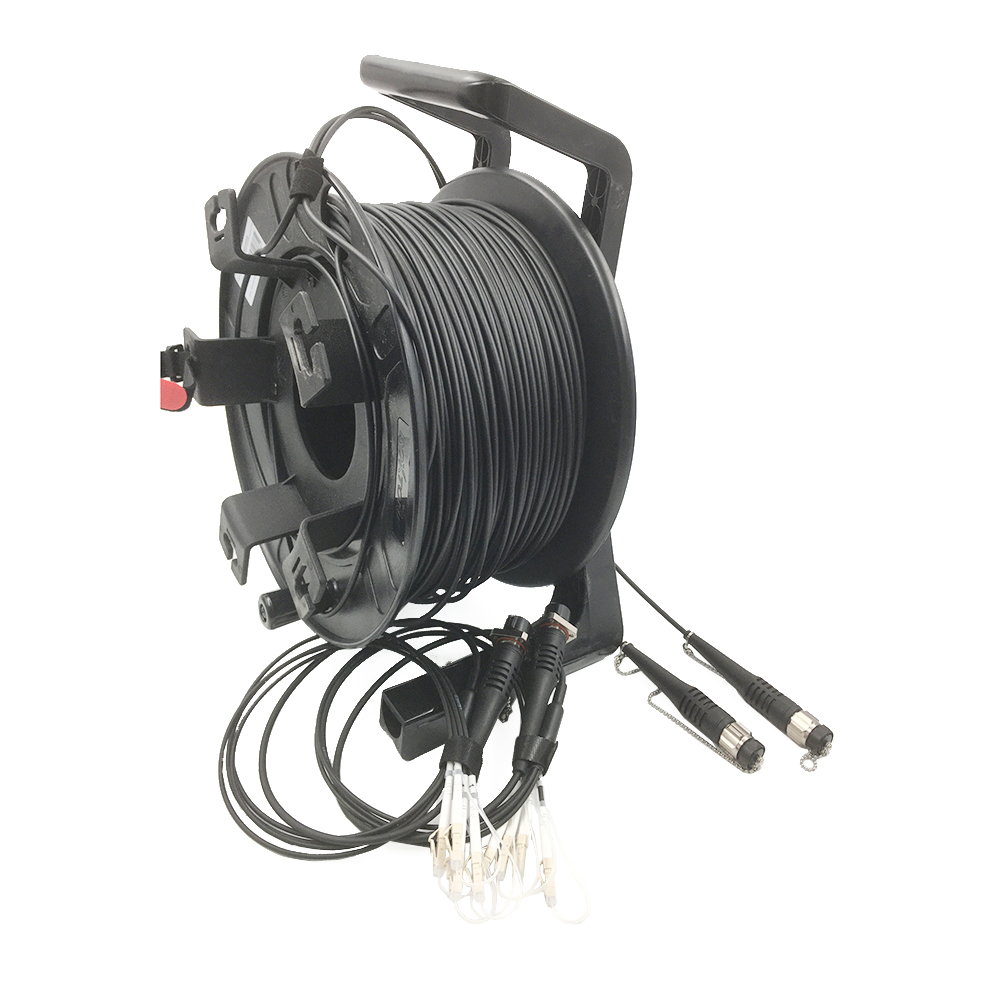

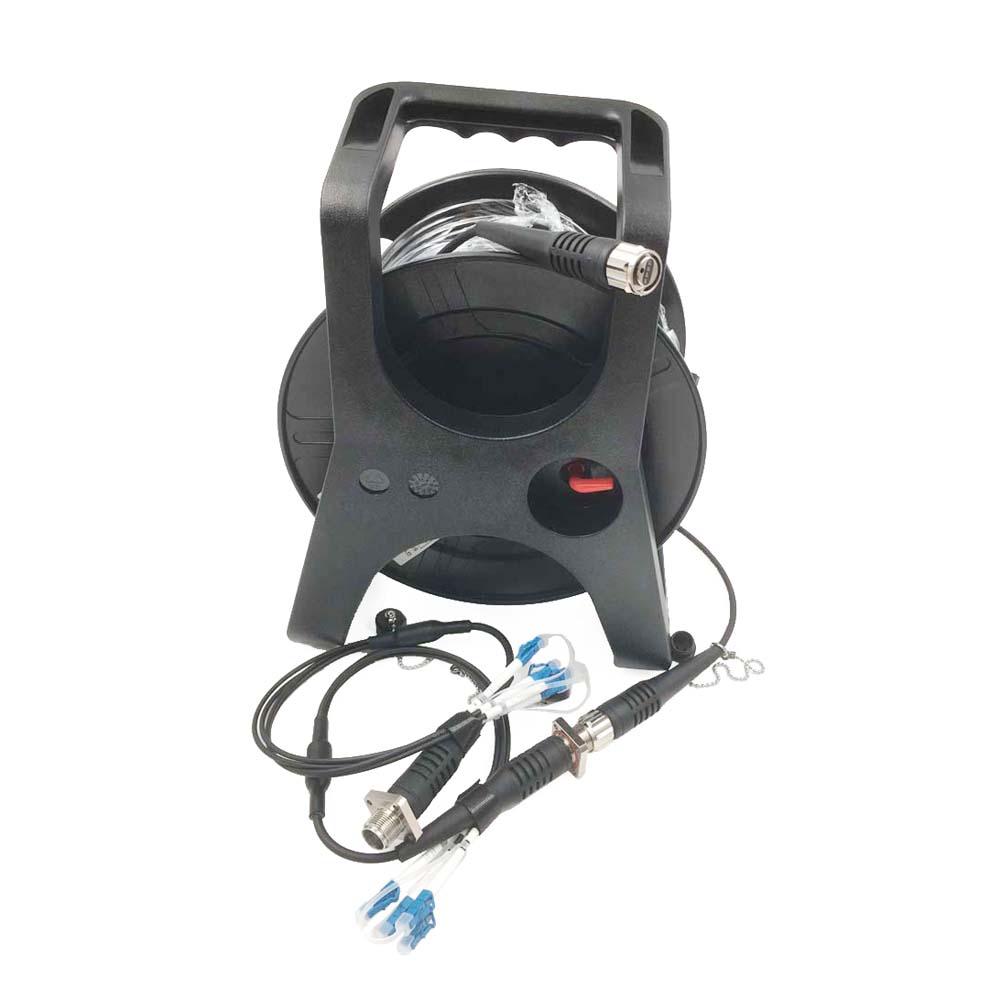

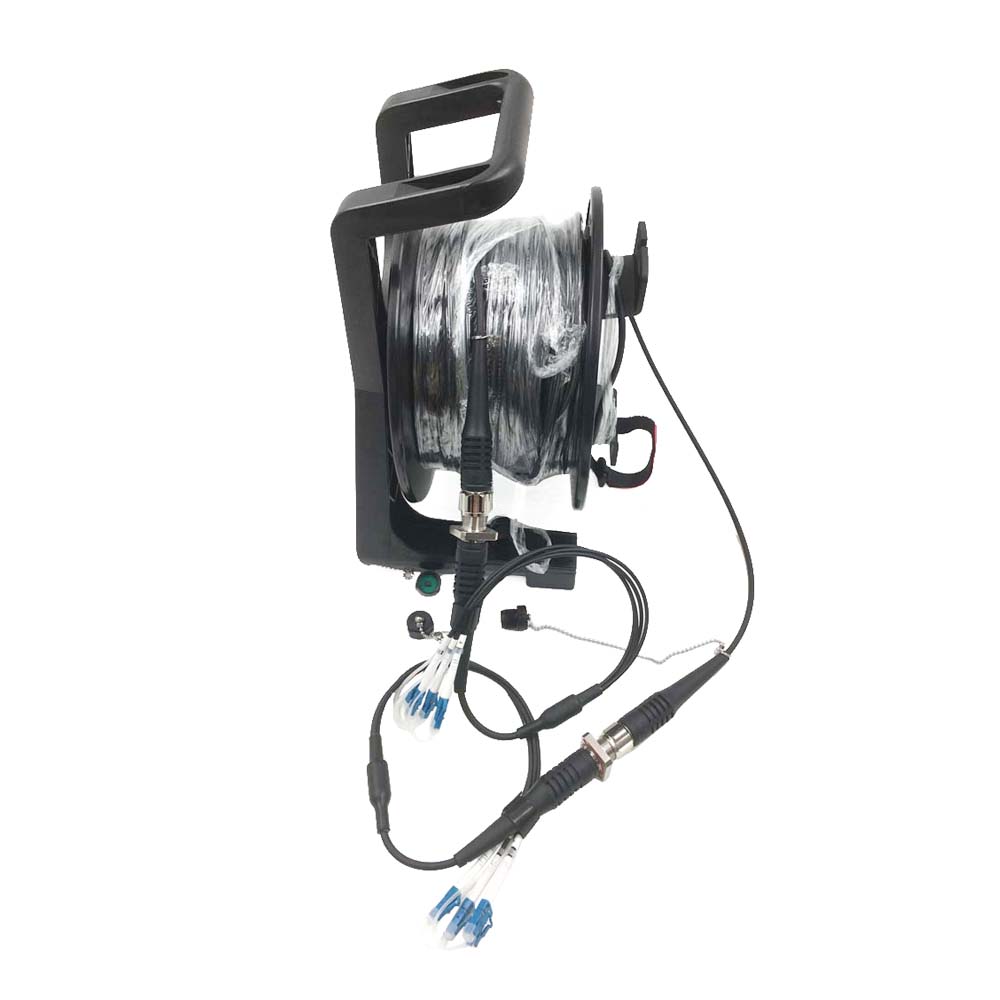

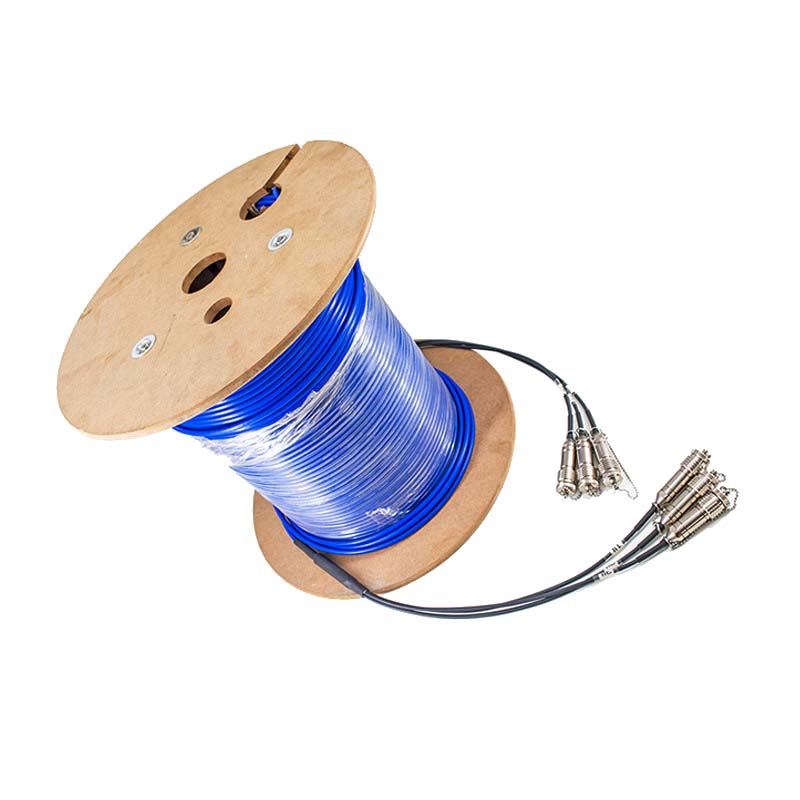

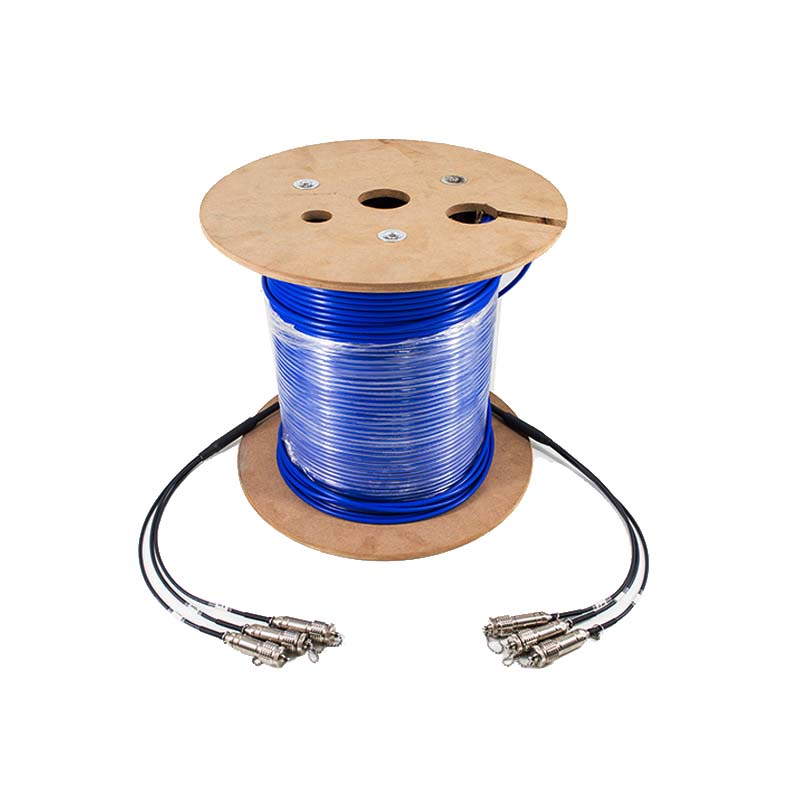

Description

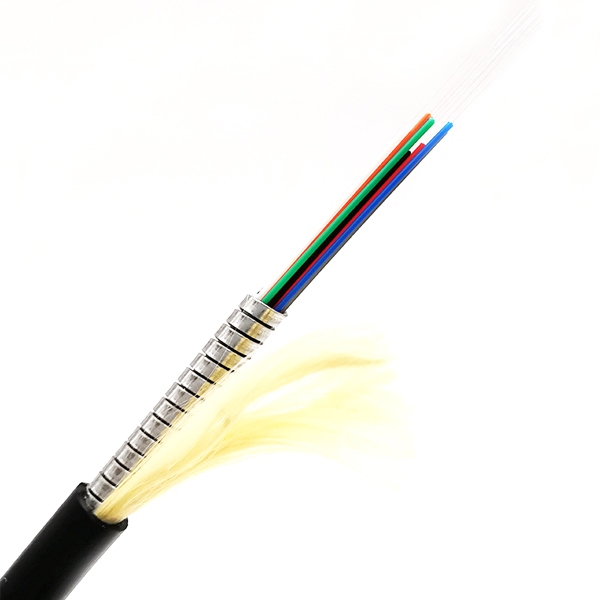

The ODC Connector together with the far transmission cable, are becoming the standard interface specified in 3G, 4G and Wimax Base Station remote radios and FTTA (Fiber-to-the-Antenna) applications.The ODC Cable assemblies have passed testes like salt mist, vibration and shock and meet protection class IP68. They are well suited for Industrial and Aerospace and Defense applications.
ODC Cable Assembly Features
- 2 fibers, single mode or multi mode
- Compact design with 2*1.25mm ferrules
- Built-in socket with square or hexagonal flange
- Extension connector for cable chaining
- Screwed locking mechanism
- Easy and safe installation
- Water proof,dust proof and corrosion resistant
- Water proof protection caps
- EMI protected, RoHs compliant
- Fulfills performance standard IEC 61753-1 Cat.e
ODC Cable Assembly Connector Parameter
| Technology | Full ceramic ferrule and sleeve | |
| Housing material | Nickel plated brass | |
| Mechanical performance | ODC plug | ≤1000 N tensile load≤30 N static side load |
| ODC socket | ≤30 N tensile load | |
| Installation torque force | min.1Nm | max.2Nm |
| Operating temperature | IEC 61300 – 2 – 22 | -40℃ up to +85℃ |
| Mating durability | 1000 cycle | |
| Ingress protection(mate) | IEC60529 | IP 68 |
| Salt mist | IEC61300-2-26 | 30 days passed |
| Vibration | IEC61300-2-1 | Pass 10-500Hz/10g |
| Shock | IEC61300-2-9 | Pass 100g |
ODC Cable Assembly Optical Performance
| Insertion loss
IEC61300-3-34 |
Single mode | Typ. ≤0.30dB | 97% ≤0.45dB |
| Multi mode | Typ. ≤0.30dB | 97% ≤0.50dB | |
| Return loss | Single mode | ≥50dB |

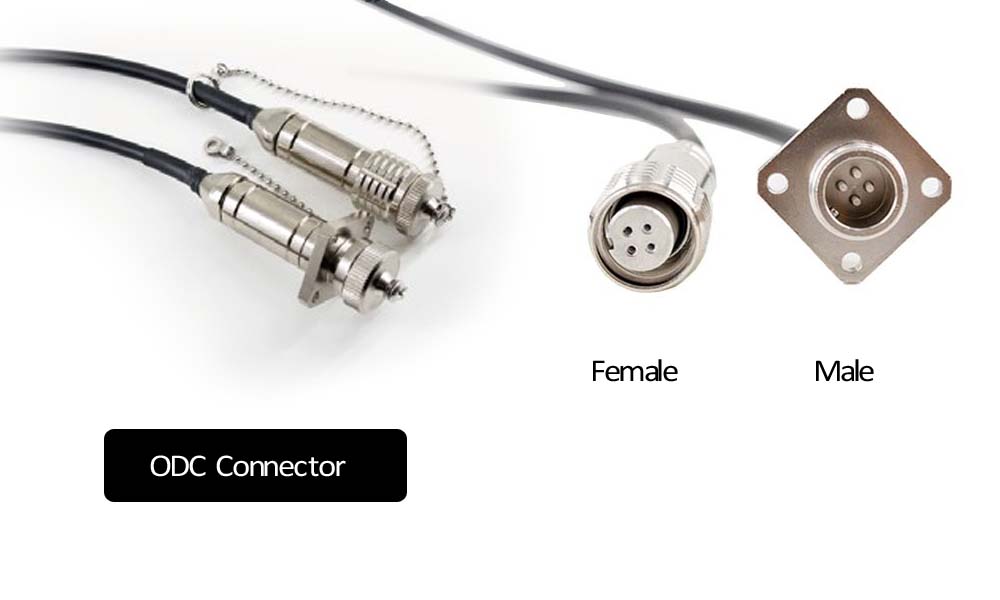

ODC A Type Connector
Compatible Brand: TE, HS, Amphenol, Rosenberger , Ericsson
Feature: Available for 2 or 4 cores , and the ferrules ports are located with mental mechanical technology .
ODC B Type Connector
Compatible Brand: TE, HS, Amphenol, Rosenberger , Ericsson
Feature: Available for 2 or 4 cores , and the ferrules ports are located with plastic modules technology.
