Description
LC To LC Single Mode Fiber Patch Cable Feature
- Robust fiber-optic connector for 2 and 4 channels with screwed mating mechanism
- IP68 protection, salt-mist proof, and EMI protection
- High shock, vibration, and mechanical resistance
- Broad temperature range and wide range of indoor and outdoor cables
- Easy, reliable and cost-effective installation
Uniboot LC/UPC Connector Type
| Type | Reference | Fiber type | Polishing type |
| LC | IEC61754-20 | Single mode duplex | APC: Green connector UPC: Blue connector |
| Multimode duplex | UPC: gray connectors |

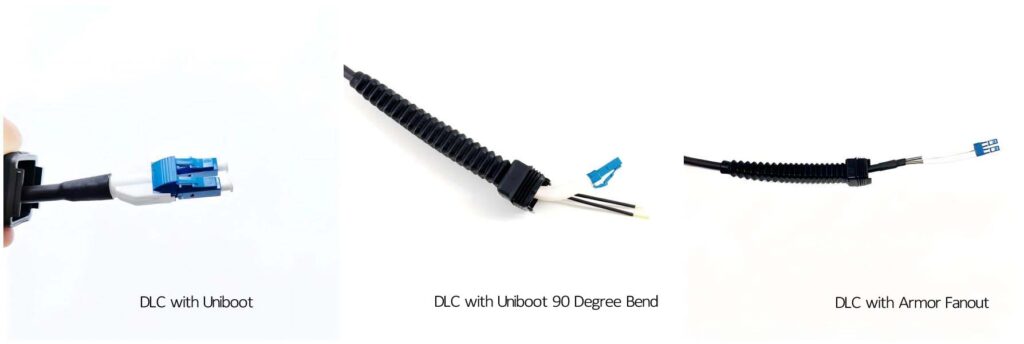

DLC Connector Types
The NSN boot size is fixed, but the internal LC duplex connector can be uniboot or dual boots separately, and the uniboot can be straight type or 90 degree or 45 degree bending. All boots will be configured with customer request. Meanshile, if the cable itself with armor, or if customer need to fanout with armor for better mechanical protection, we can help custom too.
LC To LC Single Mode Fiber Patch Cable Tolerance
| Jumper tolerance requirement | |
| Overall length (L)(M) | Length of tolerance (cm) |
| 0≤L≤20 | ±10 |
| 20≤L≤40 | ±15 |
| L≥40 | ±0.5% |

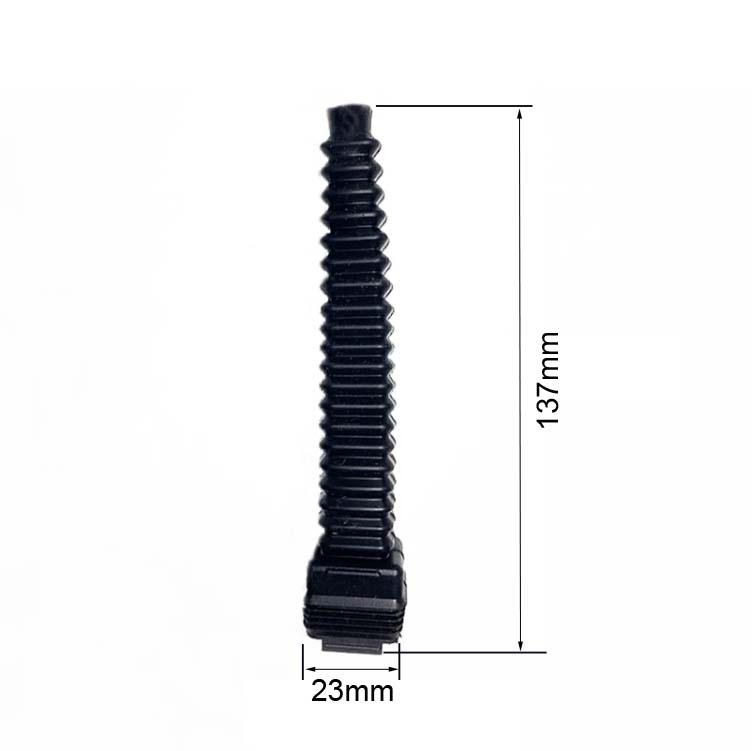

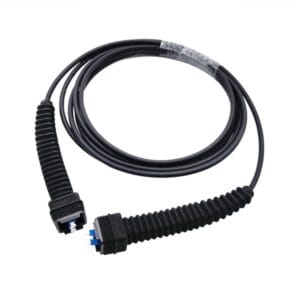

Yingda can add NSN nylon boot at both sides of the short patch cord or only one side. This boot is saqure head with threads, the size is 23*23mm, total length 137mm. The NSN Boot is compatible with Nokia fiber optic equipment interface, the best and lowest cost of CPRI cable assemblies. Yingda will adopt the strictest quality inspection for every one piece of patch cable, and paste the data on the stickers.

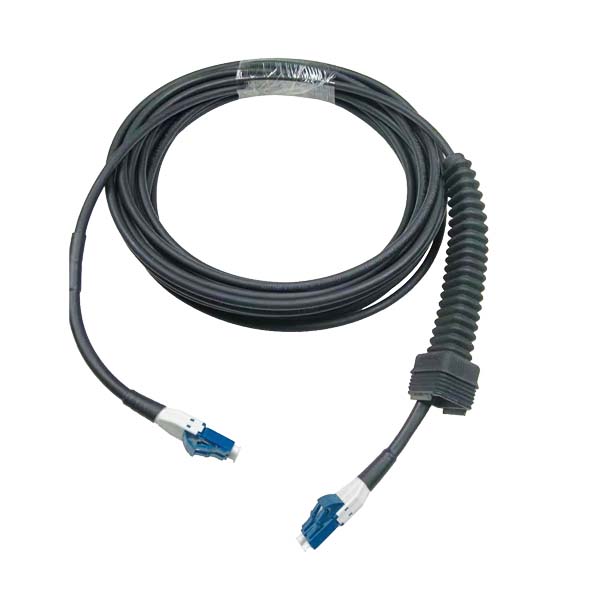

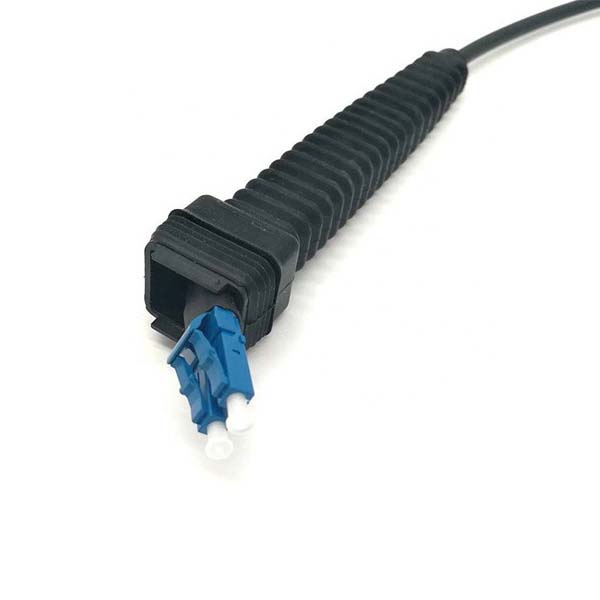

The NSN boot is specially design for 5mm FTTA outdoor cable 2 cores GYFJH, the tail is tightly fit which ensures excellent waterproof performance outdoor use. And we can add LC duplex connectors with uniboot or standard boots with clips. If need other optical fibre connectors, please talk to our sales team.
