Description
SC LC Duplex Patch Cord Feature
- Robust fiber-optic connector for 2 and 4 channels with screwed mating mechanism
- IP68 protection, salt-mist proof, and EMI protection
- High shock, vibration, and mechanical resistance
- Broad temperature range and wide range of indoor and outdoor cables
- Easy, reliable and cost-effective installation
SC LC Duplex Patch Cord Optical performance:
| Product Type | Waterproof Cable | Fiber Type | Singlemode OS2 9/125 |
| Connector1 | IP67 Waterproof NSN (LC/UPC) | Connector2 | SC/UPC |
| Trunk Cable Diameter | 7.0mm | Branch Diameter | 3.0mm |
| Insertion Loss | ≤0.20 dB | Return Loss | UPC≥50dB |
| Storage Temperature | -55°C~+85°C | Operating Temperature | -40°C~+85°C |
Outdoor FTTA Cable Specification
| Fiber Count | Cable Dimension mm | Cable Weight kg/km | Tensile N | Crush N/100mm | Min. Bend Radius mm | Range of Temperature
| |||
| Long Term | Short Term | Long Term | Short Term | Dynamic | Static | ||||
| 2 | 7.0 | 42.3 | 200 | 400 | 1100 | 2200 | 20D | 10D | -30-+70 |
SC LC Duplex Patch Cord Wire Details

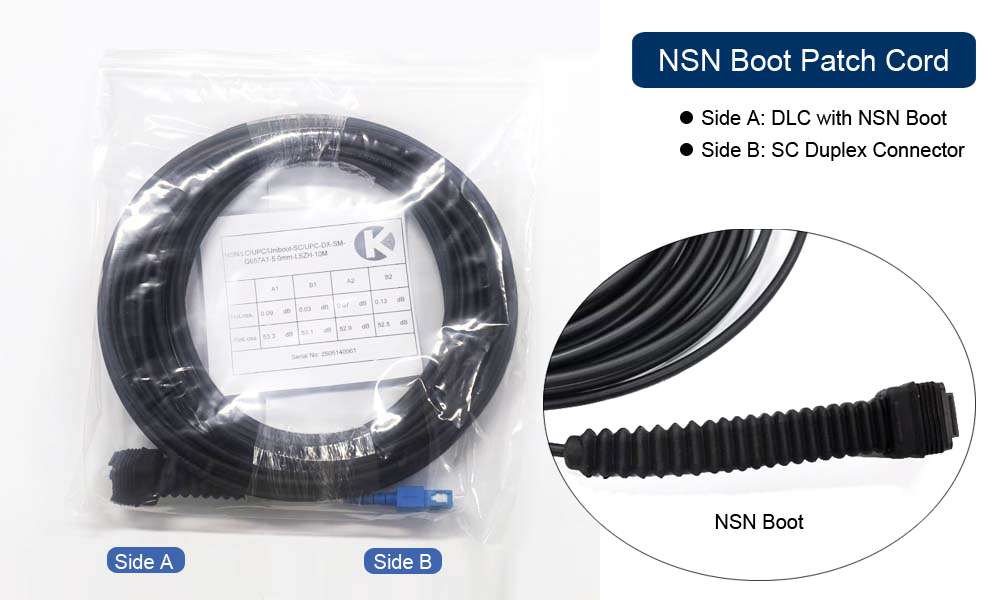

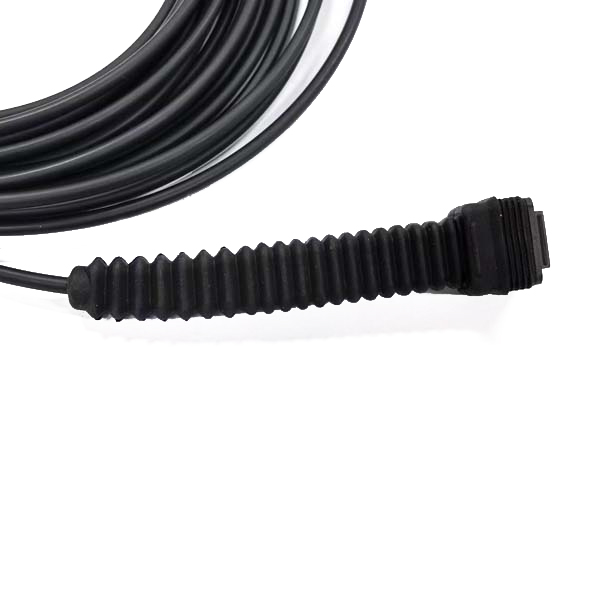

All the NSN patch cords will be pack by plastic bags with test report, the NSN boot is brand new plastic material, with square endface to docking with NOKIA fiber equipments.

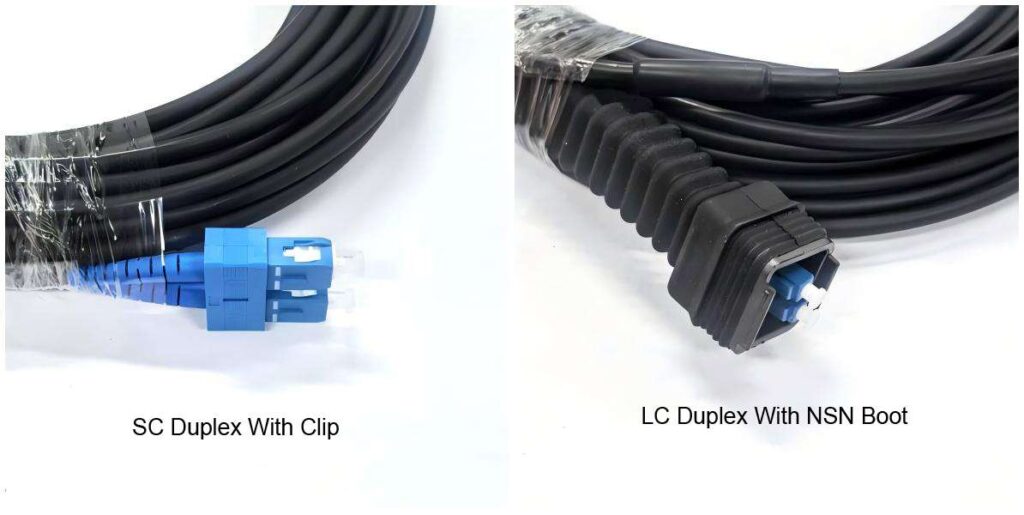

Both sides of the patchcords are standard LC SC connectors, both have clip to hold 2 cores togethers. Blue housing is UPC singlemode connectors with G.652D, G657A, or G657B fibers.

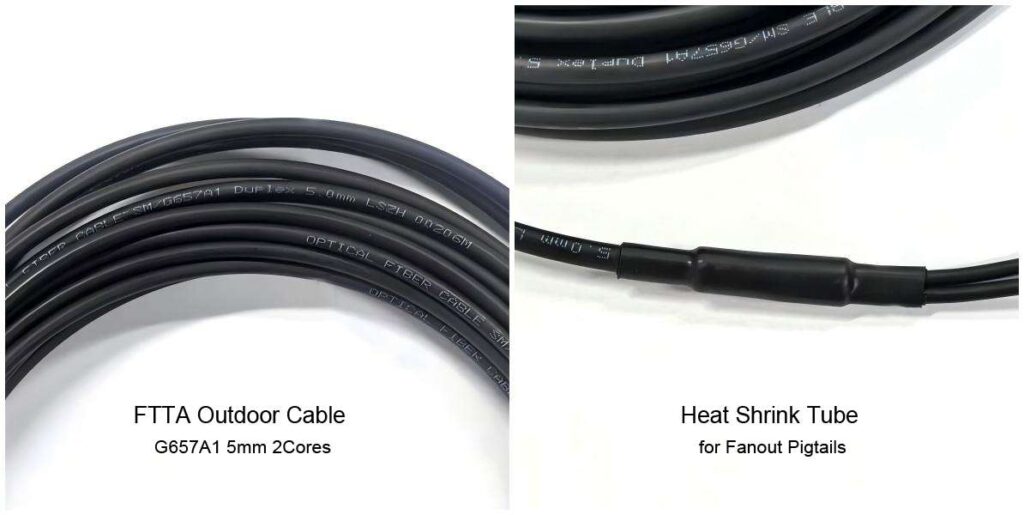

The fiber optic cable mostly used is field tactical cable 5mm with 2 cores fiber units, LSZH outer jacket, black color with anti-UV materials. For the SC side, we will use a heat shrink tube to split the fiber optic cable and then add connectors. For LC side, no need to split the cable, will use LC uniboot connector instead.
