Description
LC LC Multimode Fiber Patch Cord Feature
- Robust fiber-optic connector for 2 and 4 channels with screwed mating mechanism
- IP68 protection, salt-mist proof, and EMI protection
- High shock, vibration, and mechanical resistance
- Broad temperature range and wide range of indoor and outdoor cables
- Easy, reliable and cost-effective installation
Dual LC Connector Type
| Type | Reference | Fiber type | Polishing type |
| LC | IEC61754-20 | Single mode duplex | APC: Green connector UPC: Blue connector |
| Multimode duplex | UPC: gray connectors |
DLC Connector with NSN Boot Dimension Diagram
- NSN Boot 180° duplex LC patch cord
- NSN Boot 90° duplex LC patch cord
LC LC Multimode Fiber Patch Cord Tolerance
| Jumper tolerance requirement | |
| Overall length (L)(M) | Length of tolerance (cm) |
| 0≤L≤20 | ±10 |
| 20≤L≤40 | ±15 |
| L≥40 | ±0.5% |

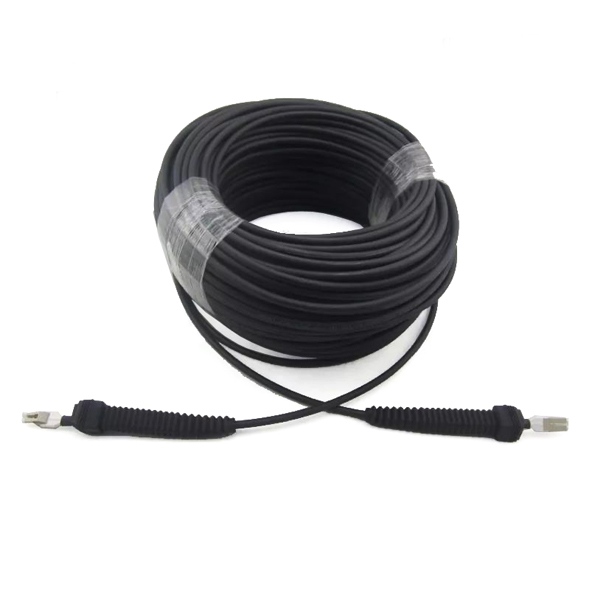

Yingda can add NSN nylon boot at both sides of the short patch cord or only one side. This boot is saqure head with threads, the size is 23*23mm, total length 137mm. The NSN Boot is compatible with Nokia fiber optic equipment interface, the best and lowest cost of CPRI cable assemblies. Yingda will adopt the strictest quality inspection for every one piece of patch cable, and paste the data on the stickers.

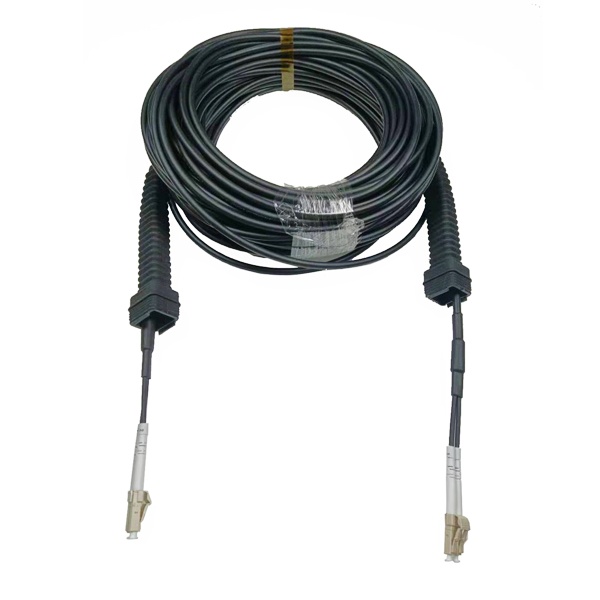

The NSN boot is specially design for 5mm FTTA outdoor cable 2 cores GYFJH, the tail is tightly fit which ensures excellent waterproof performance outdoor use. And we can add LC duplex connectors with uniboot or standard boots with clips. If need other optical fibre connectors, please talk to our sales team.
