Description

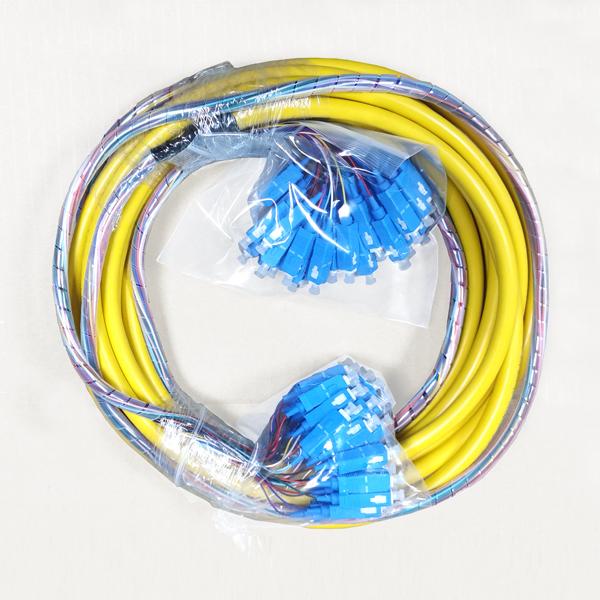

Pre connectorized multi fiber patch cable is called Bunchy Distribution patch cable or Mini breakout patch cable. It’s suitable for laying in buildings, primarily in cable conduits and cable trays for direct connector assembly with no need for splice connectors.
Multi Fiber Patch Cord Connector’s Standards:
Telcordia GR-326, IEC61300, IEC61300-2, IEC61754-20, ROHS and UL94 V0, etc.
Distribution Patch Cable Application: FTTH, FTTB, Security Monitor, Intelligent broadband, etc.
Multi Fiber Patch Cord Features
- 100% pre-terminated and test in factory before delivery to ensure high quality.
- Rapid configuration and networking, reduce installation time.
- Supports 40G and 100G network applications.
- Low insertion loss and added loss.
- RoHS and REACH materials compliant.
- End-face geometry and quality superior than IEC and Telcordia standards.
- Supports up to 8F, 12F, 24F, 48F, 72F, 96F, 144F, or custom
- Package by plastic bag, plastic film or blister box or cardboard reel
Multi Fiber Patch Cord Specification
Connector | LC/APC | Jacket OD(mm) | 22mm |
Fiber mode | 9/125um | Jacket color | yellow |
Polish method | APC | Wavelength | 1310/1550nm |
Cable type | Multi-fibers breakout 2.0mm unit cable | Jacket material | PVC |
Insertion loss | ≤0.3dB (IEC grade C) | Insertion loss | ≤0.12dB (IEC grade B) |
Return loss | SM APC≥65dB(min) | Interchangeability &vibration | ≤0.2dB |
Operating temperature | -40~+75°C | Storage temperature | -40~+85°C |
Fiber Optic Connector End-face quality (Single mode)
Zone | Range (um) | Scratches | Defects | Reference |
A:core | 0-25 | none | none | IEC61300-3-35:2015 |
B:cladding | 25-115 | none | none | |
C: adhesive | 115-135 | none | none | |
D:contact | 135-250 | none | none | |
E: rest of ferrule | none | none |
Multi Fiber Optic Cable Distribution Tight Buffer(GJFJV)Technical Parameter
Cable Count | Outside Diameter |
Tight buffer Diameter |
Weight | Minimum allowable Tensile Strength (N) |
minimum allowable Crush Load (N/100mm) |
Minimum Bending Radius (MM) |
Storage temperature |
|||
(MM) | (MM) | (KG) | short term | long term | short term | long term | short term | long term | (℃) | |
02 | 3.0 | 0.9 | 15.00 | 600 | 200 | 1000 | 200 | 20D | 10D | -20+60 |
04 | 4.0 | 0.9 | 22.00 | 600 | 200 | 1000 | 200 | 20D | 10D | -20+60 |
06 | 4.0 | 0.9 | 23.00 | 600 | 200 | 1000 | 200 | 20D | 10D | -20+60 |
08 | 5.0 | 0.9 | 27.00 | 600 | 200 | 1000 | 200 | 20D | 10D | -20+60 |
10 | 5.5 | 0.9 | 30.00 | 600 | 200 | 1000 | 200 | 20D | 10D | -20+60 |
12 | 6.0 | 0.9 | 35.00 | 600 | 200 | 1000 | 200 | 20D | 10D | -20+60 |
