Description
15dB Attenuator Features
- Adopt high attenuation fiber with the cladding mode suppression design
- Excellent optic performance
- Easy connection with plug-in type structure
- Attenuation precise and high return loss
- In accordance with Bellcore (GR-910-Core) standard
- Wide attenuation 0dB ~ 30 dB
MU Attenuator Application
The build out attenuator can be widely in optical power pre-equalization, EDFA input protection, or wherever stable attenuation is required in telecommunication networks or fiber optic testing facilities.
MU Attenuator Optical Parameters
| Product name | MU Build out attenuator | |
| Polish method | UPC or APC | PC |
| Fiber type | Single mode (SM 9/125um) | Multi mode (50/125um) Multi mode (62.5/125um) |
| Operating wavelength | 1310&1550nm | 850&1300nm |
| Return loss | UPC≥50dB, APC≥60dB | ≥35dB |
| Attenuation range | 0-30dB (1 step) | |
| Tolerance | 0-9dB:±0.5dB | |
| 10-20dB:±10% | ||
| Repeatability | ≤0.1dB | |
| Interchangeability | ≤0.2dB | |
| Max optical power | ≤200mW | |
| Working temperature | -40 0C~+750C | |
| Storage temperature | -40 0C~+850C | |

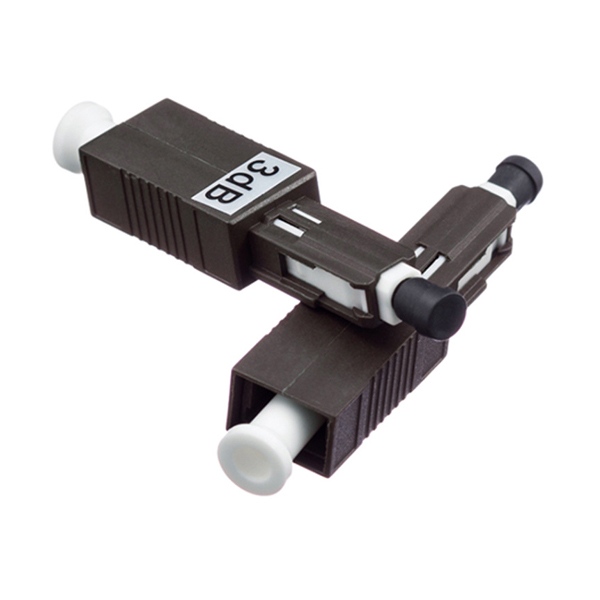

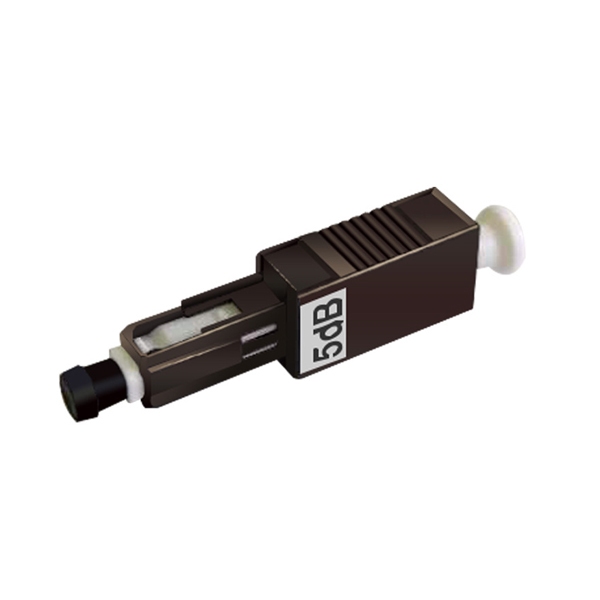

MU Attenuator Details
The attenuation value of MU attenuator is fixed (e.g., 5dB, 10dB), the insertion loss is low (≤0.2dB), and the structure is simple and low-cost. We can use sticker or laser mark the attenuation value on the product itself.
