Description
Compared with traditional attenuation methods that require multiple independent attenuator to be applied separately to different optical signal channels, the network composition design of this product is significantly simplified; at the same time, it can reduce the operable space and save installation time. It meets relevant standards such as TIA/EIA604-5, IEC61754-7, and complies with RoHS standards.
MPO Attenuator Features
- Exquisite appearance and tight structure
- Meets TIA/EIA standards 604-5 and IEC61754-7
- Load ROHS standard
- Following the 40G/100Gbps protocol
MPO Attenuator Application
- Data center infrastructure
- Optical transmission system
- Cloud computing network
- Fiber optic communication network
- QSFP optical transceivers
MPO Attenuator Specification
| Model | YDAT-MPO-OS2-12F |
| Working wavelength | 1310/1550nm |
| Fiber type | Single mode fiber |
| Attenuation accuracy | ±1dB (Attenuation range:2-10dB) ±10% (Attenuation range:11-20dB） |
| Return loss | 60 dB |
| Working temperature | 0 ~ 75℃ |
| Attenuation range | 1-20dB |
| Dimension(L*W*H) | 25.3*16.2*5.9mm |
MPO Attenuator Details

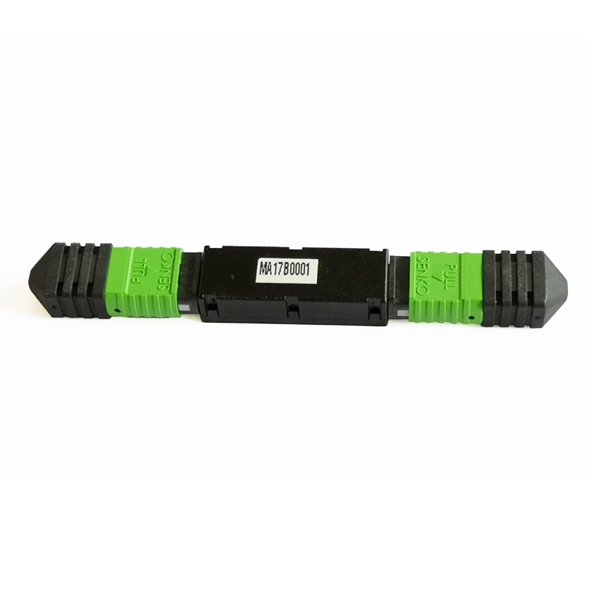

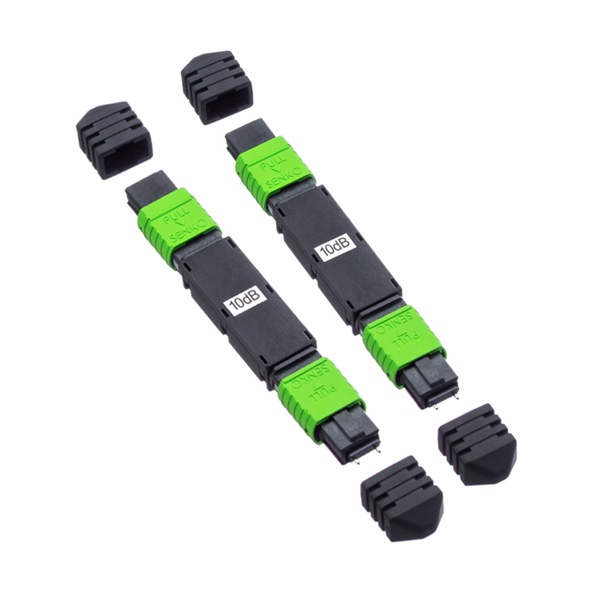

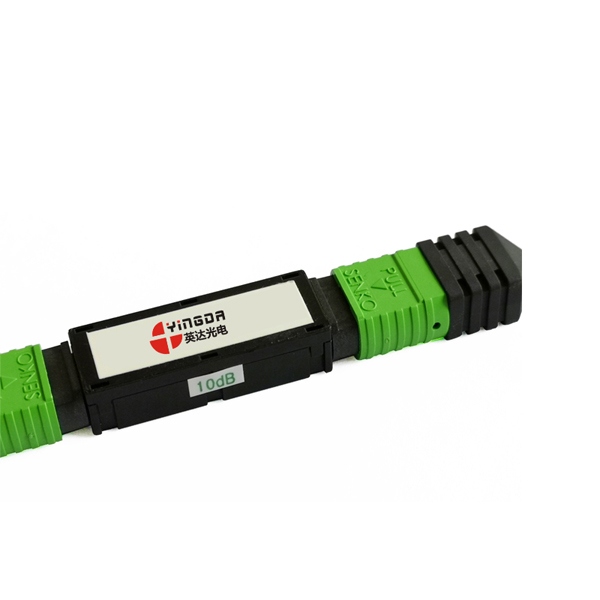

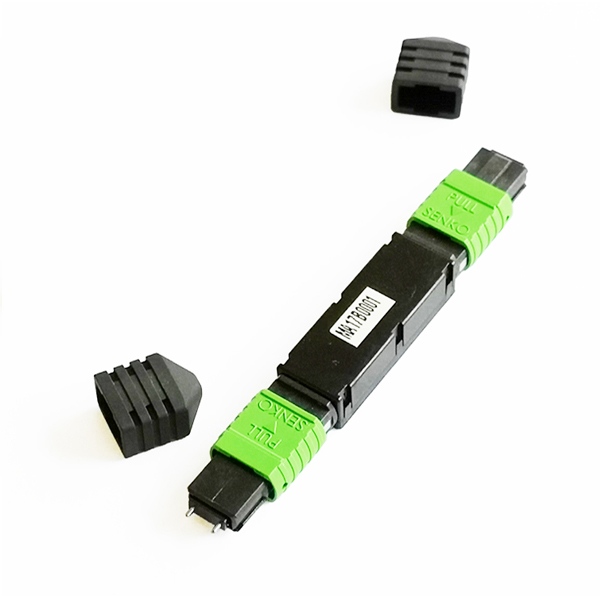

This MPO attenuator is female to famale interface, with dust caps at both ends, you can custom labels for attenuation value, manufacturer name, part no. etc on the product if you need.
Yingda can offer several types of MPO attenuators, famale to female type, famel to male type, and loopback types.
And can use singlemode fiber and multimode fiber, singlemode with green or yellow main body housing, while multimode with aqua housing.
| MPO Loopback Attenuator | MPO Attenuator, Female to Female |
 |  |
