Ieee802.3z Standard Mode Conditioning Single Mode to Multimode Fiber Patch Cord SC SM – ST MM Duplex, Max. 300m Building Cable Plant With Patch Panels

Mode Conditioning single mode to multimode fiber patch cord (50/125um or 62.5/125um) are made for use in Gigabit Ethernet 1000BASE-LX application. When deploying new high-speed 1000BASE-LX routers and switches in existing Multimode backbones, Mode Conditioning Cables are a must. Our Mode Conditioning Fiber Optic Cables allow 1000BASE-LX Ethernet to be run over a Multimode fiber optic backbone by offsetting signal loss. All Mode Conditioning Fiber Optic Cables from the YINGDA PHOTONIC are IEEE 802.3z compliant and completely eliminate Differential Mode Delay (DMD).

Description

Mode Conditioning Single Mode to Multimode Fiber Patch Cord Features

  • Meets IEEE802.3z requirements
  • Can suppress mode delay very well
  • Low access loss <0.5dB
  • Provide 50um or 62.5um multi-mode fiber

Mode Conditioning Single Mode to Multimode Fiber Patch Cord Specification

Connector LC SC ST FC MTRJ
Fiber mode 9/125um, 62.5/125um, 50/125um OM3
Insertion loss SM-MM<0.3dB, MM-SM<15dB
Interchange ability <0.3dB
Temperature -40~+80°C
Tensile strength 10kgf

Mode Conditioning Single Mode to Multimode Fiber Patch Cord Details

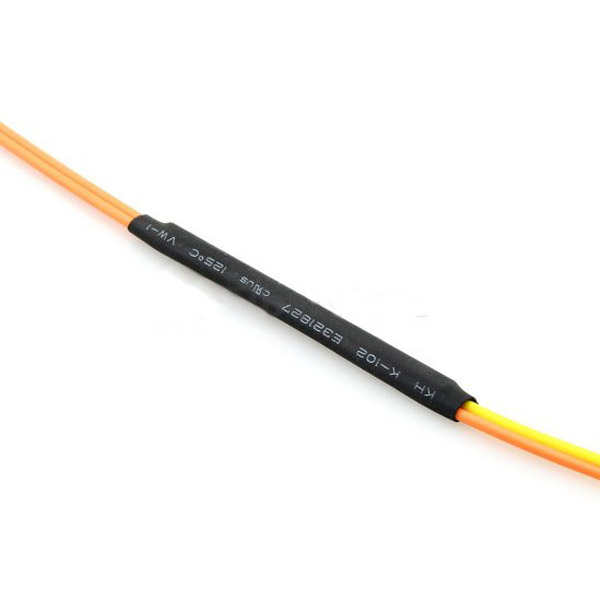

The mode conditioning structure is like above, it is widely used  in fiber optic communication systems where mode field conversion is required between optical devices or between optical networks and optical devices. After mode conversion, the required fiber mode field signal is obtained after adjustment by power amplifiers and other devices.

ieee802.3z standard mode conditioning patch cord sc sm st mm duplex multimode fiber 50/125um, max. 300m building cable plant with patch panels

Yingda custom all types of fiber optic connectors at both ends of the mode conditioning patch cables: SC LC FC ST E2000 MTRJ MU, etc, and the fiber optic multimode cable can be choose from OM1 OM2 OM3 OM4 OM5 with diameter 2mm or 3mm. The cable color and connector color will be made according to TIA standards.

ieee802.3z standard mode conditioning single mode to multimode fiber patch cord sc sm st mm duplex, max. 300m building cable plant with patch panels
