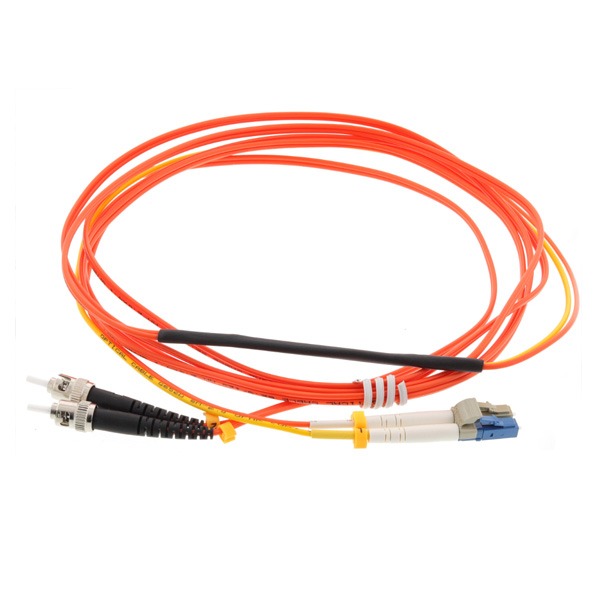

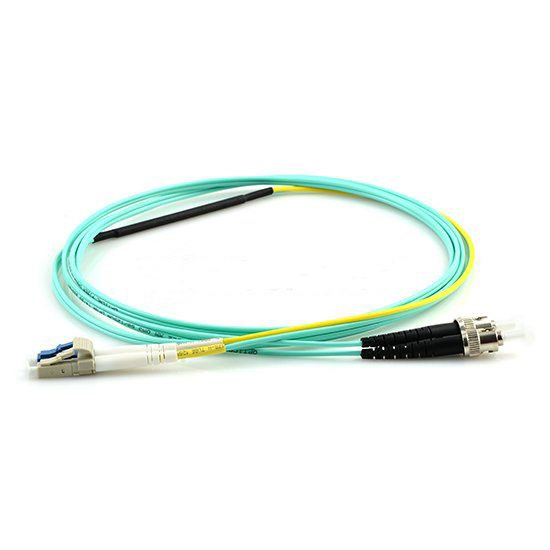

Duplex Fiber Optic Mode Conditioning Patch Cable (50/125um or 62.5/125um) are made for use in Gigabit Ethernet 1000BASE-LX application. When deploying new high-speed 1000BASE-LX routers and switches in existing Multimode backbones, Mode Conditioning Cables are a must. Our Mode Conditioning Fiber Optic Cables allow 1000BASE-LX Ethernet to be run over a Multimode fiber optic backbone by offsetting signal loss. All Mode Conditioning Fiber Optic Cables from the YINGDA PHOTONIC are IEEE 802.3z compliant and completely eliminate Differential Mode Delay (DMD).
| Connector | LC SC ST FC MTRJ |
| Fiber mode | 9/125um, 62.5/125um, 50/125um OM3 |
| Insertion loss | SM-MM<0.3dB, MM-SM<15dB |
| Interchange ability | <0.3dB |
| Temperature | -40~+80°C |
| Tensile strength | 10kgf |
The mode conditioning structure is like above, it is widely used in fiber optic communication systems where mode field conversion is required between optical devices or between optical networks and optical devices. After mode conversion, the required fiber mode field signal is obtained after adjustment by power amplifiers and other devices.

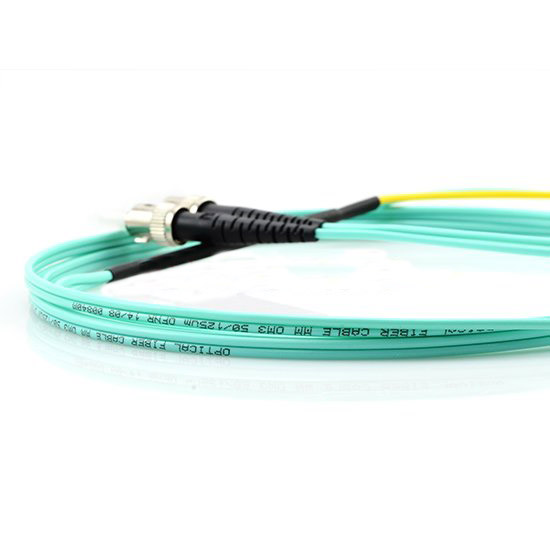

The mode conditioning protection part can be heat shrink sleeve or stainless steel tube with heat shrink protection tube at both ends, which is flexibile and good performance.
Yingda mainly provides conversion between single-mode SM9/125um and multi-mode 50/125um or 62.5/125um and makes them into fiber jumpers. The optical fiber connectors can be equipped with SC FC ST LC MU MTRJ SMA and other connectors according to customer requirements.
EXW, FOB, CFR, CIF, DDU, DDP, CPT are optional.
TT, Paypal, Escrow, Alipay, Wechat are optional, no credit.
Yingda accept small bulk order, and sample order. If retailer, please consult our fiber optic distributor in local.
Yingda support team working time: 9am-18pm from Monday to Friday, but AI robot will be always online, you can leave message, will get back to you on the first sight your mails.
If urgent, please CHAT ON WhatsApp:+8618688982406
Yingda productivity is high efficiency, very fast. Normally 2-15 days on different quantity. Let's talk for more details.
Yes, we can do pack or assembly like your requirements, please specify details in purchase order.
High productivity efficiency, skilled front-line operators and strict production control ensure timely delivery.
High-precision testing equipment and top industry quality control system ensure high quality standards.
Long-term stable supply chain and cost control that changes in line with market trends ensure the best price
The more details, the better offer.
