Description
Yingda mode conditioning fiber optic cables allow 1000BASE-LX Ethernet to be run over a multimode fiber optic backbone by offsetting signal loss. All mode conditioning fiber optic cables from YINGDA are IEEE 802.3z compliant and completely eliminate Differential Mode Delay (DMD).
Mode Conditioning Patch Cord Features
- High-quality ferrule
- Low insertion loss, high return loss
- Excellent interchangeability and durability
- Wide variety of options
- Compliant with Telcordia GR-326-CORE
Mode Conditioning Patch Cord Applications
- Local area network cabling between different corporate buildings
- Optical link interconnection in optical active equipment
- Wiring within communication base stations and distribution cabinets
- Suitable for applications requiring mode field conversion
- Optical device production and testing
- Fiber optic communication systems, cable television networks, telecommunications networks
- Local area networks (LANs), wide area networks (WANs), and fiber-to-the-telecom (FTTX)
Mode Conditioning Patch Cord Specification
| Insertion loss | Light source transmission direction | Test wavelength | Loss value |
| A→B | 850nm, 1300nm | Max.≤0.3dB | |
| B→A | 850nm, 1300nm | Max.≤0.3dB | |
| C→D | 850nm, 1300nm | ≤15dB(50/125um),≤18dB(62.5/125um) | |
| D→C | 850nm, 1300nm | Max.≤0.3dB | |
| C→D | 1310nm, 1550nm | ≤2.1dB(50/125um),≤2.6dB(62.5/125um) | |
| Return loss | APC≥60dB,UPC≥50dB,PC≥35dB | ||
| Plug-in performance | ≤0.2dB typical change, 1000matings | ||
| Vertical pull strength | Loss change after 1000 plugging and unplugging is ≤0.2dB | ||
| Operating temperature | -20 ~+70℃ | ||
| Storage temperature | -40 ~+85℃ | ||
Mode Conditioning Patch Cord Details
The mode conditioning structure is like above, it is widely used in fiber optic communication systems where mode field conversion is required between optical devices or between optical networks and optical devices. After mode conversion, the required fiber mode field signal is obtained after adjustment by power amplifiers and other devices.

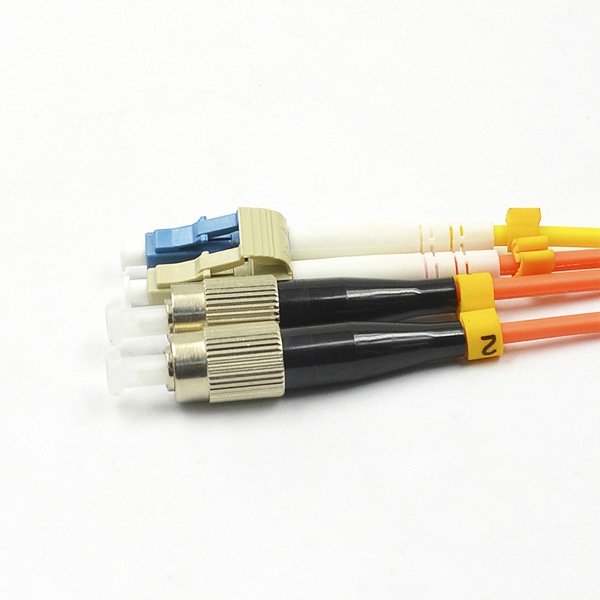

Yingda custom all types of fiber optic connectors at both ends of the mode conditioning patch cables: SC LC FC ST E2000 MTRJ MU, etc, and the fiber optic multimode cable can be choose from OM1 OM2 OM3 OM4 OM5 with diameter 2mm or 3mm. The cable color and connector color will be made according to TIA standards.
