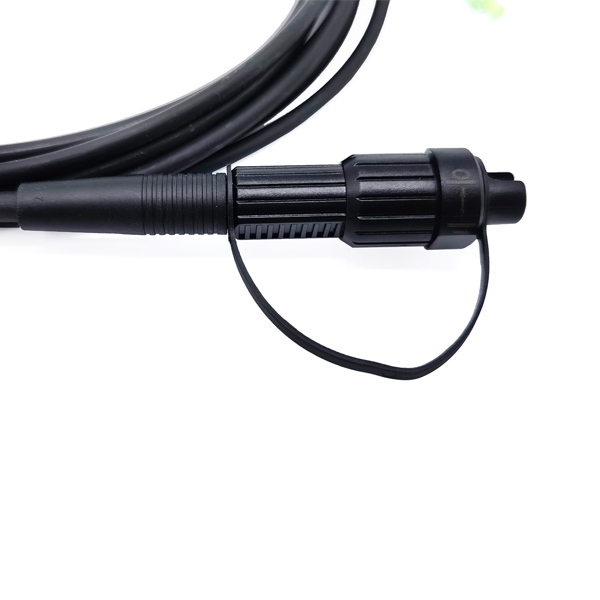

SC To SC Single Mode Fiber Patch Cable Features
- Spiral clamping mechanism ensures long-term reliable connection
- Guide mechanism, can be blinded with one hand, simple and quick, connect and install
- Seal design: It is waterproof, dust-proof, anti-corrosion, anti-UVand so on
- Mechanical performance: IEC 61754-4 standard, material ROHS, REACH compliant.
- Compact size, easy to operate, durable
- Through the wall seal design
- Reduce welding, connect directly to achieve interconnection
SC To SC Fiber Patch Cable Application
- Fiber optic communications in harsh outdoor environments
- Outdoor communication equipment connection
- Huawei waterproof fiber equipment SC port
- Remote wireless base station
- FTTx wiring project
Single Mode Fiber Patch Cable Structure
| Cable count | Out sheath diameter (mm) | Weight (kg) | Min. Allowable tensile strength (N) | Min. Allowable crush load (N/100mm) | Min. Bending radius (mm) | Storage temperature (0C)
| |||
| Short term | Long term | Short term | Long term | Short term | Long term | ||||
| 1 | 5.0±0.2 | 26.5 | 800 | 400 | 2000 | 1000 | 20D | 10D | -20~+60 |

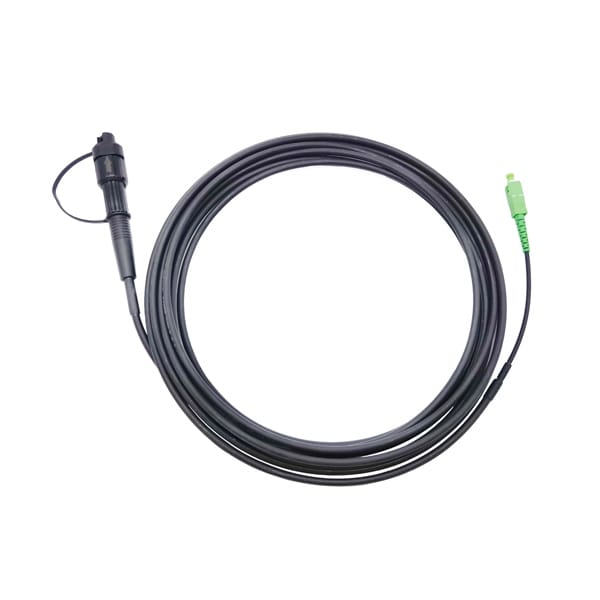

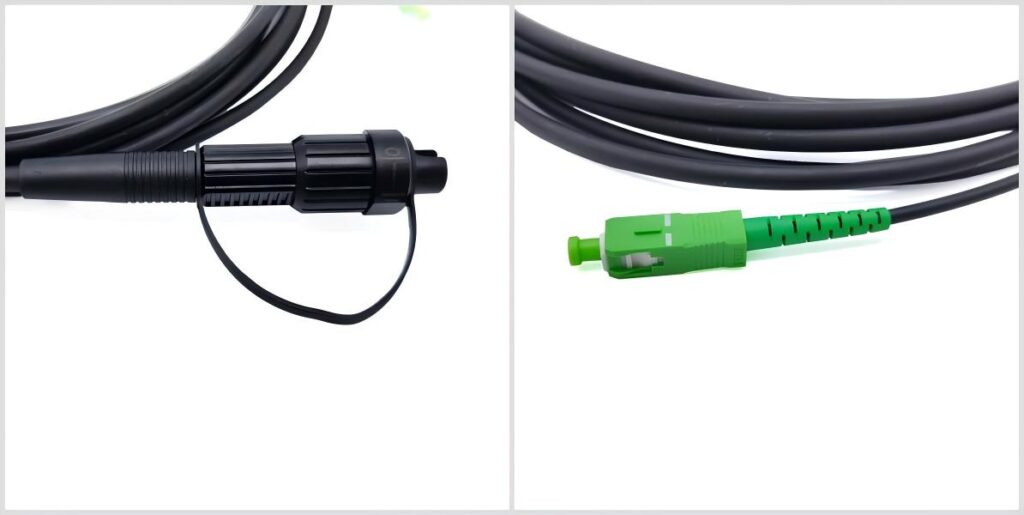

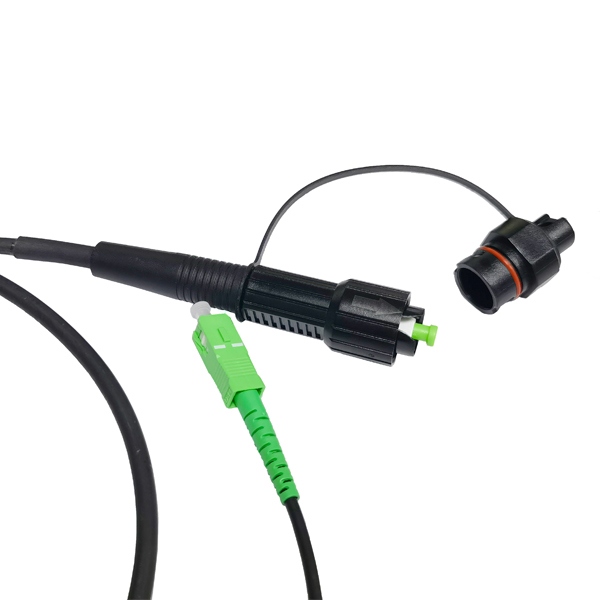

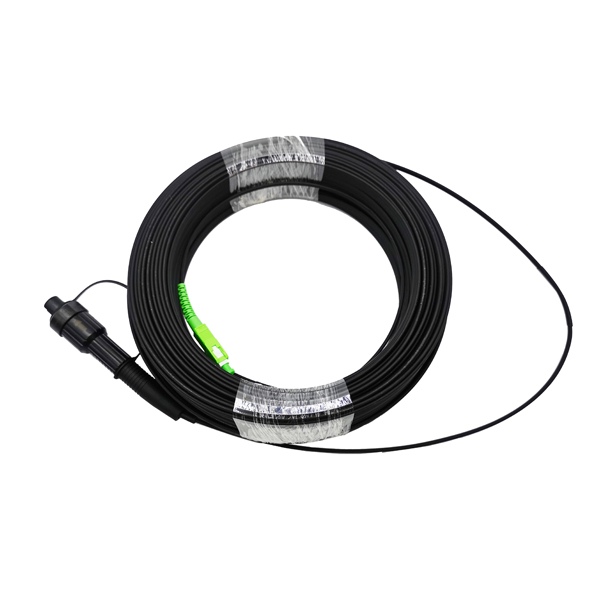

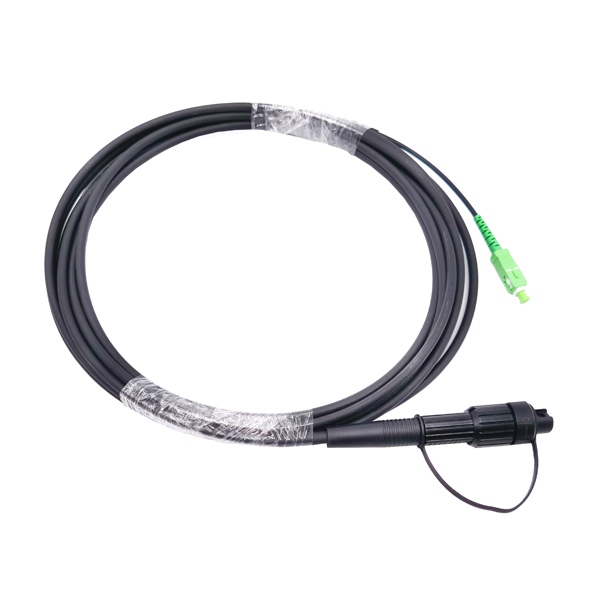

This fiber patch cable are pre-terminated with mini sc reinforced connector at one side, and the other side is SC/APC connector. The main cable is 5mm round cable, in order to add connectors, will cut the cable jacket and then use heat shrinkable protectors to protect the joint.
Optical Connector Characteristics
| Item | Single mode | Multi mode | Reference | ||
| Standard | Elite | Standard | Elite | ||
| Insertion loss | Typical ≤0.3dB Max. ≤0.7dB | Typical ≤0.15dB Max. ≤0.35dB | Typical ≤0.5dB Max. ≤0.25dB | Typical ≤0.10dB Max. ≤0.35dB | IEC61300-3-34 |
| Return loss | ≥50dB(PC) ≥60dB(APC) | ≥55dB(PC) ≥65dB(APC) | ≥30dB(PC) | ≥30dB(PC) | IEC61300-3-6 |
Mechanical Characteristics
| Test | Conditions | Reference |
| Endurance | 500 mating | IEC 61300-2-2 |
| Vibration | Frequency: 10 to 55Hz, Amplitude: 0.75mm | IEC 61300-2-1 |
| Cable retention | 100N (main cable); 50N (connector part) | IEC 61300-2-4 |
| Strength of coupling mechanism | 80N for 2 to 3mm cable | IEC 61300-2-6 |
| Cable torsion | 15N for 2 to 3mm cable | IEC 61300-2-5 |
| Fall | 10 drops, 1m drop height | IEC 61300-2-12 |
| Static lateral load | 1N for 1h (main cable); 0.2N for 5min (ranch part) | IEC 61300-2-42 |
| Cold | -25°C, 96h duration | IEC 61300-2-17 |
| Dry heat | +70°C, 96h duration | IEC 61300-2-18 |
| Change of temperature | -25°C to +70°C, 12 cycles | IEC 61300-2-22 |
| Humidity | +40°C at 93%, 96h duration | IEC 61300-2-19 |
