Mini OTDR SKL-16U/A, 16/32/64 Testing Modes, 0.8m Dead Zone, 45dB Dynamic Range, for FTTH/PON Networks

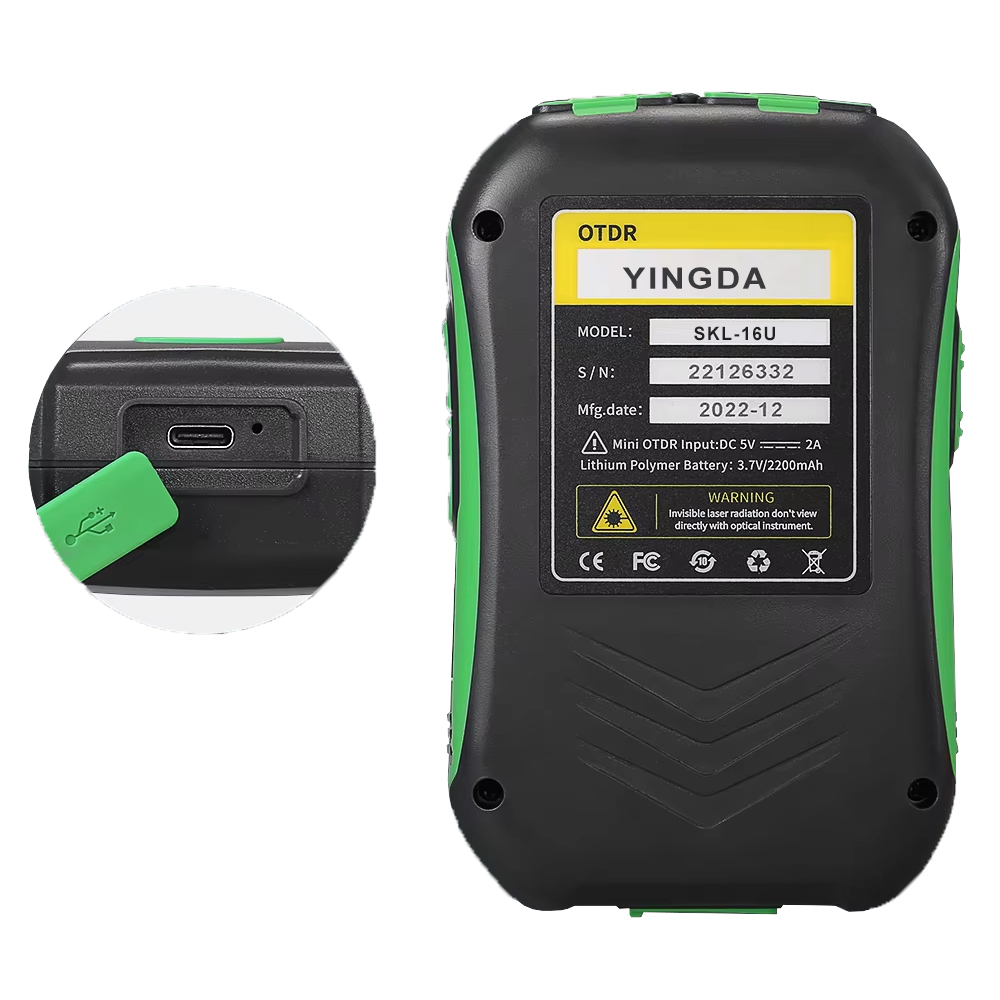

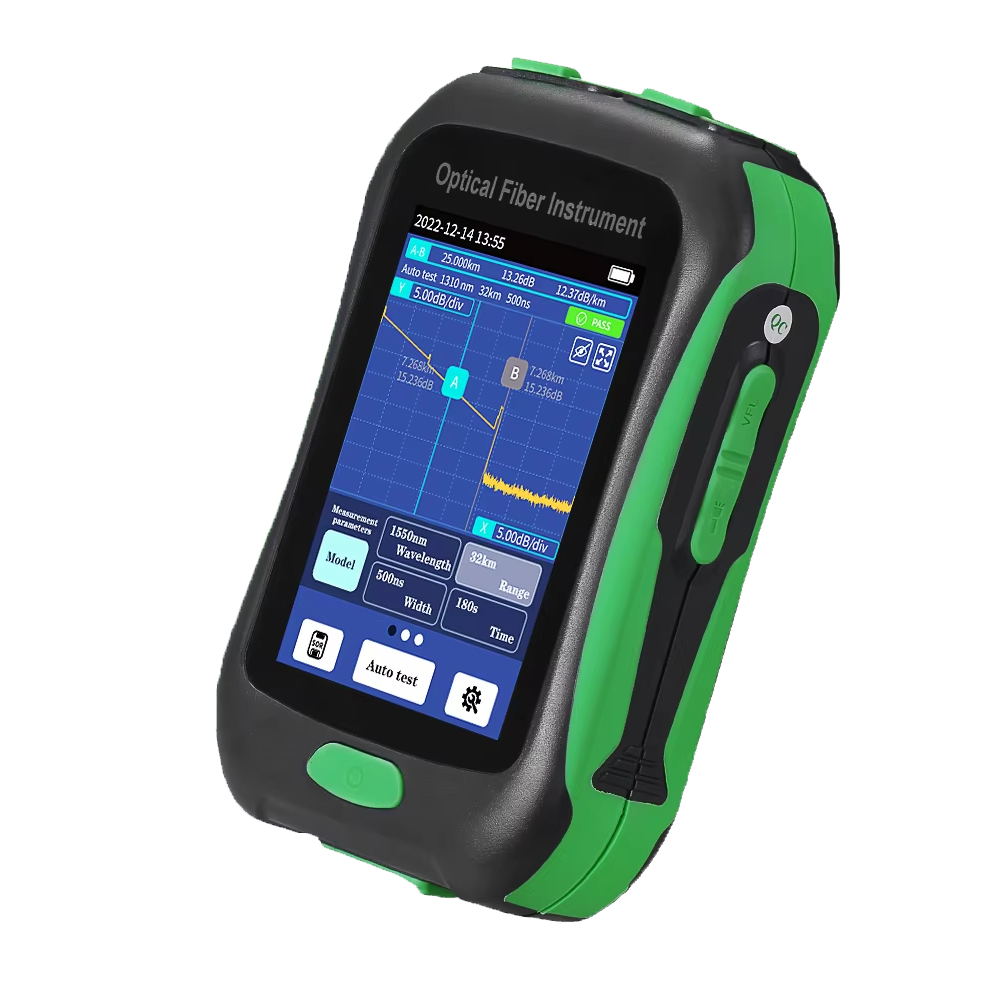

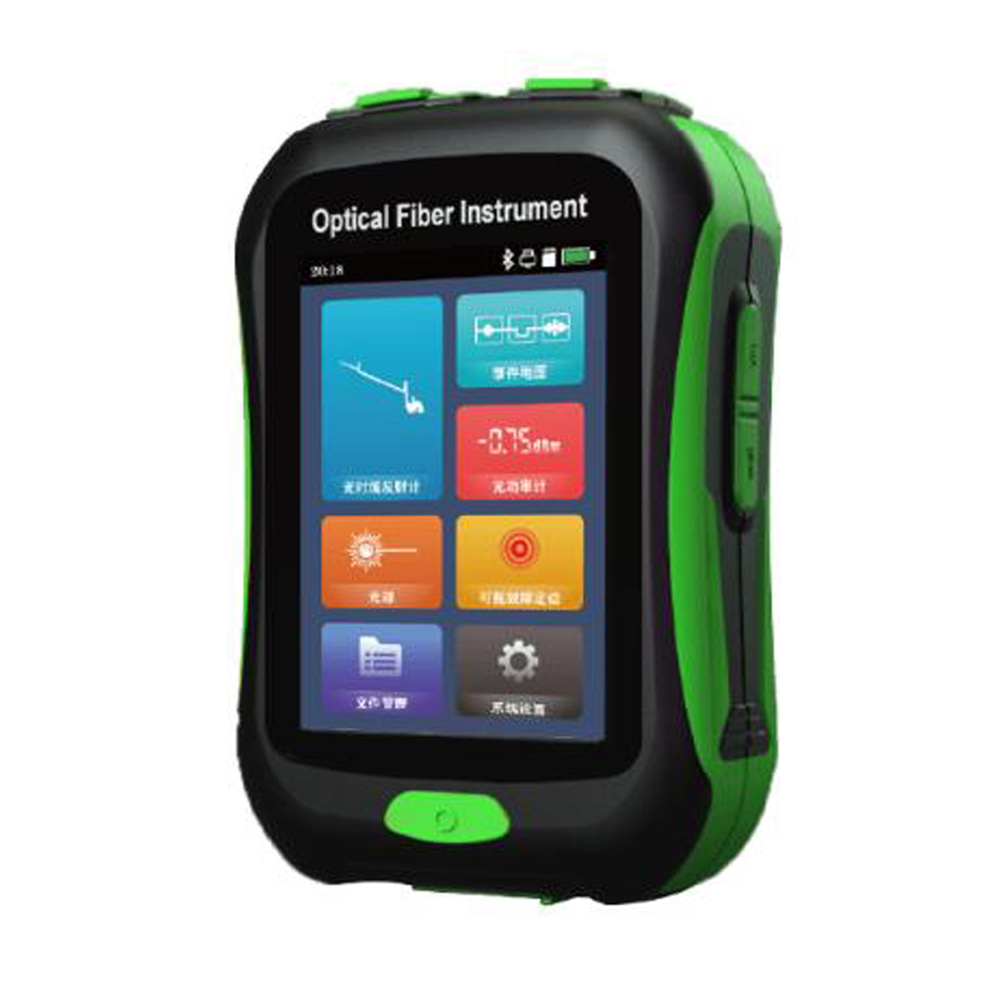

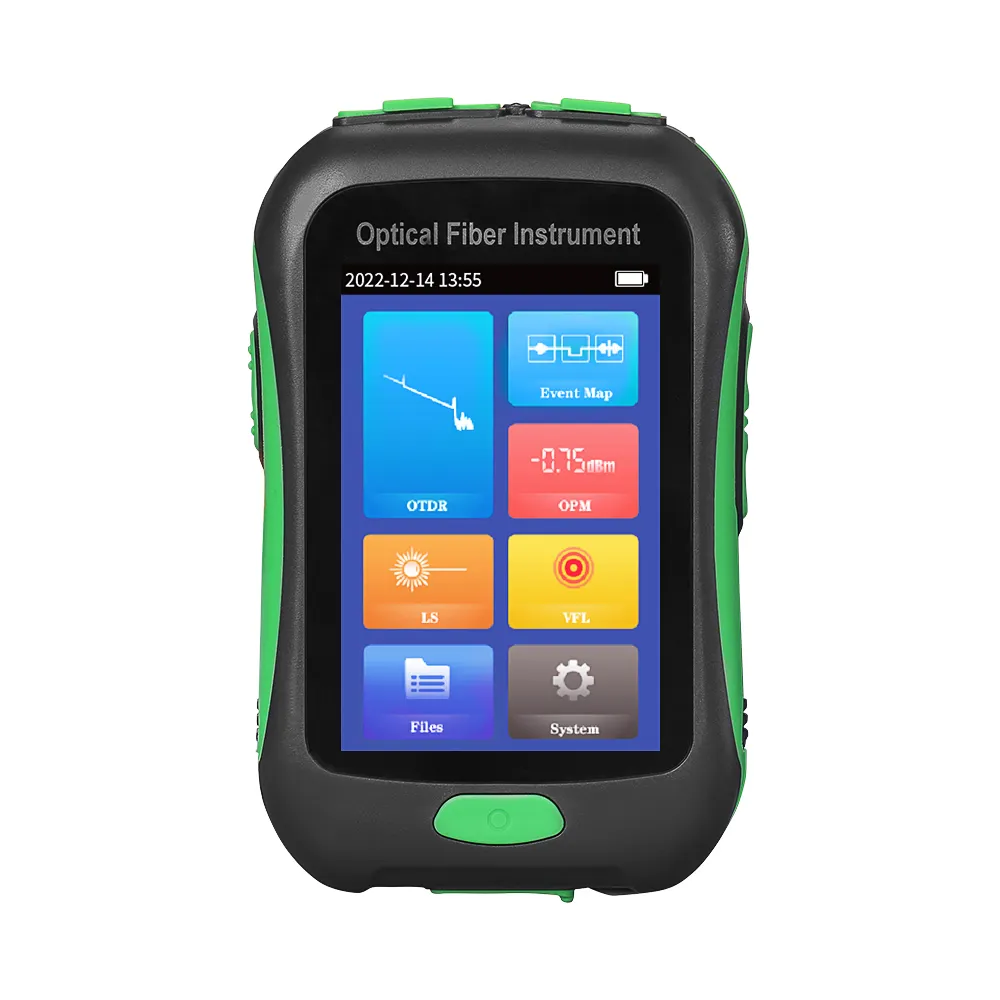

The AUA16U/AUA16A mini optical time domain reflectometer is compact and easy to carry; it adopts a 3.5-inch high-definition touch screen, supports multi-touch and smooth operation. Internal integration of OTDR, event map, optical power, red light, flashlight and other functions in one, to meet various test needs in different occasions. Among them, the OTDR function adopts 1550nm wavelength and built-in high-efficiency wavelength isolator. It can perform optical test on 1310nm、1490nm、1550nm and 1577nm links. It supports up to about +10dBm with optical test capability, and the maximum measurement range is 80km.

SKU SKL-16U/A Category Tags , Brand:

Description

The AUA16U/AUA16A is used to measure the length, loss, connection quality and other parameters of the optical fiber. It can easily test the break point, bend, and loss point of the optical fiber link. It is suitable for line maintenance and emergency repair testing by installation and maintenance personnel.



OTDR Features

  • Small and beautiful appearance, easy to carry.
  • 3.5-inch high-definition full touch screen, support multi-touch, friendly interaction.
  • Rich functions, one machine in hand, all installation and maintenance.
  • Working wavelength 1550nm, support on live test.
  • Battery working time is more than 4 hours,safety guarantee.
  • Small test blind area, the maximum test range is 80km.
  • High-performance processor, smooth control.
  • Intelligent link analysis, intuitive display of analysis events.



Technical Indicators

OTDR
Model AUA16U/AUA16A(on live test)
Fiber Type G.652 single-mode fibe
Wavelength 1550nm±20nm
Max Range 20dB
Event Blind 2.5m
Attenuation zone 10m
Test range 100m/300m/500m/1.25km/2.5km/

5km/10km/20km/40km/80km

Pulse width 5ns/10ns/20ns/30ns/50ns/80ns/

100ns/200ns/300ns/500ns/800ns/

1μs/2μs/3μs/5μs/8μs/10μs/20μs

Ranging Accuracy ±(1m+sampling interval+0.005%×distance)
Linearity ±0.05dB/dB
Max sampling points ≥20000
Max sample resolution ≤0.03m
Loss resolution 0.01dB
Loss threshold 0.20dB
Distance resolution 0.01m
Refractive index 1.00000~2.00000
Reflection accuracy ±3dB
File format SOR SOR Standard File Format
Loss measurement mode 4-point/5-point
Laser Safety Level Class II
Optical connector SC/PC
