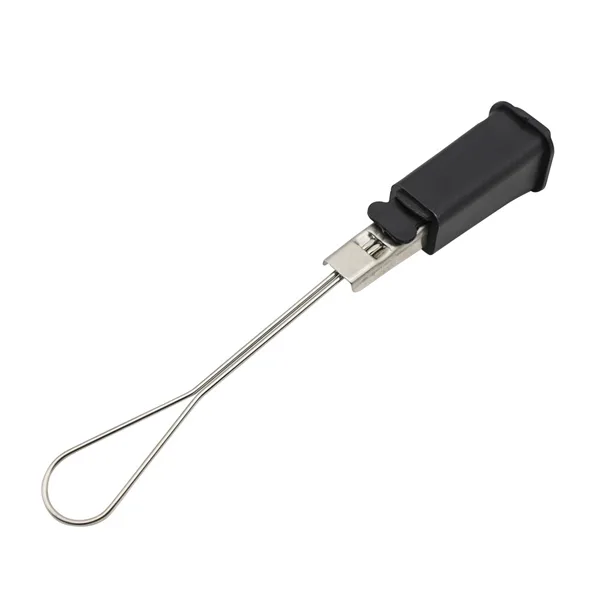

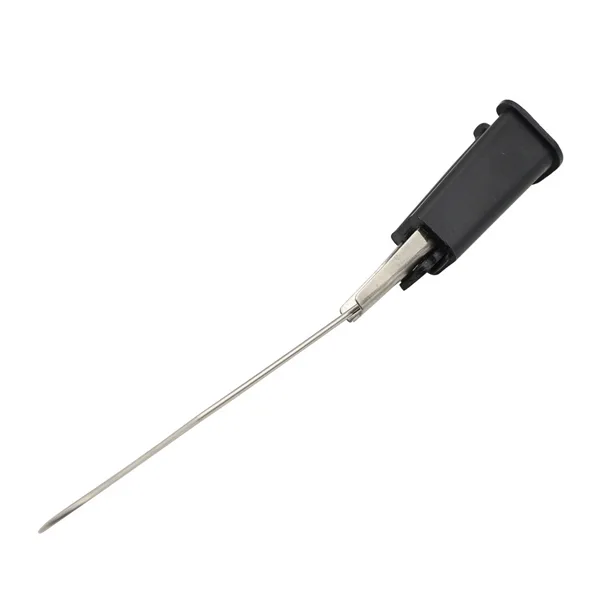

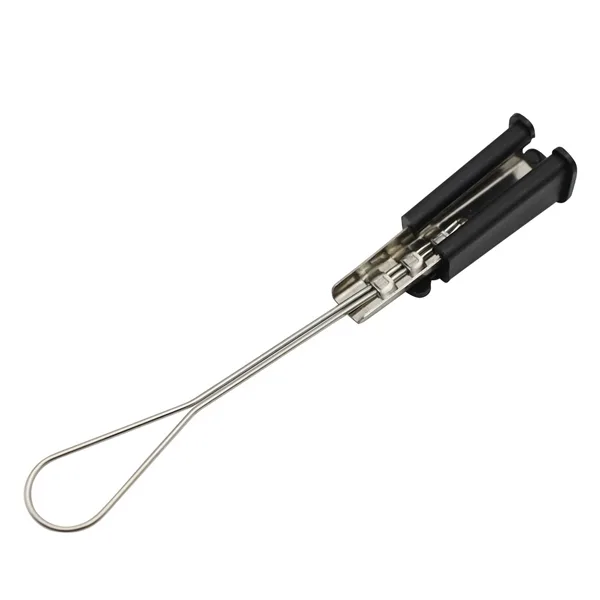

Metal Drop Wire Clamp With Neoprene Shim and Wedge

Share:

Description

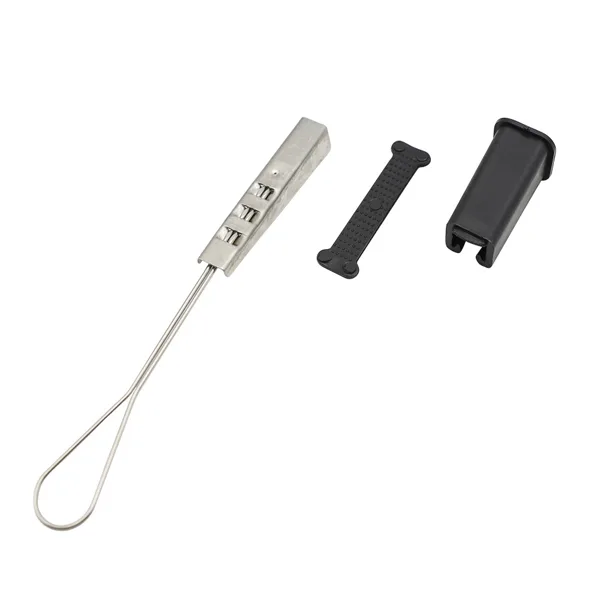

The drop wire clamp ODWAC series is composed of a body shell, a wedge and a shim, all made of stainless steel, good corrosion resistant, good insulating property and long life service. The solid wire bail (body) is crimped to the wedge, and the clamp furnished with a perforated gasket which increases the tension load on drop clamp without cable slip and damage, supply a long time usage life. This stainless steel hook can be used with drive hooks,pole brackets,FTTH brackets and other fiber optic cable fittings or hardware.



Drop Wire Clamp Features

  • Entire clamp made of corrosion resistant stainless steel and neoprene
  • Suitable for telephone companies and the telecommunications industry
  • Maximum breaking load of 555 lb
  • Compact size, light weight, cost-effective, single-piece design
  • Simple and fast installation,requiring no tools
  • Efficient cable grip by conical wedge
  • Manual adjustment of the lowest point of the cable by blocking the wedge on remote position
  • Mounting on all pole line hardware with open or closed eye and min. Ø20mm
  • Suitable for flat cable with a thickness of less than 6mm and a width of less than 13mm



Drop Wire Clamp Specification

Model ODWAC-26
Dimension 189*19*17 mm
Material Stainless steel
Cable type 2 ~6 mm flat drop cable (max.13*6 mm)
Breaking load 1.2 KN
Net weight 45 g



Pack information

Quantity/carton Carton size Gross weight/carton
500 pcs 38*26*30 cm 23.5 kg
Will load with non fumigation export pallet, if no specify.



Drop Wire Clamp Application

The drop wire clamp is ideal for outdoor network installation and laying, stretching and fixing drop wire and optical cables on poles or building exterior walls.

Yingda can offer all types of metal or plastic ftth drop cable wire tension clamps, the material, hook shape, size, structure, color all can be custom.

Welcome inquiry.

All types of ftth drop cable wire tension clamps
