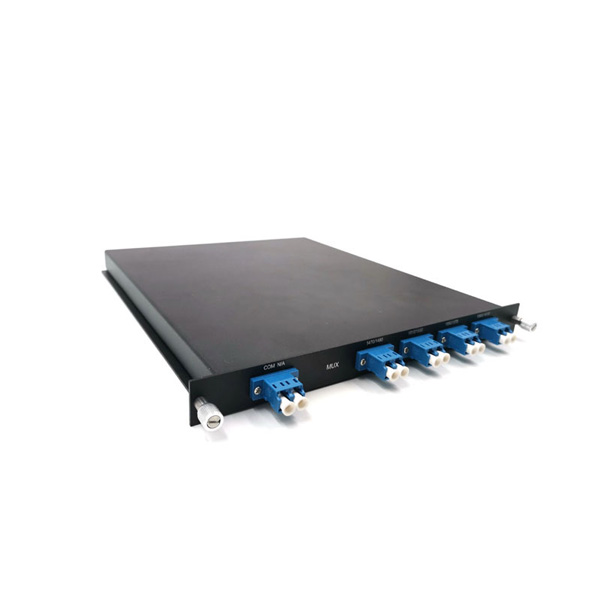

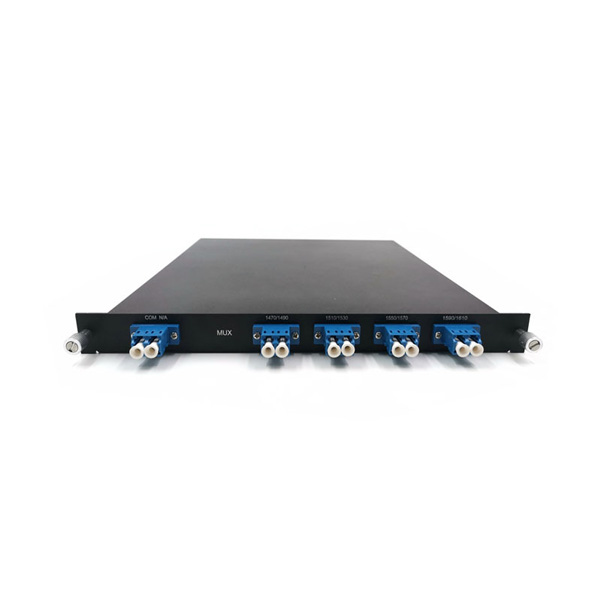

CWDM is a low-cost WDM transmission technology for metropolitan area network access. It uses the huge bandwidth of the low-loss area of single mode fiber to couple light of different wavelengths to one optical fiber for transmission.
Features
Applications
Specifications
| Parameters | Unit | 4CH | 8CH | 12CH | 18CH | |
| Operating Wavelength | nm | 1260~1620 | ||||
| Channel Space | nm | 20 | ||||
| Center Wavelength | nm | ITU，ITU+1 | ||||
| Center Wavelength y Accuracy | nm | ±0.8 | ||||
| Pass band @-0.5dB | nm | ±6.5 | ||||
| Port Insertion Loss | dB | ≤1.3 | ≤2.6 | ≤3.6 | ≤3.8 | |
| Link Loss | dB | ≤2.1 | ≤3.3 | ≤4.1 | ≤4.3 | |
| Isolation | Adjacent | dB | ≥30 | |||
| Non-adjacent | dB | ≥40 | ||||
| Ripple | dB | ≤0.5 | ||||
| Polarization Dependent Loss | dB | ≤0.2 | ||||
| Return Loss | dB | ≥40 | ||||
| Directivity | dB | ≥50 | ||||
| Power | mw | ≤300 | ||||
| Fiber Type | / | G657.A1(0.9mm Tube, 2.0mm Tube) | ||||
| Fiber Length | m | 0.5+/-0.05&Customized | ||||
| Connector | / | LC/UPC & Customized | ||||
| Operating Temperature | ℃ | -20~75 | ||||
| Storage Temperature | ℃ | -40~85 | ||||
| Housing | mm | 155*129*29,215*190*42,484*250*44 | ||||
