Description
Features of Simplex Patch Cord
- Doubles the density of optical termination;
- Exactly half the size of the SC connector or adapter fits the SC footprint
- Metal Shutters automatically closed on both the adapter and connector
- Incorporates proven, reliable ceramic ferrules
- Available in single mode and multi-mode versions
- Easy to convert between simplex and duplex connectors
- Plug type, the keying coupling structure
- Single mode (OS2), OM1, OM2, OM3, OM4, and OM5 are available
- 100% optically test before delivery
Specification
| Connector type | LX.5 |
| Cable diameter | 2.0mm, 3.0mm |
| Fiber Type | 9/125um, 50/125um or 62.5/125um |
| Polishing | PC (SM or MM) or APC (SM) |
| Boot Color | Blue, Green, or Beige |
| Jacket Material | PVC, OFNR, LSZH, or custom |
| Insertion Loss | < 0.3dB |
| Return loss | PC≥30dB, UPC≥50dB,APC≥60dB |
| Ferrule material | 1.25 mm zirconia ceramic |
| Multimode sleeve | 1.25 mm phosphor bronze |
| Singlemode sleeve | 1.25 mm zirconia ceramic |
| Adapter Housing, Connector Body | Engineering thermoplastic |
| Flammability | Adapter housing and connector body and boot are fabricated with materials which meet UL94, Level V-O requirements |
| Operating Temperature** | -40 °C to 75 °C 0% to 93% RH |
| Storage Temperature | -40 °C to 85 °C 0% to 93% RH |
Detailed Display of Simplex Patch Cord

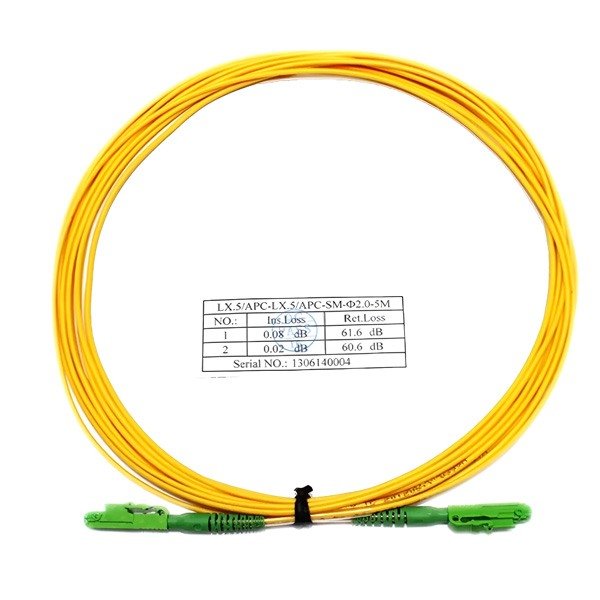

The cable is yellow, made of single-mode (SM) fiber. Single-mode fiber enables long-distance and high-bandwidth data transmission, ideal for applications like telecommunications and data centers. It is a simplex patch cord, meaning it has one fiber strand (though the cord may appear with two connectors for duplex-like presentation, it functions as simplex for single-channel transmission).
There is a label on the package, marking some essential information of the goods, like insertion loss and return loss. The cable is flexible and well-structured, suitable for indoor environments where reliable optical connections are required.
The connectors have color-coded markers (e.g., “A” and “B”) for easy identification and management of fiber channels. They feature LX.5 APC connectors. The connectors are green, and the “LX.5 Mark” is clearly engraved on them, indicating the specific connector type. APC (Angled Physical Contact) design ensures low return loss, suitable for high-performance optical transmission.
