Description
Gpon Passive Splitter 2×4 Features
- Low Insertion loss
- Low PDL
- Compact Design
- Good channel-to-channel uniformity
- High Reliability and Stability
- Conforms to TelcordiaGR-1209&GR-1221, ROHS
Specifications of Gpon Passive Splitter 2×4
| Split ratio | 2×4 |
| Operating Wavelength (nm) | 1260-1650nm |
| Fiber Type | G657A1 or customer specified |
| Insertion Loss (dB)S Grade | 8 |
| Insertion Loss (dB) P Grade | 7.7 |
| Loss Uniformity(dB) | 1.0 |
| PDL(dB) | 0.2 |
| Return Loss (dB) | 55 |
| Directivity (dB) | 55 |
| Wavelength Dependent Loss(dB) | 1.0 |
Display of Gpon Passive Splitter 2×4

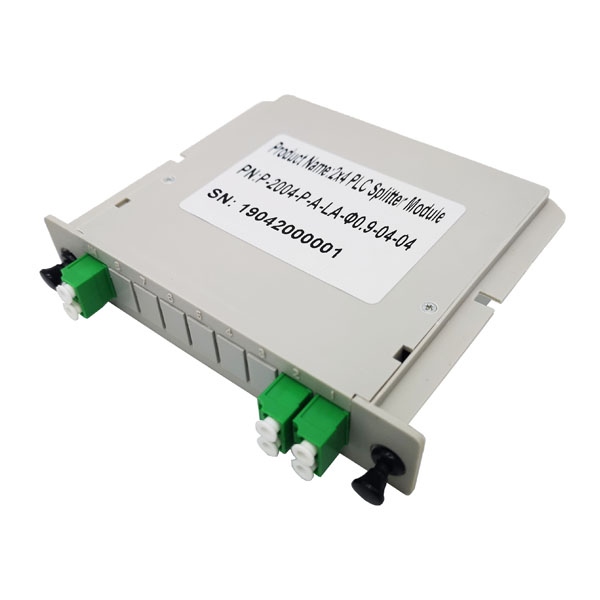

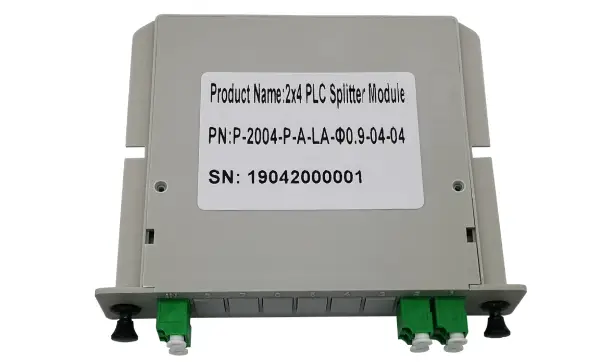

This Gpon Passive Splitter 2×4 has a rectangular, compact enclosure. It features a label on the front with product info like name, PN, and SN. It is suitable for integration into fiber optic distribution systems.
On one side, there are green-colored LC fiber optic connectors. These connectors ensure precise and low-loss fiber optic connections. The module has a robust housing, likely made of metal, providing protection for internal optical components. The black elements at the bottom are for stability or mounting purposes, enabling easy installation in optical distribution frames or relevant equipment.

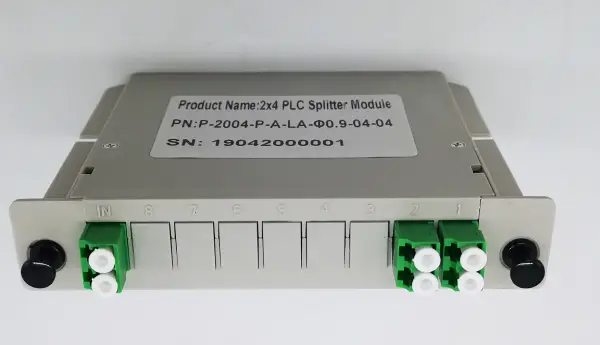

“IN” stands for the “Input” port, which is the interface used to connect to the upstream optical fiber signal (such as the optical signal from devices like OLT). As for those numbers, they are used to identify the output port numbers, facilitating the distinction of different optical signal output channels, and corresponding to the interfaces that are connected to lower-level devices (such as ONU, etc.) after splitting. These identifiers represent the number of presented ports and the annotated numbers are the common identifiers in the equipment’s series design.

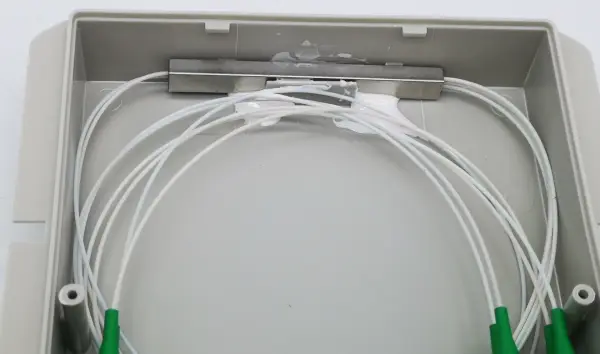

This is a close-up of the interior of a 2×4 PLC splitter module. Inside the opened enclosure, several white fiber optic cables with green connectors at the ends are neatly arranged. There is a metal component in the middle, used for fixing or managing the fibers.
