1×32 Splitter Lgx Module With 2 Ways 16 Couplers, Sc Apc Connectors,Lowloss ,High Uniformity, 55db Return Loss.

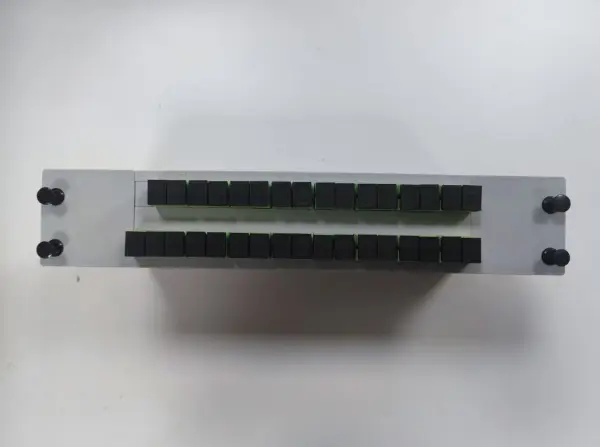

LGX Splitter is fiber optic plc splitter with a lgx module to hold the mini splitters in steel tube inside, and then with sc or lc adapters on the front panel to hold the input and output pigtails, no need to open the box to finish construction, quick and fast to use, widely used in fiber distribution box, joint closures.

SKU YDPLC-LGX-132-SASA Category Tags , Brand:
SEND INQUIRY

Description

Features

  • Low Insertion loss
  • Low PDL
  • Compact Design
  • Good channel-to-channel uniformity
  • High Reliability and Stability
  • Conforms to TelcordiaGR-1209&GR-1221, ROHS

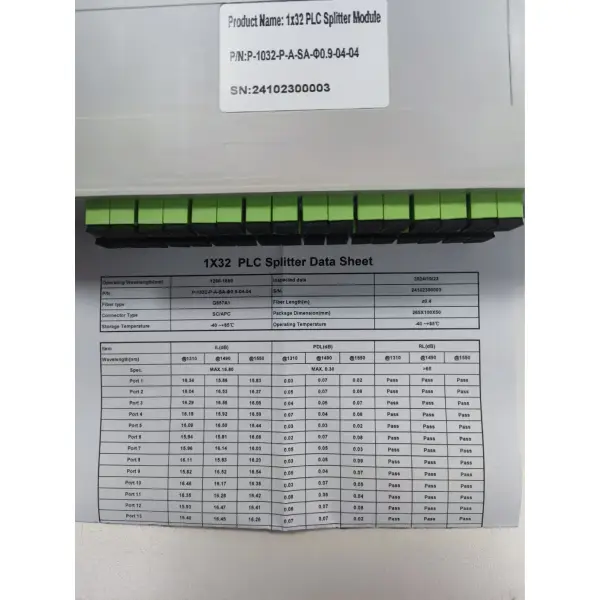

Specifications

1×N, 2XN PLC Splitter

Split ratio 1×2 1×4 1×8 1×16 1×32 1×64 1×128 2×2 2×4 2×8 2×16 2×32 2×64
Operating Wavelength (nm) 1260-1650nm
Fiber Type G657A1 or customer specified
Insertion Loss (dB)S Grade 4.2 7.6 10.7 14 17.2 20.8 24 4.4 8 11 14.6 17.8 21
Insertion Loss (dB) P Grade 4 7.4 10.5 13.8 17 20.4 23.7 4.2 7.7 10.8 14.1 17.4 20.7
Loss Uniformity(dB) 0.6 0.8 0.8 1.0 2.0 2.0 2.0 0.8 1.0 1.2 1.5 1.8 2.0
PDL(dB) 0.2 0.2 0.3 0.3 0.3 0.4 0.5 0.2 0.2 0.3 0.3 0.3 0.4
Return Loss (dB) 55
Directivity (dB) 55
Wavelength Dependent Loss(dB) 0.6 0.8 0.8 1.0 1.5 2.0 0.2 0.8 1.0 1.2 1.5 1.8 2.0
