Description
LGX PLC Splitter 1×16 Features
- Low Insertion loss
- Low PDL
- Compact Design
- Good channel-to-channel uniformity
- High Reliability and Stability
- Conforms to TelcordiaGR-1209&GR-1221, ROHS
LGX PLC Splitter 1×16 Specifications
| Split ratio | 1×16 |
| Operating Wavelength (nm) | 1260-1650nm |
| Fiber Type | G657A1 or customer specified |
| Insertion Loss (dB)S Grade | 14 |
| Insertion Loss (dB) P Grade | 13.8 |
| Loss Uniformity(dB) | 1.0 |
| PDL(dB) | 0.3 |
| Return Loss (dB) | 55 |
| Directivity (dB) | 55 |
| Wavelength Dependent Loss(dB) | 1.0 |
Details of LGX PLC Splitter 1×16
It is a 1×16 splitter, meaning it can split one input optical signal into 16 output optical signals. The connectors are SC (Subscriber Connector) type. This is a key component in passive optical networks (PONs), enabling the distribution of a single optical signal from a central office or head-end to 16 different subscriber or device endpoints.

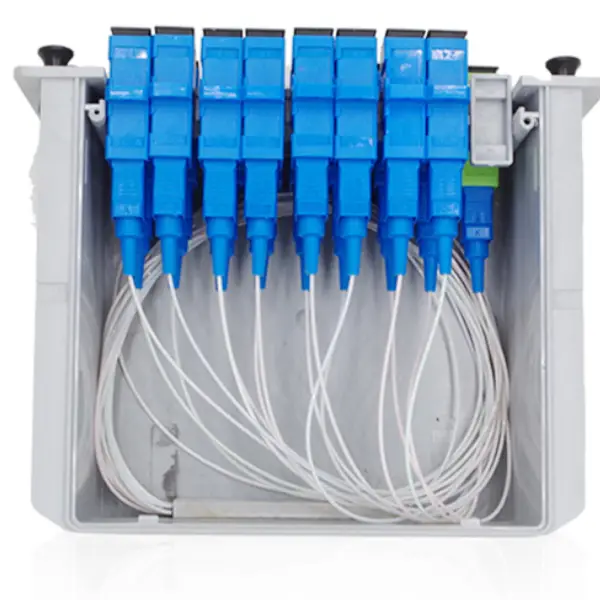

Inside the LGX housing, there is a planar lightwave circuit (PLC) splitter. The PLC technology allows for precise and uniform splitting of the optical signal with low insertion loss and good wavelength characteristics. The 1×16 PLC splitter chip inside is responsible for dividing the incoming light power evenly (or according to a designed ratio) among the 16 output ports. This ensures that each of the 16 output signals has relatively consistent power levels, which is crucial for maintaining the performance of the optical network.
Application Scenarios: This 1×16 SC/SC LGX splitter is suitable for use in FTTHnetworks, enterprise fiber optic networks, and other passive optical network deployments. It can be installed in fiber distribution boxes, optical network terminals (ONTs), or other fiber optic enclosures to distribute the optical signal from the service provider to multiple users or devices.
