Lgx Splitter Plc 1×16, With In And Number Mark, With Blockless Splitter Internal, Sc Couplers,Screwlock Cover, Gray Color

This 1×16 splitter is well-suited for applications in passive optical networks, including FTTH deployments, enterprise fiber optic networks, and broadband access networks. It enables the efficient distribution of optical signals to multiple subscribers or network segments, playing a key role in expanding the reach and capacity of fiber optic communication systems.

SKU YDPLC-LGX-116-SASA Category Tags , Brand:

Description

LGX Splitter PLC 1×16 Features

  • Low Insertion loss
  • Low PDL
  • Compact Design
  • Good channel-to-channel uniformity
  • High Reliability and Stability
  • Conforms to TelcordiaGR-1209&GR-1221, ROHS

LGX Splitter PLC 1×16 Specification

Split ratio 1×16
Operating Wavelength (nm) 1260-1650nm
Fiber Type G657A1 or customer specified
Insertion Loss (dB)S Grade 14
Insertion Loss (dB) P Grade 13.8
Loss Uniformity(dB) 1.0
PDL(dB) 0.3
Return Loss (dB) 55
Directivity (dB) 55
Wavelength Dependent Loss(dB) 1.0



Details of LGX Splitter PLC 1×16

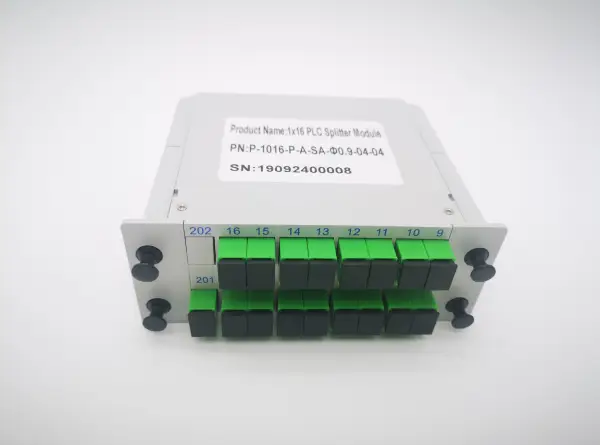

On the surface of the LGX housing, there is a label that provides key product identification details: Product Name, Part Number (PN), Serial Number (SN).

The splitter is equipped with SC connectors. These connectors are easily recognizable by their rectangular shape and push-pull latching mechanism. The green color of the connector ferrules typically indicates compatibility with single-mode fiber, which is commonly used for long-distance, high-bandwidth optical signal transmission in telecommunications networks.

lgx splitter plc 1x16, with in and number mark, with blockless splitter internal, sc couplers,screwlock cover, gray color

There is 1 input connector and 16 output connectors, corresponding to the 1×16 splitting ratio. The standardized SC connectors ensure compatibility with a wide range of fiber optic cables and network equipment, simplifying installation and integration processes.

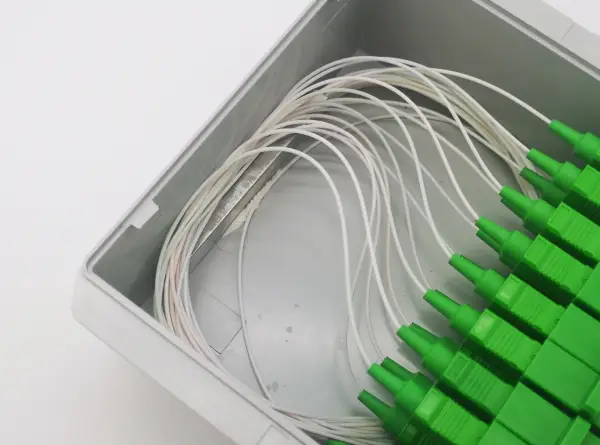

The pigtails are neatly coiled inside the LGX housing (as seen in the opened-box view), which helps in managing the fiber length, preventing tangling, and ensuring proper fiber routing during installation. This organized arrangement also facilitates easy access and connection during maintenance or reconfiguration of the fiber optic network.

lgx splitter plc 1x16, with in and number mark, with blockless splitter internal, sc couplers,screwlock cover, gray color

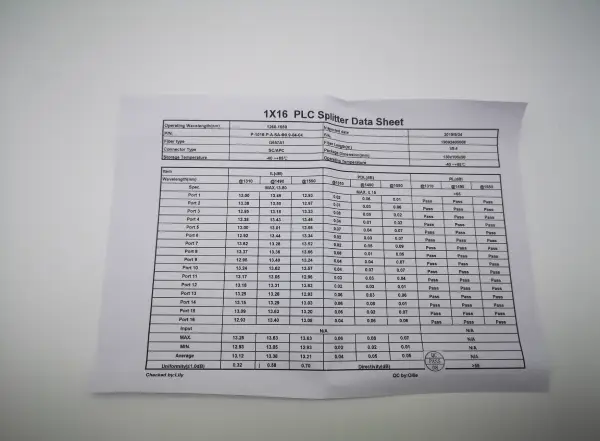

Each product comes with a test report. This test report serves as an official document to verify that the 1×16 PLC Splitter meets predefined technical specifications and performance standards. It provides objective data on how the splitter functions, which is crucial for quality control, compliance with industry regulations, and ensuring reliable operation within fiber optic networks.

lgx splitter plc 1x16, with in and number mark, with blockless splitter internal, sc couplers,screwlock cover, gray color

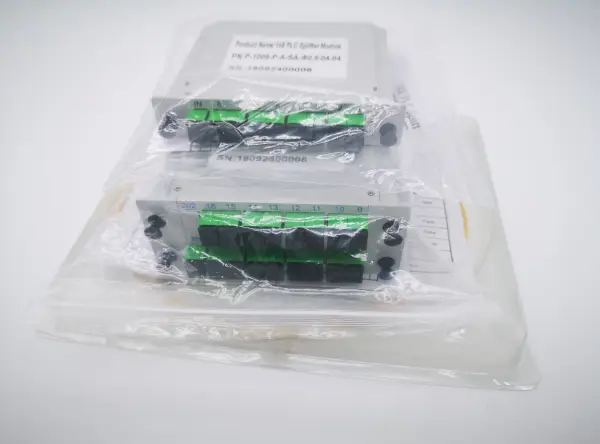

The product LGX Splitter PLC 1×16 is individually wrapped in transparent plastic bags, which can protect the splitters from dust and minor physical damage while allowing visibility for quick identification. The plastic bags also help maintain the cleanliness of the splitter connectors and internal fibers before installation. Each splitter has labeling with product information like the model number and serial number on the outer packaging, facilitating inventory management and product traceability.

lgx splitter plc 1x16, with in and number mark, with blockless splitter internal, sc couplers,screwlock cover, gray color
