Description
LC/UPC VOA Optical Attneuator Features
- Voa optical attneuator can be UPC or APC ferrule endface
- 0-15 dB attenuation range variable
- Attenuated fiber doped with metal ions achieve attenuation effect
- High power resistant light source, high precision, and good stability
- Light weight, compact size
- Free sample, large stock, fast delivery
LC VOA Optical Attenuator Technical parameters
| Product name | LC/UPC, LC/APC VOA Optical Attenuator |
| Attenuation value | 1dB ~ 15 dB MEMS Variable |
| Working wavelength | 1310/1490nm/1550nm |
| Ferrule material | Ceramic ferrule 1.25mm |
| Attenuation accuracy | 1~5dB:≤+0.5 (dB) 5~30dB:≤+10% (dB) |
| Polarization Dependent Loss | ≤0.2dB |
| Return loss | LC/UPC≥55dB, LC/APC≥60dB |
| Humidity | 95%RH |
| Working temperature | -40~+75℃ |
| Storage temperature | -40~+85℃ |

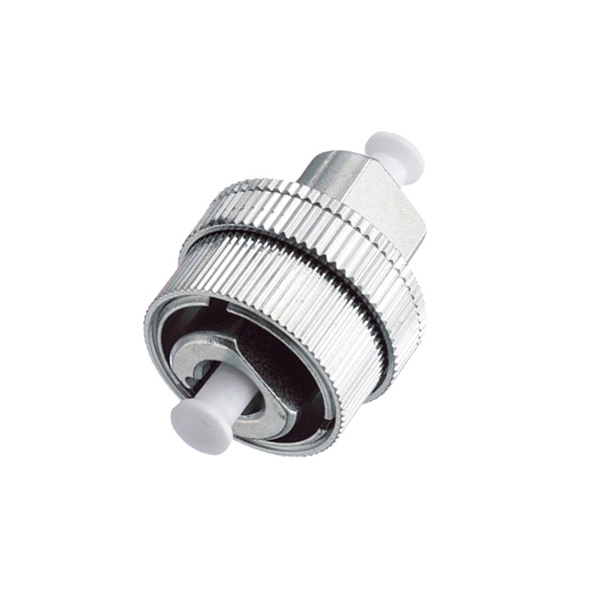

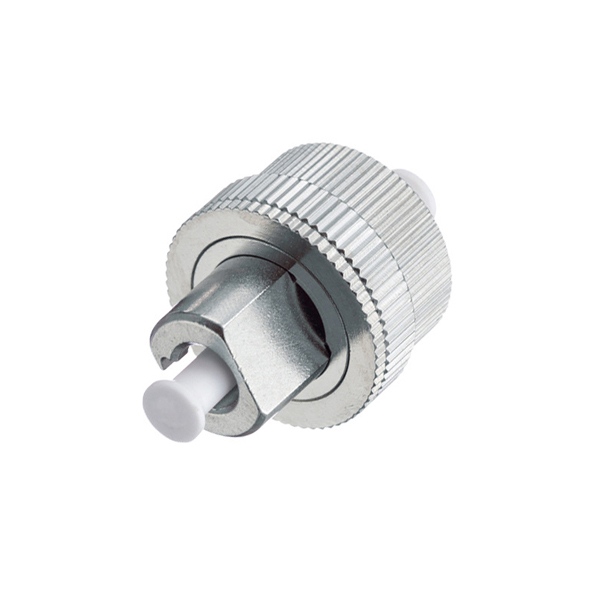

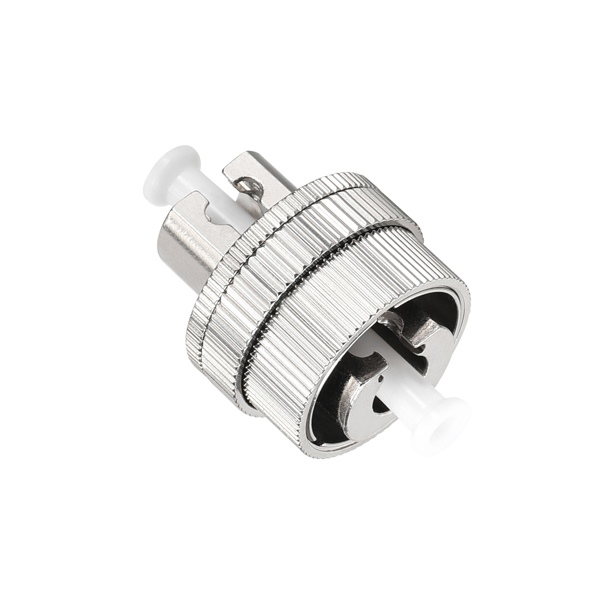

LC VOA Optical Attenuator Details
All LC VOA optical attenuators are compatible with various LC fiber optic connectors and have internationally standardized dimensions.
The LC variable fiber optic attenuator is a female-to-female connector type, requiring no additional steps—simply plug the connectors in at both ends. It offers high attenuation accuracy and excellent stability, making it suitable for various high-density applications requiring attenuation.
Yingda offers a variety of VOA optical attenuators, including LC, SC, FC, and ST types. Both ends can have the same connector type or different connector types. The connectors can also be either male or female. All attenuators are offered at factory prices and meet telecommunications standards.
This LC attenuators can connect simplex LC to LC patch cord cables at both sides, so as to adjust the fiber signal into requirement level, like below:
