Description
LC Attenuator 5dB Features
- Adopt high attenuation fiber with the cladding mode suppression design
- Excellent optic performance
- Easy connection with plug-in type structure
- Attenuation precise and high return loss
- In accordance with Bellcore (GR-910-Core) standard
- Wide attenuation 0dB ~ 30 dB
LC Attenuator 5dB Optical Parameters
| Product name | LC Attenuator | |
| Polish method | UPC or APC | PC |
| Fiber type | Single mode (SM 9/125um) | Multi mode (50/125um) Multi mode (62.5/125um) |
| Operating wavelength | 1310&1550nm | 850&1300nm |
| Return loss | UPC≥50dB, APC≥60dB | ≥35dB |
| Attenuation range | 0-30dB (1 step) | |
| Tolerance | 0-9dB:±0.5dB | |
| 10-20dB:±10% | ||
| Repeatability | ≤0.1dB | |
| Interchangeability | ≤0.2dB | |
| Max optical power | ≤200mW | |
| Working temperature | -40 0C~+750C | |
| Storage temperature | -40 0C~+850C | |
LC Attenuator 5dB Details

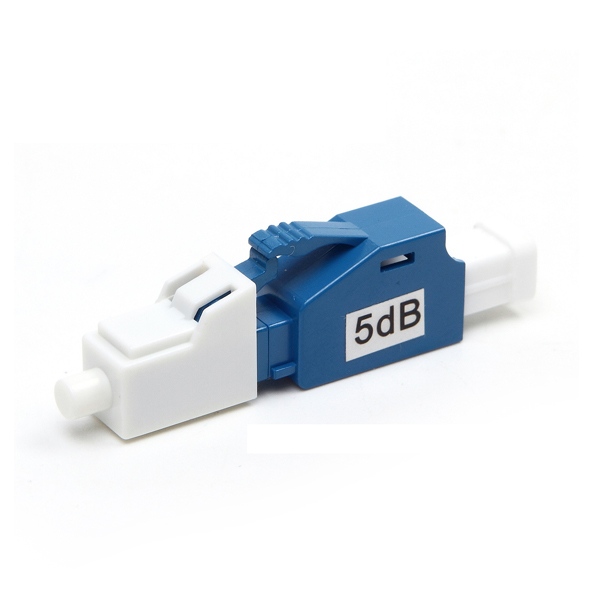

This LC attenuator 5dB features a flagship-grade waterproof dust cap, providing better protection against dust. It also comes with two plastic clips for a more secure connection to the device, offering double protection.
The LC male-female attenuator has a female connector at one end, which can be inserted into an LC connector; the other end is a male connector that can be directly inserted into a device port. It uses high-precision attenuating fiber and can withstand long-term transmission of high-intensity optical power up to 1W.

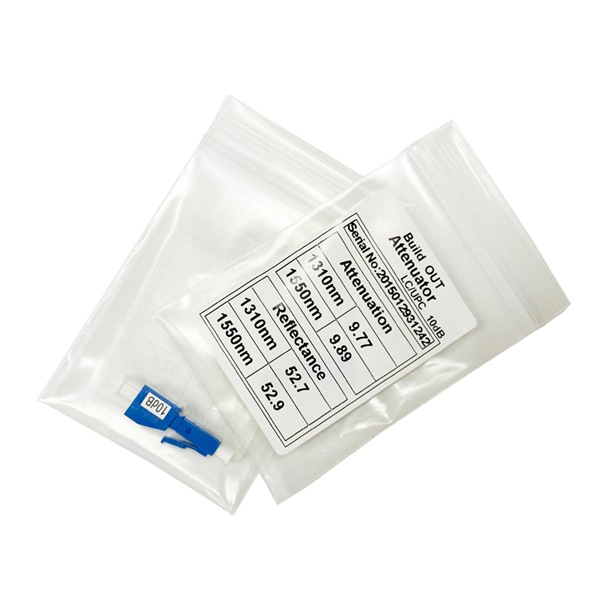

All lc attenuators made by Yingda can be shipped only after rigorous testing and qualified, featuring low insertion loss, high return loss, and excellent repeatability. Each attenuator is packaged in an individual plastic bag with test data. They are suitable for various optical local area networks, fiber optic communication systems, instrumentation, and CATV fiber optic systems.
