Description
LC LC Attenuator Features
- Female to female interface, for LC connectors mating
- Attenuation value can be 1db to 30dB, fixed attenuation
- APC, UPC, PC polished ferrule optional
- In accordance with bellcore GR-910-CORE standard
- Adopt high attenuation fiber with the cladding mode suppression design, good optical performance
- Easy connection with coupling structure
- Attenuation precise and high return loss
LC Attenuator Specification
| Item | SM 9/125um single mode | Multimode 50/125um&62.5/125um | |
| Operating wavelength | 1310&1550nm | 850&1300nm | |
| Attenuation value | 0~20dB (1 step) | ||
| Connector type | SC FC ST LC MU | ||
| Tolerance | 0-9dB | ±0.5dB | |
| 10-20dB | ±10% | ||
| Return loss | PC≥45dB, UPC≥50dB,APC≥60dB | ||
| Temperature range | – 40 ~+75 ℃ | ||

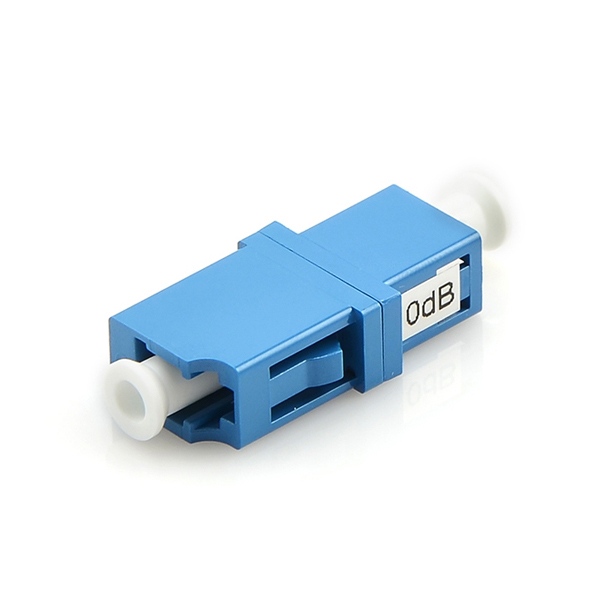

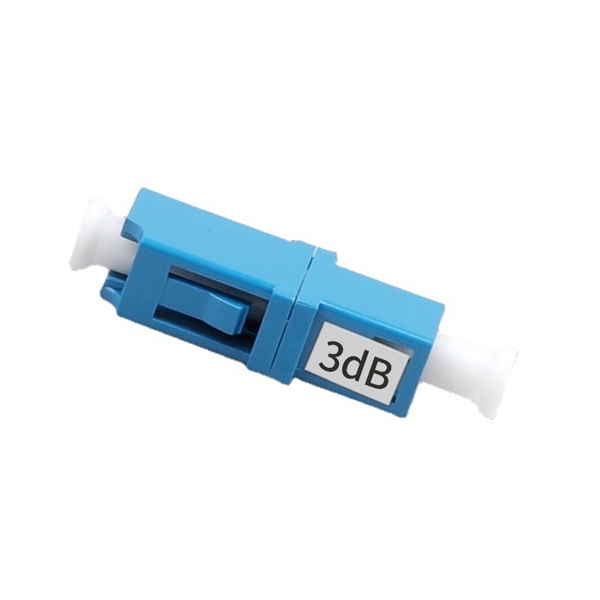

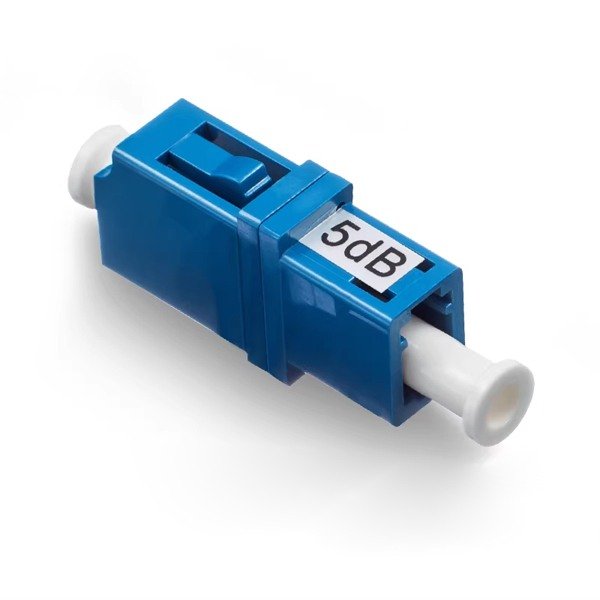

LC Attenuator Details
The LC UPC attenuator body is made of high-strength, flame-retardant plastic, good flame resistance and resistance to high and low temperatures, complying with RoHS environmental requirements; it also features high impact strength and can withstand ≥1000 insertions and removals.
Utilizing high-quality ceramic ferrules and sleeves, it offers excellent insulation, repeatability, and interchangeability, ensuring uniform optical signal transmission, high attenuation accuracy, and strong stability, meeting the transmission requirements of different wavelengths.
This female-to-female adapter type structure is fully compatible with the LC connectors, offering precise attenuation values, low insertion loss, and high return loss. It is widely used in fiber optic communication rooms, fiber optic broadband access, fiber optic instruments, fiber optic local area networks, ODF distribution frames, and other products.
