Description

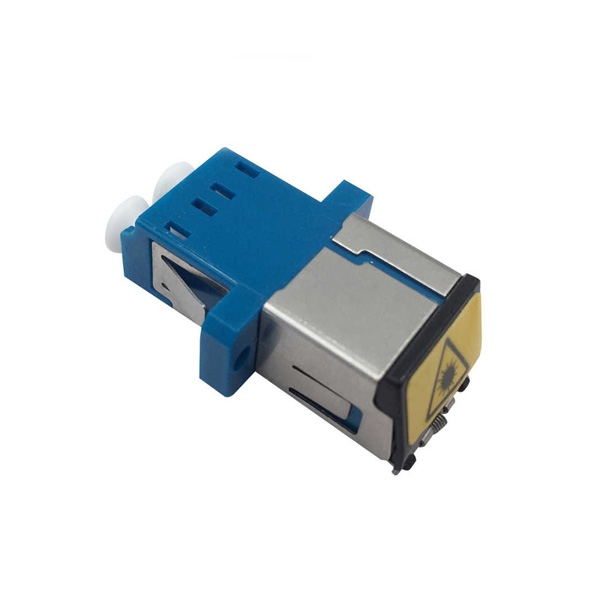

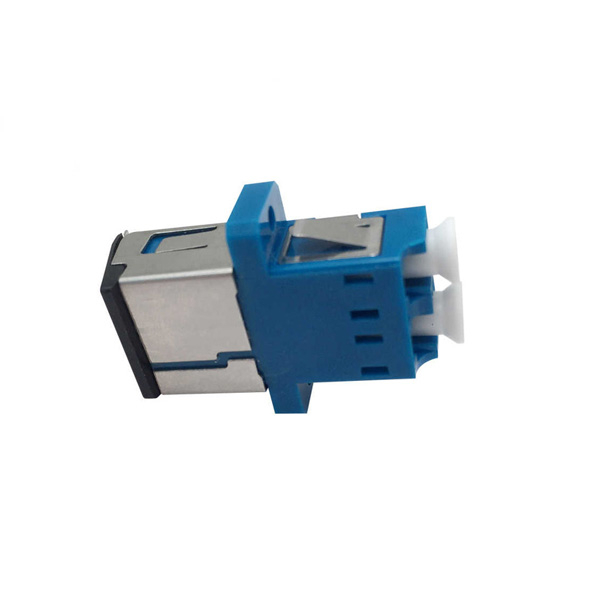

LC Adapter Duplex Features
- Adopt high precise ceramic ferrule, low loss, high return loss
- 4 way with 4 independent dust caps and metal clip
- A and B marks for TX RX transmission system

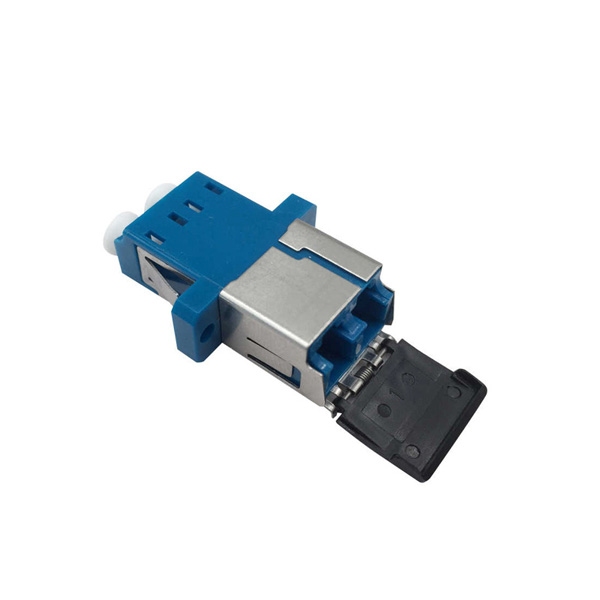

- Automatically close after no use, dust-proof
- High quality ceramic sleeve, high precise and good quality
- Adapters without flange for high density applications
- Blister box package for better protection, 100% qualified before shipment
LC Adapter Specification
| Item | LC Adapter With Shutter |
| Type | UPC APC PC |
| Fiber count | 2 Cores |
| Working wavelength | 1200-1600nm |
| Fiber mode | Single mode & multimode fiber |
| Insertion loss | ≤0.2dB |
| Repeatability | ≤0.1dB |
| Interchangeability | ≤0.2dB |
| Sleeve material | Ceramic |
| working temperature | -40 ~+75℃ |
| Storage temperature | -40 ~+85℃ |
| Mating times | >1000 |
| Temperature and humidity aging | Temperature 85 ℃, 85% relative humidity, 14 days |
| Temperature cycle | Temperature -40~+75℃, relative humidity of 10% -80%, 42 cycles, 14 days |
| Immersion in water | Temperature 43 ℃, pH 5.5, 7 days |
| Vibration | Amplitude 1.52mm, frequency 10Hz-55Hz, 2 hours in each of the X, Y, and Z directions |
| Standards | YD/T 1272.1-2003 |
| Package | 50pcs/box |
