Description

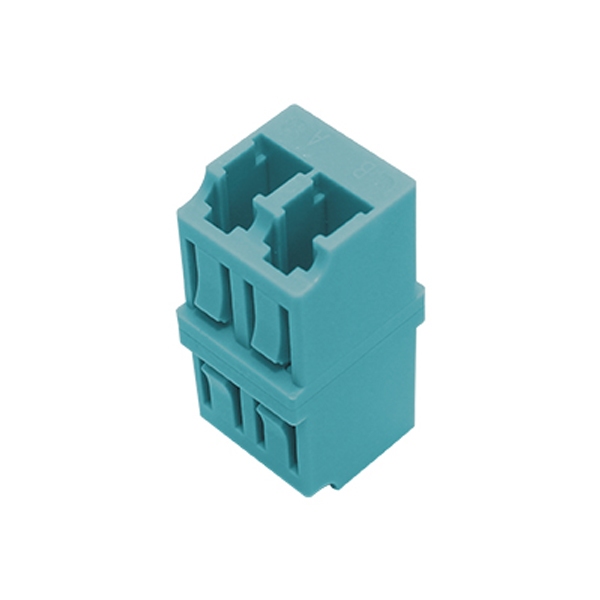

LC fiber optic adapter can be simplex, duplex, quad, 6way, 8way, 12 ways according to the fiber capacity, and body color can be customize according to the different fiber optic patch cord or pigtails connected with, the international standard is: UPC blue, APC green, OM1 OM2 gray, OM3 aqua, OM4 rose red or violet, OM5 green.
Specification
| Item | LC Adapter | |||
| Fiber count | Simplex, Duplex, Quad, 6 way, 8 way, 12 way | |||
| Fiber type | SM | MM | ||
| Polish method | PC | UPC | APC | PC |
| Insertion loss | ≤0.2dB | |||
| Alternation loss | ≤0.2dB | |||
| Repeat ability | ≤0.2dB | |||
| Durability | >1000times | |||
| Working temperature | -40 ~+85 ℃ | |||
| Storage temperature | -40 ~+85 ℃ | |||
| Standard | ROHS, Telcordia GR-326-CORE, YD/T-1272.3 standards | |||
| Material | Core: PBT Housing: ABS Sleeve: Ceramic Clip: Stainless steel 201 / ABS | |||
