Description

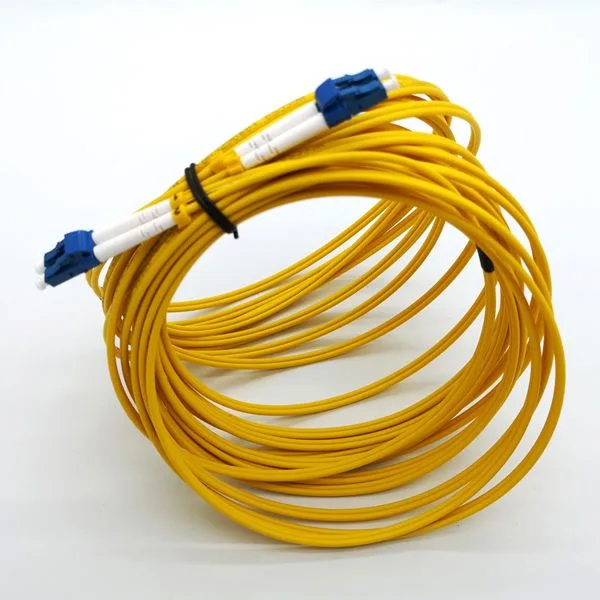

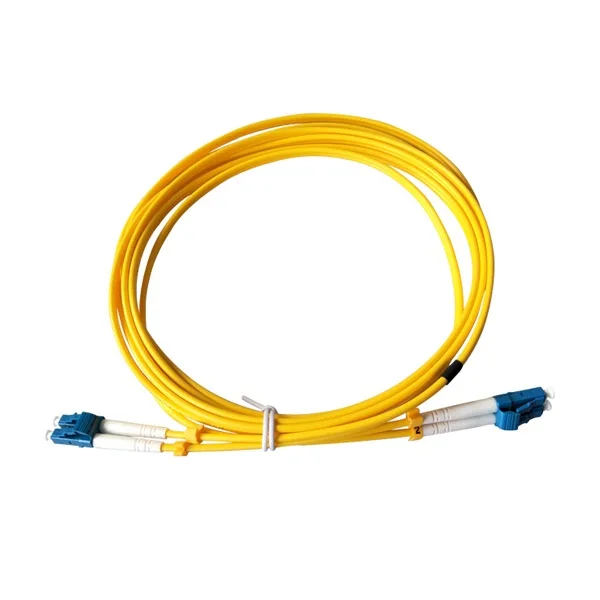

LC fiber optic patch cord jumper is a commonly used network connection device that uses a fiber optic connector standard called LC, suitable for high-density fiber optic wiring environments, compatible with single mode or multimode fibers, achieving low loss connections, fast insertion and removal, reusable, following international standards, with color coding, widely used in multiple fields, custom in different specifications, and requires maintaining fiber end face cleanliness during use.

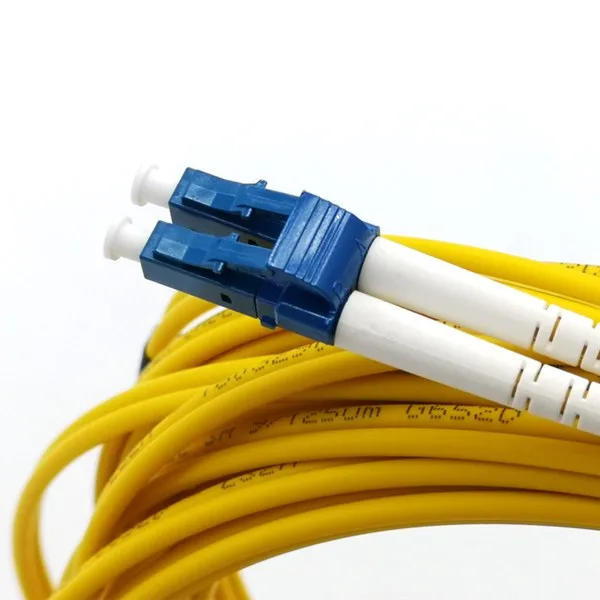

The LC connector was developed by Lucent Technologies and named after its English abbreviation. It looks similar to an RJ45 Ethernet plug, but has a smaller size with a diameter of approximately 1.25 millimeters, while the RJ45 plug has a diameter of approximately 6.35 millimeters.
LC Patch Cord Specification

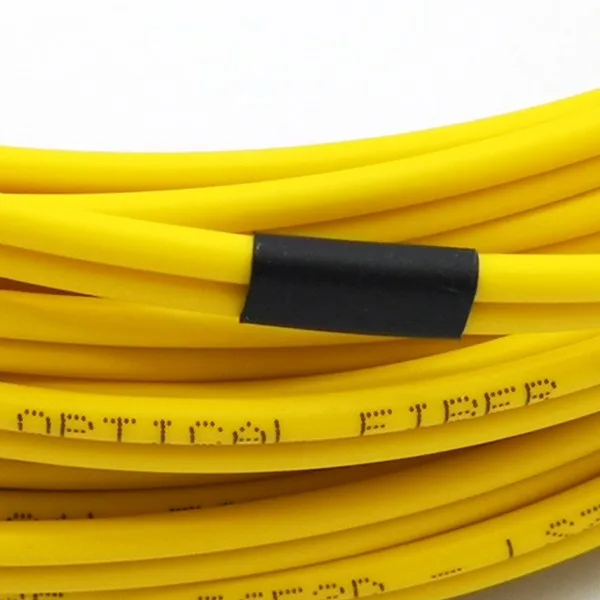

Connector type | LC UPC APC PC connector |
Fiber type | G652D, G657A2, G657A1, G655, G657B3, OM1 OM2 OM3 OM4,OM5, etc |
Wavelength | 1260-1650nm |
Fiber cores | 1 core, 2 cores or multi-fiber |
Cable diameter | Φ3mm,Φ2.6mm, Φ2.4mm, Φ2.0mm,Φ1.6mm, Φ0.9mm or custom |
Polish method | UPC, PC, APC(8°), SPC |
Cable color | Yellow, white, blue, green, grey, red, black, aqua, orange, purple, etc. |
Fiber radius of curvature | ≥ 40 mm (G.652D and G.655C); ≥ 20 mm (only G.657A2) |
Insertion loss | ≤ 0.1dB (Master)
≤ 0.3dB (Standard) Tested by JDS RM 3750 |
Return loss | UPC ≥ 55dB,APC ≥ 60dB (typ.65dB)–Single mode
UPC≥ 35dB (typ.38dB)-Multimode Tested by JDS RM3750 |
Repeat ability | ±0.1dB |
Operating temperature | -40 ° C to 85 ° C |
Geometry Requirement
(For Single mode) |
Ferrule End face Radius:
7mm ≤ R ≤ 12mm (APC) 10mm ≤ R ≤ 25mm (Standard) Apex Offset ≤ 30 μm (Master) Apex Offset ≤ 50 μm (Standard) Undercut -50nm ≤ U ≤ 50nm Tested by DORC ZX-1 |
LC Patch Cord Features
- The miniaturization design of LC connectors makes them very suitable for high-density fiber optic distribution environments, such as data centers and telecommunications rooms.
- LC head fiber jumpers can be used for both single-mode fiber (SMF) and multimode fiber (MMF), providing high flexibility.
- The precision of LC connectors ensures that optical fibers can achieve low loss physical connections during insertion, which is crucial for ensuring data transmission quality.
- LC connectors usually use a push-pull locking mechanism, which makes insertion and removal operations very fast and convenient, while also ensuring the reliability of the connection.
- LC connectors can be reused with care to avoid damaging the fiber core and maintain good connection quality.
- LC connectors comply with the standards of the International Organization for Standardization (ISO) and the International Electrotechnical Commission (IEC), ensuring interoperability on a global scale.
- For the convenience of management and differentiation, LC head fiber optic jumpers are usually color coded, such as blue for single-mode fiber and orange for multi-mode fiber.
- LC head fiber optic jumpers are widely used in fields such as telecommunications, broadcasting, healthcare, education, and finance, and are an indispensable part of building fiber optic networks.
- LC head fiber optic jumpers can be customized with different lengths and types of fiber cores according to customer needs to meet various specific network deployment requirements.
LC Patch Cord Application
- FTTH network (Fiber To The Home)
- Fiber Optic Telecommunications
- LAN (Local Area Network
- CATV&CCTV network
- High speed transmission systems
- Fiber optic sense
LC LC Fiber Patch Cord Types
Yingda can make all types of fiber patch cord in different color, different cable diameter, or optical cable length or connectors, LC patch cord can be distinguish into below types:
Fiber Optic Patch Cables
Fiber Optic Connectors can be assembly with many types of fiber optic cables, from 0.6mm, 0.9mm 1.6mm, 2.4mm, 3mm, 3.5mm, 5mm, 7mm or flat or zipcord duplex or multi fiber cable assemblies.
LC Patch Cable Order Information
Eg: Patch Cord SC/APC-SC/UPC Simplex single mode OS1 2.0mm 25meter
Part no.: YDPC-SASU-SMSX-2025
LC Patch Cable Package Information
ITEM | QTY/CTN | CTN SIZE | G.W./CTN |
Patch cord LC LC SM SX 1M 3.0mm | 500pcs | 47*47*26cm | 14.8kg |
