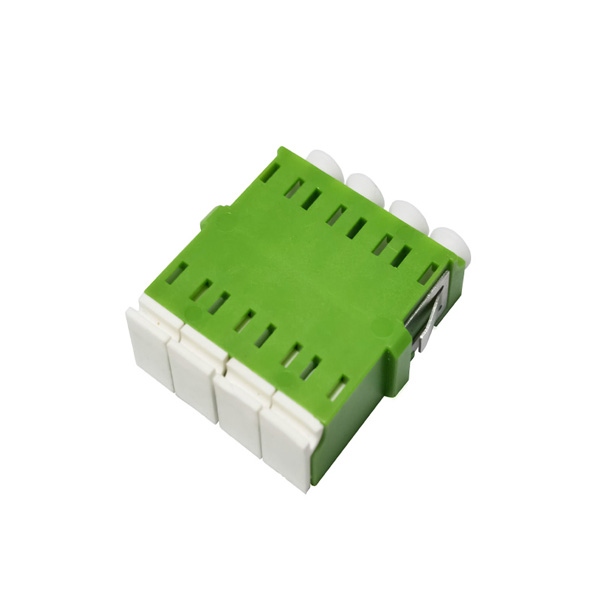

LC Adapter 4 Ways with Internal Shutter, anti-laser protection, SM Green

LC quad adapter is with built-in anti-laser shrapnel, can automatically lock the optical fiber tightly. After no use, the shrapnel will automatically isolate from the outside. One piece body ensure high precise, good durability and repeatability, 1 core, 2 core, 4 cores, 6 cores, 8 cores can be customize.

Description

Fiber Optic Adapter Features

  • Adopt high precise ceramic ferrule, ensure low loss, high return loss
  • 4 way with 4 independent dust caps and metal clip
  • Automatically close after no use, dust-proof
  • High quality ceramic sleeve, high precise and good quality
  • Adapters without flange for high density applications
  • Blister box package for better protection, 100% qualified before shipment



LC Adapter Specification

ItemLC Adapter With Shutter
TypeUPC APC PC
Fiber count4 Cores
Working wavelength1200-1600nm
Insertion loss≤0.2dB
Repeatability≤0.1dB
Interchangeability≤0.2dB
Sleeve materialCeramic
working temperature-40 ~+75℃
Storage temperature-40 ~+85℃
Mating times>1000
Temperature and humidity agingTemperature 85 ℃, 85% relative humidity, 14 days
Temperature cycleTemperature -40~+75℃, relative humidity of 10% -80%, 42 cycles, 14 days
Immersion in waterTemperature 43 ℃, pH 5.5, 7 days
VibrationAmplitude 1.52mm, frequency 10Hz-55Hz, 2 hours in each of the X, Y, and Z directions
StandardsYD/T 1272.1-2003
Package25pcs/box
