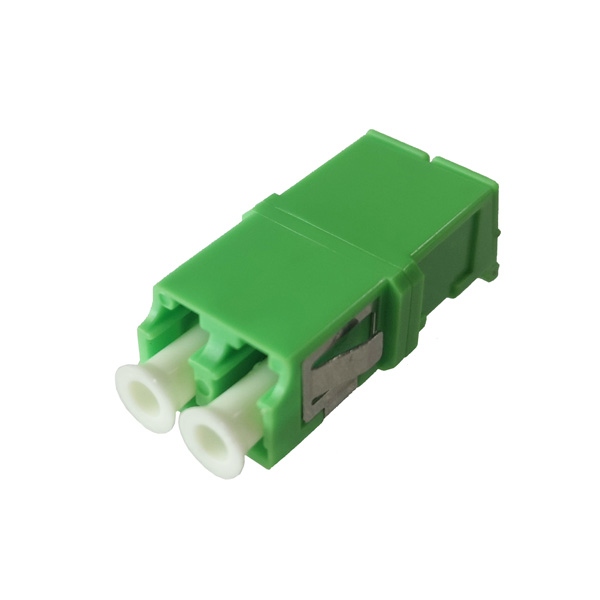

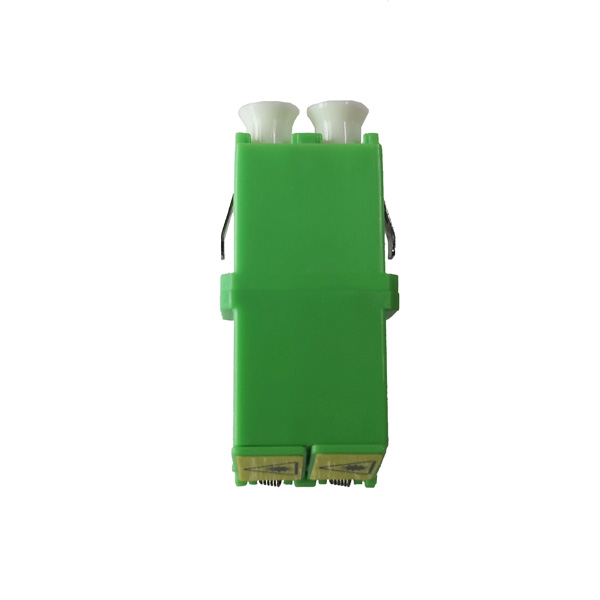

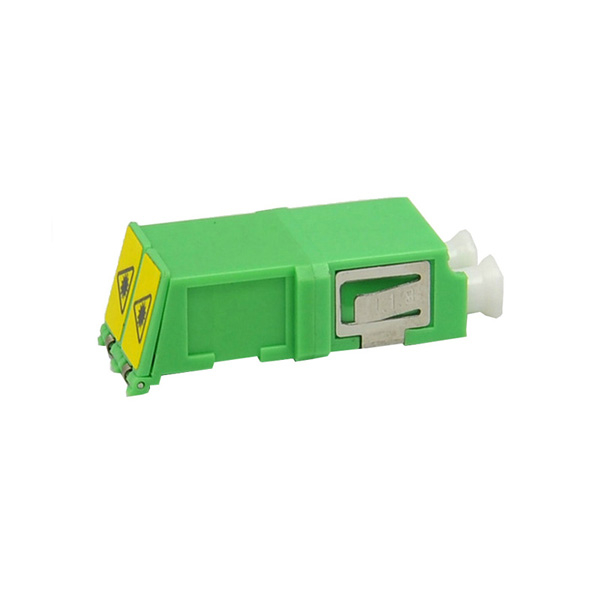

LC duplex adapter is SC footprint fiber adapter with 1.25mm ceramic ferrule, one side configure with independent dustproof covers for each fiber. We can offer adapters with flange or without flange, UPC APC PC can be optional.
LC Adapter Duplex Features
LC Adapter Specification
| Item | LC Adapter With Shutter |
| Type | UPC APC PC |
| Fiber count | 2 Cores |
| Working wavelength | 1200-1600nm |
| Fiber mode | Single mode & multimode fiber |
| Insertion loss | ≤0.2dB |
| Repeatability | ≤0.1dB |
| Interchangeability | ≤0.2dB |
| Sleeve material | Ceramic |
| working temperature | -40 ~+75℃ |
| Storage temperature | -40 ~+85℃ |
| Mating times | >1000 |
| Temperature and humidity aging | Temperature 85 ℃, 85% relative humidity, 14 days |
| Temperature cycle | Temperature -40~+75℃, relative humidity of 10% -80%, 42 cycles, 14 days |
| Immersion in water | Temperature 43 ℃, pH 5.5, 7 days |
| Vibration | Amplitude 1.52mm, frequency 10Hz-55Hz, 2 hours in each of the X, Y, and Z directions |
| Standards | YD/T 1272.1-2003 |
| Package | 50pcs/box |
EXW, FOB, CFR, CIF, DDU, DDP, CPT are optional.
TT, Paypal, Escrow, Alipay, Wechat are optional, no credit.
Yingda accept small bulk order, and sample order. If retailer, please consult our fiber optic distributor in local.
Yingda support team working time: 9am-18pm from Monday to Friday, but AI robot will be always online, you can leave message, will get back to you on the first sight your mails.
If urgent, please CHAT ON WhatsApp:+8618688982406
Yingda productivity is high efficiency, very fast. Normally 2-15 days on different quantity. Let's talk for more details.
Yes, we can do pack or assembly like your requirements, please specify details in purchase order.
High productivity efficiency, skilled front-line operators and strict production control ensure timely delivery.
High-precision testing equipment and top industry quality control system ensure high quality standards.
Long-term stable supply chain and cost control that changes in line with market trends ensure the best price
The more details, the better offer, will reply you in 24 hours.
