0.9mm LC Fiber Optic Connectors Single Mode Multimode Fiber UPC APC PC

LC stands for Lucent Connector with 1.25mm ceramic ferrule. LC fiber connector is with a modular jack (RJ) latch mechanism that is easy to operate, namely a snap on (small) square interface. LC fiber optic connectors are very common in single-mode network equipment and generally used in optical transceivers. Because of its anti pull stability and compact size makes it is widely used in high-speed transmission and data centers.

Description

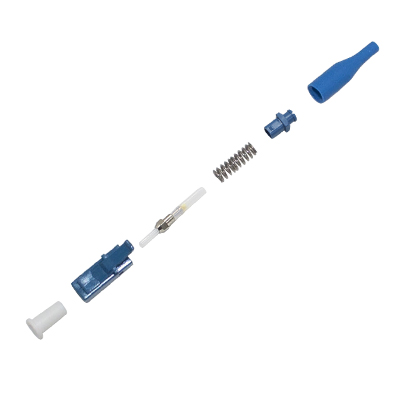

LC Connector 2mm Parts:

Dust Cap, Blue Outer Housing, Ferrule Assembly, Spring, Small Transparent Tube,  Inner Frame, Blue Boot



Optical Specification

Parameter LC Connector
Cable diameter 0.9mm
Fiber count  simplex
Fiber type Single mode Multimode
Polish mode PC UPC APC PC
Insertion loss ≤0.25dB ≤0.25dB ≤0.25dB ≤0.25dB
Return loss ≥50dB ≥55dB ≥60dB /
operating wavelength 1310nm, 1550nm 850nm, 1300nm
Ferrule Concentricity ≤1um ≤4um
Operating temperature -40~85°C
Durability >1000times

LC Connector Boot Size

lc connector 900um boot size

LC Connector housing color

lc connector 900um boot
