LC stands for Lucent Connector with 1.25mm ceramic ferrule. LC fiber connector is with a modular jack (RJ) latch mechanism that is easy to operate, namely a snap on (small) square interface. LC fiber optic connectors are very common in single-mode network equipment and generally used in optical transceivers. Because of its anti pull stability and compact size makes it is widely used in high-speed transmission and data centers.

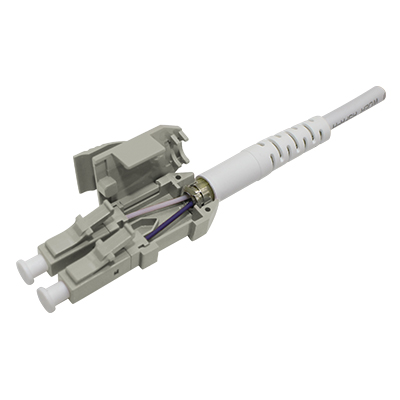

LC Connector Uniboot 3.0mm Parts:
Dust Cap, Aqua Outer Housing, Ferrule Assembly, Spring, Small Transparent Tube, Inner Frame, Uper Cover, Below Cover, Stopper, Riveting Ring, Heat Shrink Tube, White Boot
Optical Specification
| Parameter | LC Connector | |||
| Cable diameter | 3.0mm | |||
| Fiber count | Duplex | |||
| Fiber type | Singlemode | Multimode | ||
| Polish mode | PC | UPC | APC | PC |
| Insertion loss | ≤0.25dB | ≤0.25dB | ≤0.25dB | ≤0.25dB |
| Return loss | ≥50dB | ≥55dB | ≥60dB | / |
| operating wavelength | 1310nm, 1550nm | 850nm, 1300nm | ||
| Ferrule Concentricity | ≤1um | ≤4um | ||
| Operating temperature | -40~85°C | |||
| Durability | >1000times | |||
