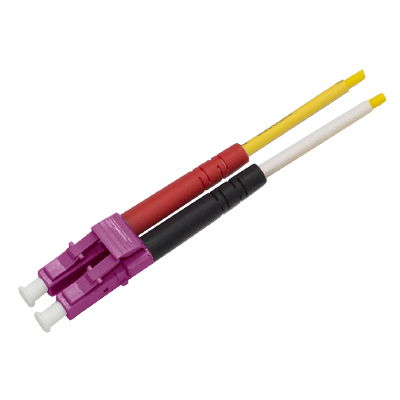

Fiber Optic LC Duplex Connector 2.0mm OM4 Multimode Violet With Clip, Red Black Boots

LC stands for Lucent Connector with 1.25mm ceramic ferrule. LC fiber connector is with a modular jack (RJ) latch mechanism that is easy to operate, namely a snap on (small) square interface. LC fiber optic connectors are very common in single-mode network equipment and generally used in optical transceivers. Because of its anti pull stability and compact size makes it is widely used in high-speed transmission and data centers.

Add to cart

SEND INQUIRY

LiveChat

Description

Description

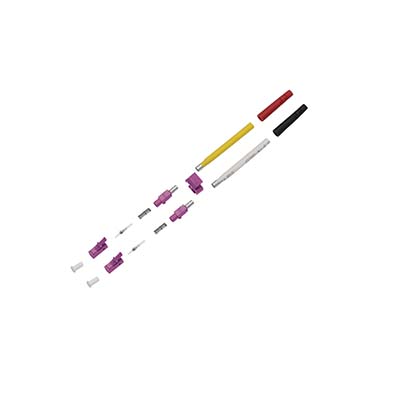

LC Connector 2.0mm Parts:

Dust Cap, Green Outer Housing, Ferrule Assembly, Spring, Small Transparent Tube, Inner Frame, Green Clip, Riveting Ring, Heat Shrink Tube, Red Black Boot

Optical Specification

Parameter	LC Connector
Cable diameter	2.0mm
Fiber count	Duplex
Fiber type	Singlemode			Multimode
Polish mode	PC	UPC	APC	PC
Insertion loss	≤0.25dB	≤0.25dB	≤0.25dB	≤0.25dB
Return loss	≥50dB	≥55dB	≥60dB	/
operating wavelength	1310nm, 1550nm			850nm, 1300nm
Ferrule Concentricity	≤1um			≤4um
Operating temperature	-40~85°C
Durability	>1000times
