Description

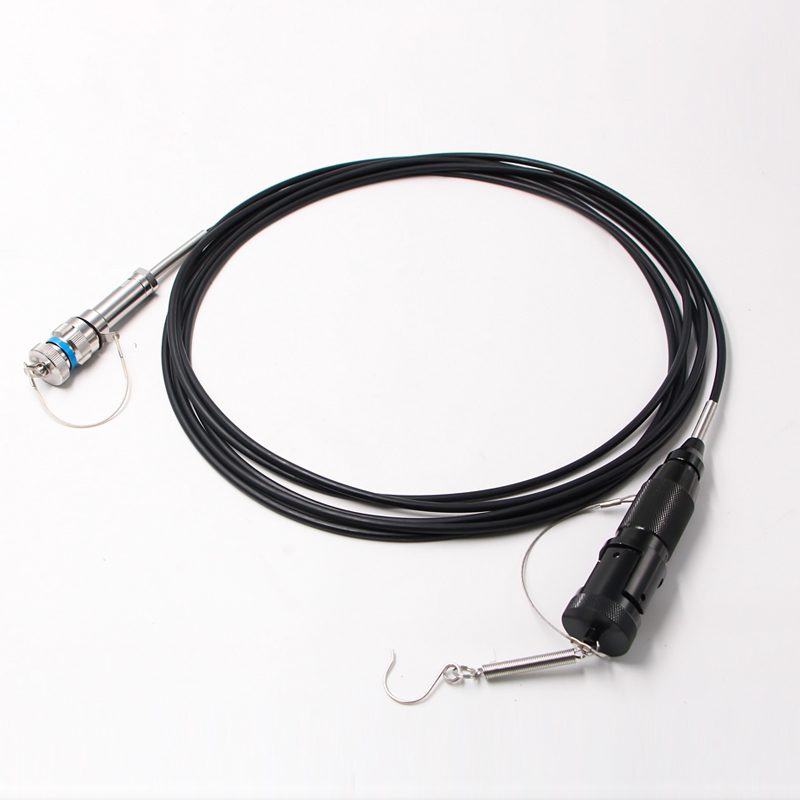

1 Meter Patch Cord Features
- Outer shell can be made of different materials and coatings to meet different environmental requirements
- Five-key positioning, with blind insertion and anti-wrong insertion function
- Three-head threaded quick connection, with anti-loosening mechanism
- Use ceramic pins and sleeves to achieve precise docking of contacts
- A variety of tail variations are available, like J599, SC LC FC ST, etc
- A transfer socket (optional gas seal) is available to get rid of the constraints of optical cables
- Armored field optical cable, spiral stainless steel hose protection, strong pressure resistance, good flexibility, wear resistance and bending resistance
1 Meter Patch Cord Application
- Company standards: Q/21EJ1305 interface size complies with GJB599A
- (MIL-DTL-38999)Ⅲ, performance complies with ARINC801 standard
- Applicable to aviation, electronics, performance, coal mine, ships and other systems, used for multi-channel optical communications
Patchcord Technical parameters
| Item | Fiber patch cord J599 to YG |
| Fiber count | 1 ~12 cores |
| Cable sheath | TPU |
| Insertion loss | Single mode ≤0.4dB, multimode≤0.5dB |
| Return loss | ≥50dB |
| Vibration | 10Hz～2000Hz, power spectrum density 0.4G2/Hz |
| Shock | 2940 m/s2, duration 3ms, velocity change rate 2.96m/s |
| Mechanical life | 500 times |
| Tensile strength | ≥68N (2mm contact jumper) |
| Air tightness (for airtight adapter sockets) | Gas leakage ≤1*10 -9 Pa.m 3 /S Internal and external pressure difference is 1 atmosphere ≥1000h (stainless steel material, aluminum alloy cadmium plating ≥48h (aluminum alloy nickel plating |
| Working temperature | -55 ~+85℃ |
J599 to YG Patch Cord Details

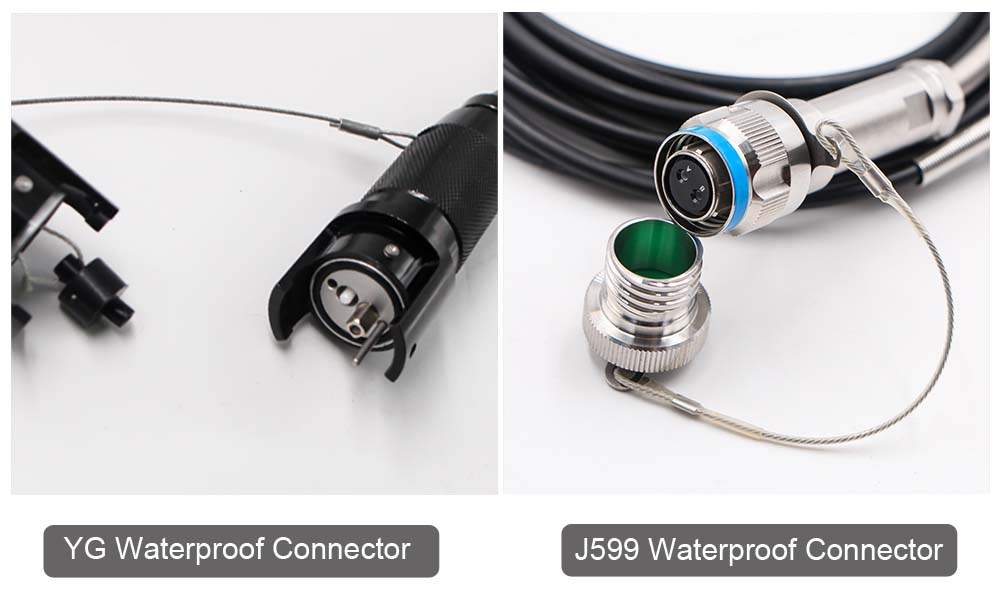

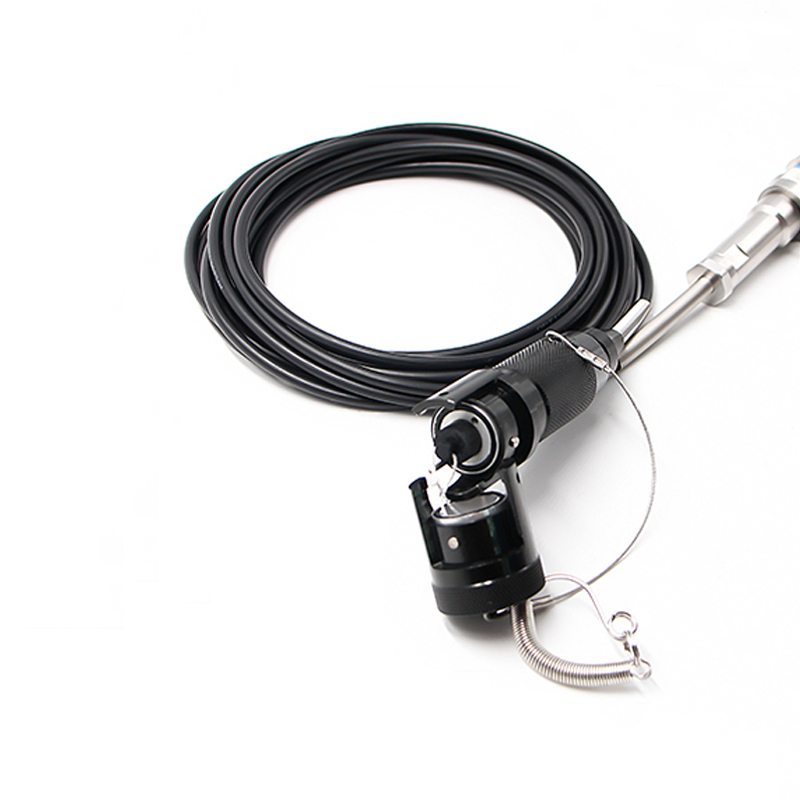

YG waterproof connectors feature a neutral design, allowing for quick blind mating between same type connectors without the need for adapters or flanges.

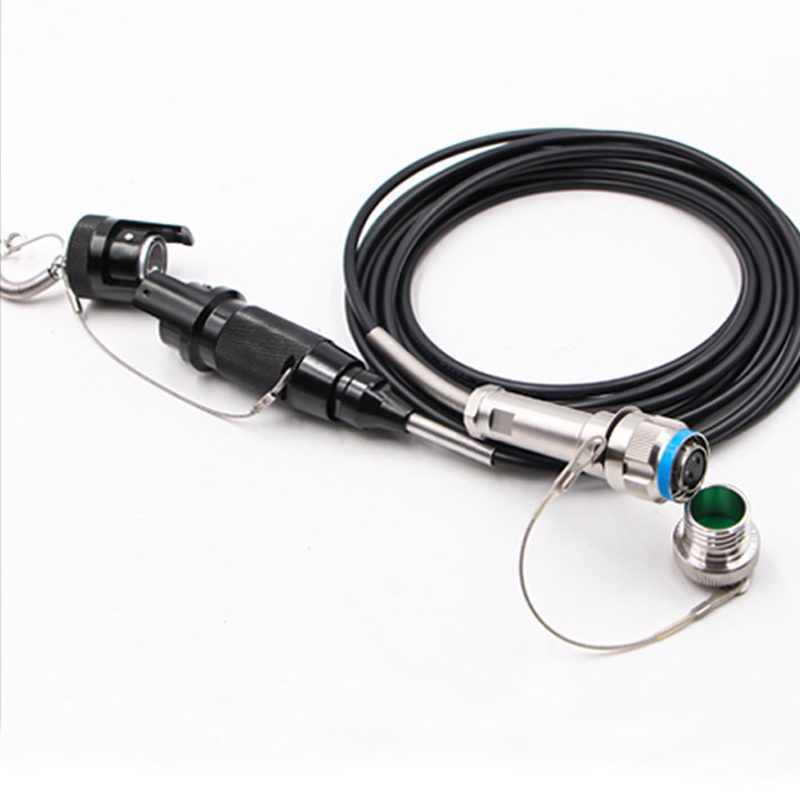

J599 waterproof connector uses a five-key circular identification system for positioning, enabling blind mating and misaligned mating.
The J599 outdoor connector outer casing is made of stainless steel, aluminum, and other materials with coatings to adapt to different environmental requirements.

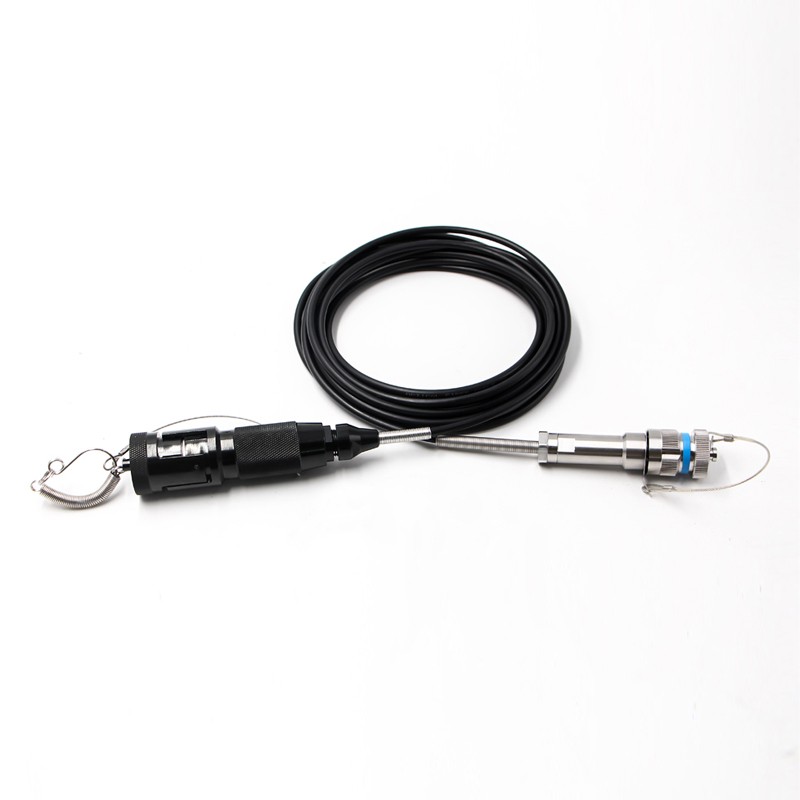

The armored field cable, protected by a small stainless steel flexible tube, features high tensile strength, high compressive strength, good flexibility, and bending resistance.
Thermoplastic polyurethane elastomer and protective sheath provide the optical cable with excellent structural stability and properties such as abrasion resistance, oil resistance, and low-temperature flexibility.
