Description

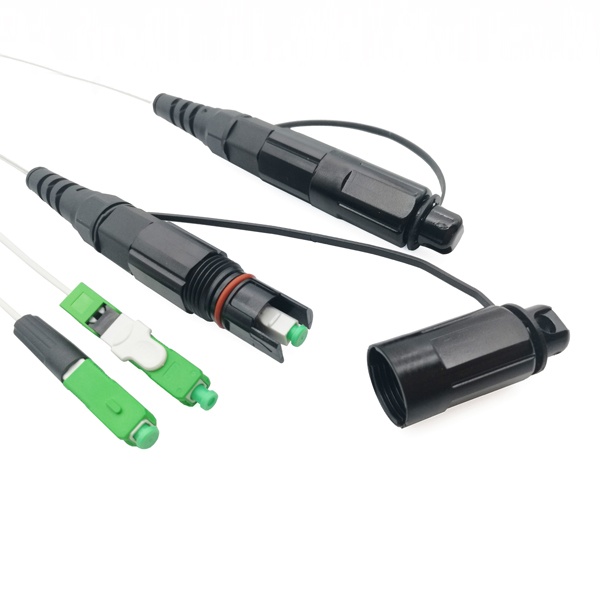

Fiber Optic Patch Cord Connector Types Features
- Cost effective solution for in house termination
- Low insertion loss and added loss
- IP67 waterproof, dust proof and corrosion resistant
- Mechanical performance: IEC 61754-4 standard.
- RoHS and REACH materials compliant.
- Cable diameter: 2.0*3.0mm Ftth drop cable/Round 5.0or 0mm cable available
Waterproof Connector Application
- FTTH & Outdoor Fiber Terminal End
- Harsh Environment
- FTTA BBU RRU
- Data Video Transmission
- Optical Fiber Access Of Mobile Base Station
Technical Specification
| Item | Parameter |
| Cable type | 2*3.0mm flat drop cable, |
| Fiber Diameter | 125μm ( 652 & 657 ) |
| Coating Diameter | 250μm |
| Mode | Single mode |
| Operation Time | about 15s(exclude fiber presetting) |
| Insertion Loss | ≤ 0.3dB(1310nm & 1550nm) |
| Return Loss | ≥ 50dB for UPC, ≥ 55dB for APC |
| Success Rate | >98% |
| Reusable Times | >5 times |
| Tensile Strength | >30 N |
| Temperature | -40 ~ +85 C |
| On-line Tensile Strength Test (20 N) | IL ≤ 0.3dB |
| Mechanical Durability(500 times) | IL ≤ 0.3dB |
| Drop Test(4m concrete floor, once each direction, three times total) | IL ≤ 0.3dB |
