Description
Transparent Cable Features
- With adhesive double tape, facilitating indoor exposed cable roouting
- Transparent optical cable, invisible after fiber installation
- Outer sheath of the cable meets flame-retardant requirements
Invisible Cable Standards
- Test Standard: IEC61753 series, IEC60794 series, ITU-T G.657
- RoHS 2.0Compliant
Transparenet Cable Cross Section
Cable Specification
| Fiber | Count | 1 |
| Type | G.657B3 | |
| Strength member | Material | Bare fiber |
| Outer sheath | Material | Flame-retardant TPU |
| Color | Transparent | |
| Cable diameter (mm) | 1.0*3.0 | |
| Cable length (m) | 10, 15, 20, 25, 30, 40, 50 | |
| Cable Weight (kg/km) | Approximately 6 | |
| Flamability | Meets the vertical flame-retardant requirements of a single cable.Complies with the CPR Eca standard | |
| Maximum Attenuation | 1310nm: 0.37dB/km | |
| 1550nm: 0.24dB/km | ||
Cable Mechanical and Environmental Performance
| Tensile Performance (short-term / long-term, N ) | 50 / 20 | |
| Crush ( short-term, N/100mm ) | 500 | |
| Min. bending radius ( static / dynamic, mm ) | 10 / 20 | |
| Torsion ( N ) | 10 | |
| UV aging test | ISO 4892-2 Requirement | |
| After 96H, the color matching between pristine and aging samples should be less than 12 (ΔE < 12) | ||
| After 500H, the invisible cables on wooden boards, wallpapers, and latex paints should not fall off | ||
| Damp and head aging test | 65°C, 95%RH, 500 hours | |
| After 96H, the color matching between pristine and aging samples should be less than 12 (ΔE < 12) | ||
| After 500H, the invisible cables on wooden boards, wallpapers, and latex paints should not fall off | ||

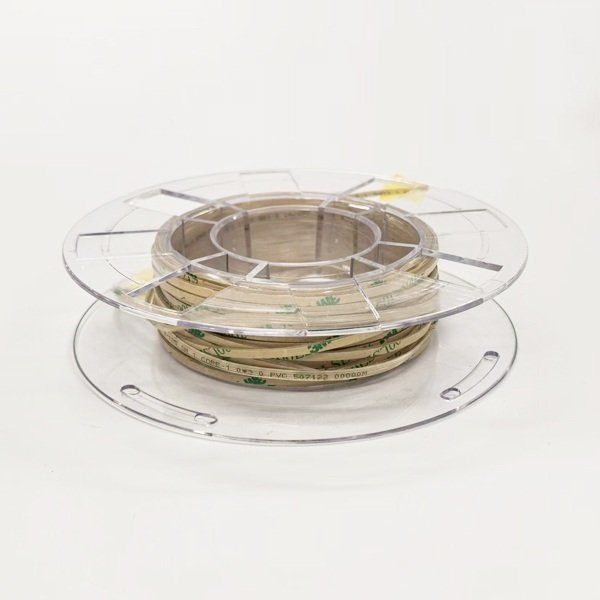

More Details About Transparent Cable
There will be paper tape to protect the both ends of the transparent cable, in case of loosing or fiber breakage,
This specially designed FTTH bow type drop cable is with self adhesive tapes at back, which ease the installation, no need to add glue firstly on the wall surface. The 3M double sided tape is durable and long lasting, best item for FTTR indoor cabling solution.
Yingda support pre-connected fiber optic connectors SC LC in factory at both ends, you can only insert either side into the fiber optic equiment for fast connection, low insertion loss, telecom quality.
