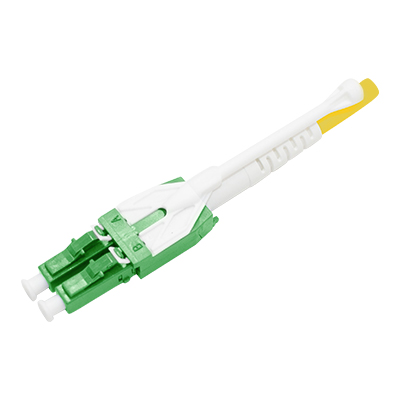

Single mode fiber lc connector UPC duplex SMF, green, with pull rod white

LC stands for Lucent Connector with 1.25mm ceramic ferrule. LC fiber connector is with a modular jack (RJ) latch mechanism that is easy to operate, namely a snap on (small) square interface. LC fiber optic connectors are very common in single-mode network equipment and generally used in optical transceivers. Because of its anti pull stability and compact size makes it is widely used in high-speed transmission and data centers.

Description

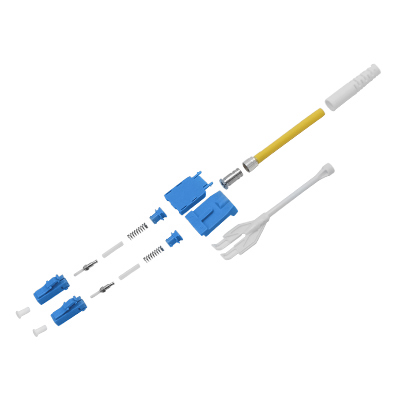

SMF LC Connector with Pull Rod Parts:

Dust Cap, Blue Outer Housing, Ferrule Assembly, Spring, Yellow tube,  Inner Frame, stop, pulling rod, clip, transparent tube, Blue Boot

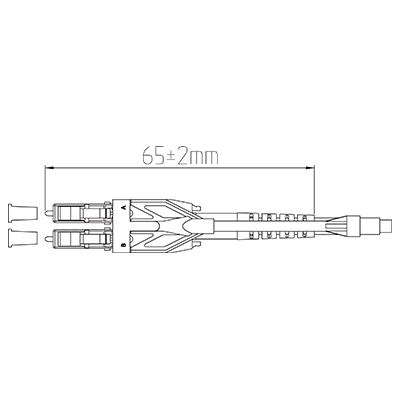

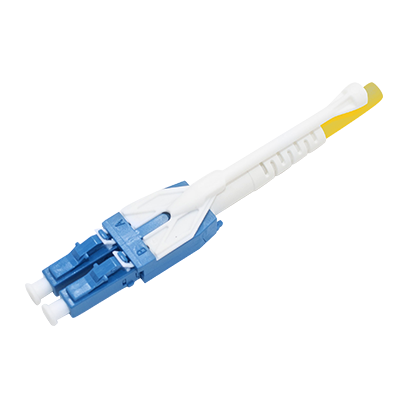

LC fiber connector with pulling rod duplex

Fiber LC Connector Optical Specification

Parameter Fiber LC Connector
Cable diameter 2.0mm
Fiber count  simplex
Fiber type Single mode Multimode
Polish mode PC UPC APC PC
Insertion loss ≤0.25dB ≤0.25dB ≤0.25dB ≤0.25dB
Return loss ≥50dB ≥55dB ≥60dB /
operating wavelength 1310nm, 1550nm 850nm, 1300nm
Ferrule Concentricity ≤1um ≤4um
Operating temperature -40~85°C
Durability >1000times
